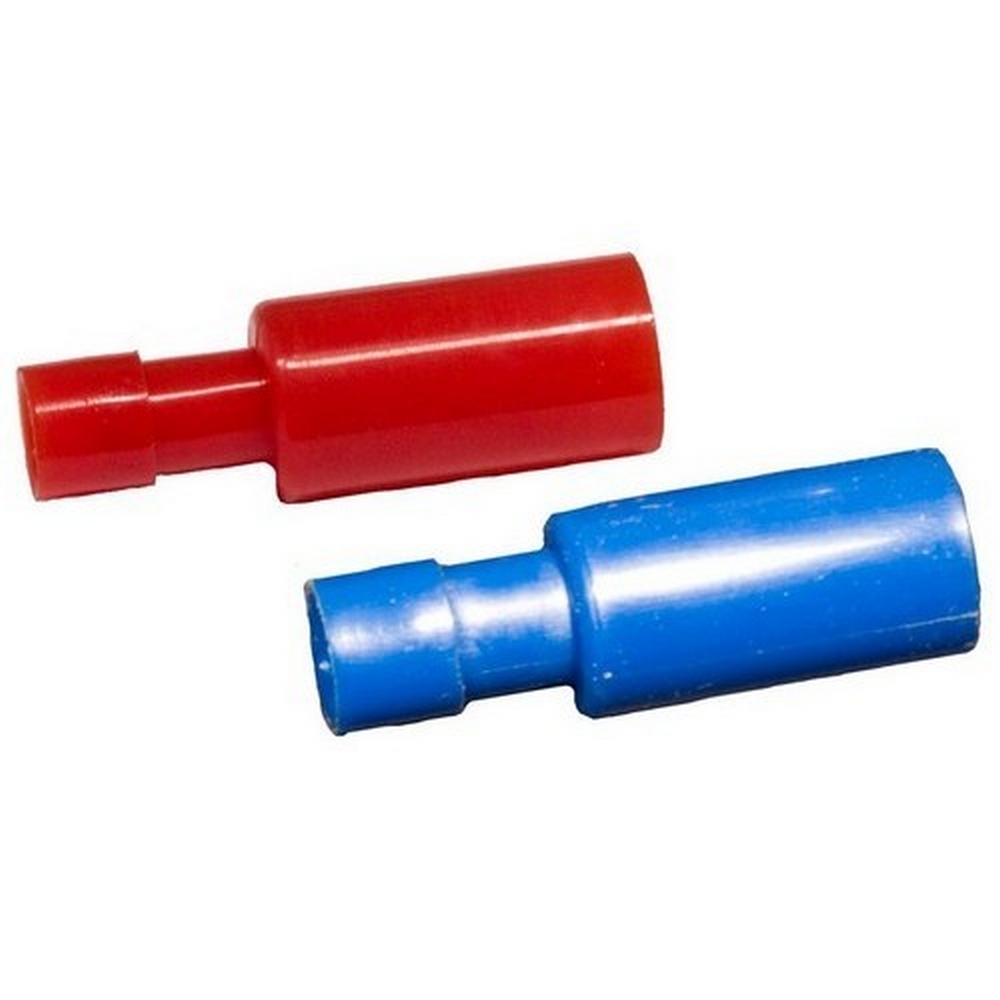

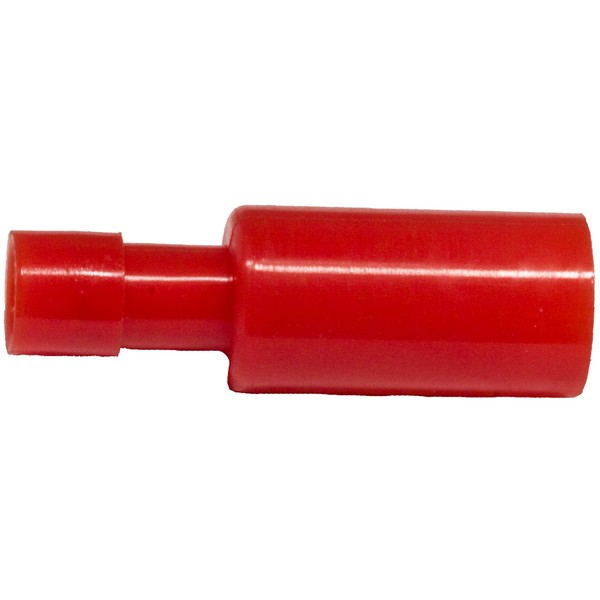

Morris 12062 Nylon Fully Insulated Bullet Disconnects

Morris 12062 Nylon Bullet Disconnects offer a reliable and efficient solution for your electrical connection needs. With a .157" diameter, these fully insulated disconnects are designed for ease of use, featuring color-coded insulation that simplifies identification during installation. Crafted from high-strength brass and electro-tin plated, they provide exceptional corrosion resistance, ensuring longevity in various environments. The easy entry expanded insulation design eliminates strand hang-ups, which increases crimping rates and enhances mechanical strain relief. Each terminal barrel has a butted seam for added durability, while the serrated barrel ensures excellent electrical contact and resistance to pull-out forces. These disconnects are suitable for a range of wire sizes from 22 AWG to 16 AWG, accommodating currents from 3 Amps up to 15 Amps, making them versatile for different applications. Operating at a maximum of 221°F (105°C) and 600 Volts, the Morris 12062 Nylon Bullet Disconnects are cULus listed, meeting stringent safety standards. Ideal for both professional electricians and knowledgeable homeowners, these disconnects provide a dependable connection for residential, commercial, and industrial applications. Trust Morris Products for quality and performance in your electrical projects.

These Nylon Bullet Disconnects are Fully Insulated.

• Manufactured from High Strength Brass
• Maximum Electric Current: 22 AWG - 3 Amps, 20 AWG - 4 Amps, 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps, 12 AWG - 20 Amps, 10 AWG - 24 Amps
• Terminal Barrel has Butted Seam
• cULus Listed
• Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
• 221°F (105°C) 600 Volts Max
• Nylon Fully Insulated Bullet Disconnects in .157" diameter
• Color Coded insulation for easy identification
• Electro-Tin Plated for corrosion resistance
• Easy Entry Expanded Insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
