Morris 12072 Vinyl Insulated Receptacle Disconnects Restock Made Easy

Morris 12072 offers a convenient solution for restocking your Vinyl Insulated Receptacle Disconnects, ensuring that you have high-quality components on hand for your electrical projects. This product features Vinyl Insulated Bullet Receptacle Disconnects available in .154" and .193" diameters, making it versatile for various applications. One of the standout features of the Morris 12072 is its color-coded insulation, which simplifies identification and enhances efficiency during installation. Manufactured from high-strength brass and electro-tin plated, these disconnects provide excellent corrosion resistance, ensuring long-lasting performance in any environment. Designed with user-friendliness in mind, the easy entry expanded insulation reduces strand "hang up," which significantly increases crimping rates and delivers effective mechanical strain relief. Additionally, the terminal barrel features a butted seam and serrated barrel design, providing superior electrical contact while resisting pull-out forces. Rated for a maximum of 167°F (75°C) and capable of handling up to 600 volts, the Morris 12072 supports various wire sizes, accommodating a maximum electric current of 3 to 24 amps depending on the gauge. cULus Listed for safety, this product is a reliable choice for both professionals and knowledgeable homeowners seeking quality electrical components.

An easy way to restock your Vinyl Insulated Receptacle Disconnects.

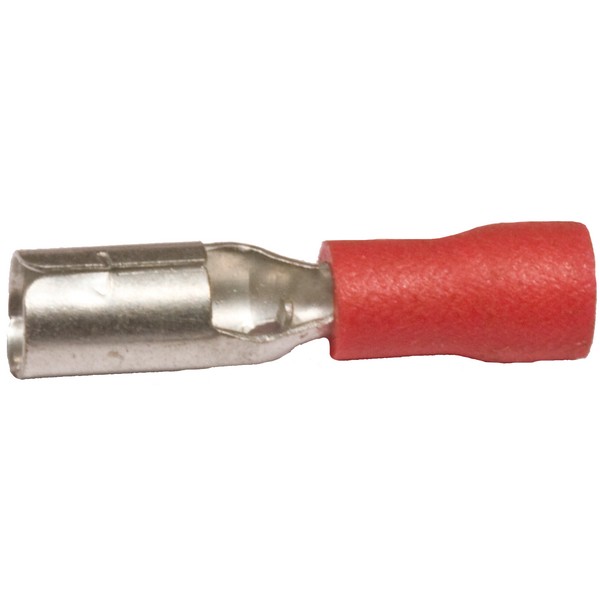

• Vinyl Insulated Bullet Receptacle Disconnects in both .154" and .193" diameters
• Terminal barrel has butted seam
• MAXIMUM ELECTRIC CURRENT: 22 AWG - 3 Amps, 20 AWG - 4 Amps, 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps, 12 AWG - 20 Amps, 10 AWG - 24 Amps
• Color Coded Insulation for easy identification
• Serrated barrel provides excellent electrical contact & resistance to pull-out forces
• cULus Listed
• 167°F (75°C) 600 Volts Max
• Manufactured from high strength brass
• Easy entry expanded insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
• Electro-tin plated for corrosion resistance
