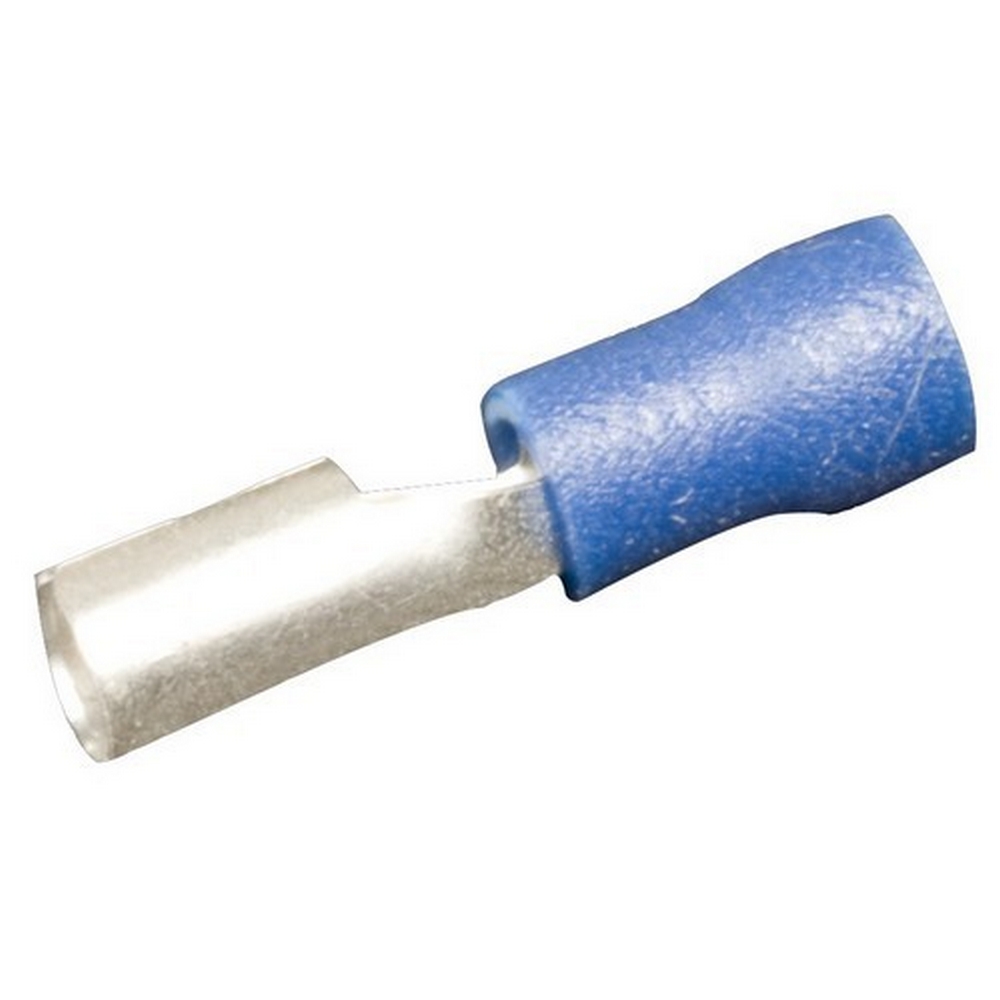

Morris 12074 Vinyl Insulated Receptacle Disconnects Restock Made Easy

Morris 12074 offers a convenient solution for restocking your Vinyl Insulated Receptacle Disconnects, ensuring you have the right components for your electrical needs. Available in both .154" and .193" diameters, these disconnects feature color-coded insulation for effortless identification. Crafted from high-strength brass and electro-tin plated, they resist corrosion, making them reliable for long-term use. Designed with user efficiency in mind, the Morris 12074 includes easy entry expanded insulation that minimizes strand "hang-up," thereby increasing crimping rates and providing mechanical strain relief. The terminal barrel boasts a butted seam and a serrated design, which enhances electrical contact and offers excellent resistance to pull-out forces. These disconnects are rated for a maximum temperature of 167°F (75°C) and can handle up to 600 volts. The maximum electric current ratings vary by wire size: 3 amps for 22 AWG, 4 amps for 20 AWG, 7 amps for 18 AWG, 10 amps for 16 AWG, 15 amps for 14 AWG, 20 amps for 12 AWG, and 24 amps for 10 AWG. cULus listed for safety, the Morris 12074 is an essential addition to any contractor’s toolkit, ensuring quality and performance in every application.

An easy way to restock your Vinyl Insulated Receptacle Disconnects.

• Vinyl Insulated Bullet Receptacle Disconnects in both .154" and .193" diameters
• Terminal barrel has butted seam
• MAXIMUM ELECTRIC CURRENT: 22 AWG - 3 Amps, 20 AWG - 4 Amps, 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps, 12 AWG - 20 Amps, 10 AWG - 24 Amps
• Color Coded Insulation for easy identification
• Serrated barrel provides excellent electrical contact & resistance to pull-out forces
• cULus Listed
• 167°F (75°C) 600 Volts Max
• Manufactured from high strength brass
• Easy entry expanded insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
• Electro-tin plated for corrosion resistance
