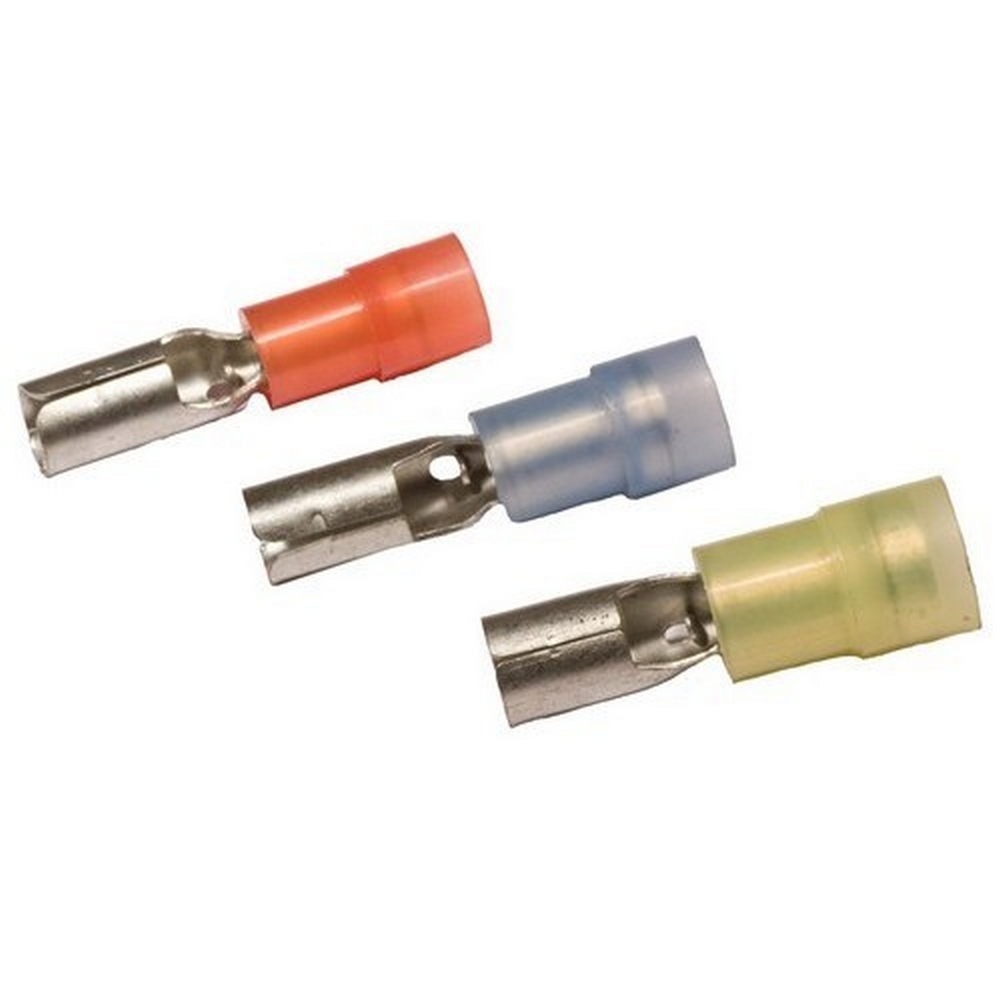

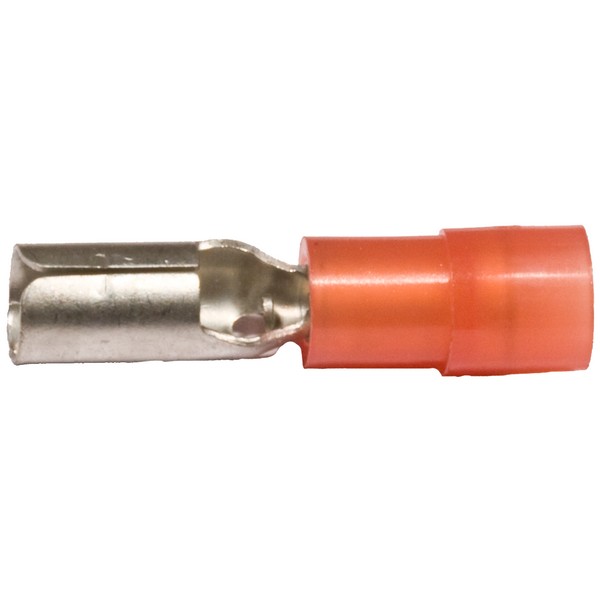

Morris 12082 Nylon Insulated Double Crimp Receptacle Disconnects

Morris 12082 Double Crimp Receptacle Disconnects offer a reliable solution for your electrical connection needs. These nylon insulated disconnects are designed in both .154" and .193" diameters, featuring color-coded insulation for quick and easy identification. Made from high-strength brass and electro-tin plated, these connectors ensure superior corrosion resistance, making them ideal for various applications. The easy entry expanded insulation design eliminates strand "hang up," which enhances crimping efficiency and provides mechanical strain relief. Each terminal barrel is constructed with a butted seam, while the serrated barrel guarantees excellent electrical contact and resistance against pull-out forces. The innovative double crimp extended crimp sleeve allows for multiple crimps, improving both electrical contact and resistance to pull-out forces, ensuring longevity and reliability. With a maximum operating temperature of 221°F (105°C) and a voltage rating of 600 volts, these disconnects can handle a range of wire sizes from 22 AWG up to 10 AWG, accommodating various current ratings from 3 to 24 amps. Additionally, the Morris 12082 is cULus listed, affirming its compliance with safety standards. Trust Morris Products for durable, high-quality electrical components that meet your demanding specifications.

Our Double Crimp Receptacle Disconnects are Nylon Insulated.

• Manufactured from High Strength Brass
• Maximum Electric Current: 22 AWG - 3 Amps, 20 AWG - 4 Amps, 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps, 12 AWG - 20 Amps, 10 AWG - 24 Amps
• Terminal Barrel has Butted Seam
• cULus Listed
• Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
• 221°F (105°C) 600 Volts Max
• Double Crimp Extended Crimp Sleeve provides for multiple crimps resulting in improved electrical contact and pull-out force resistance
• Nylon Insulated Double Crimp Bullet Receptacle Disconnects in both .154" and .193" diameters
• Color Coded insulation for easy identification
• Electro-Tin Plated for corrosion resistance
• Easy Entry Expanded Insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
