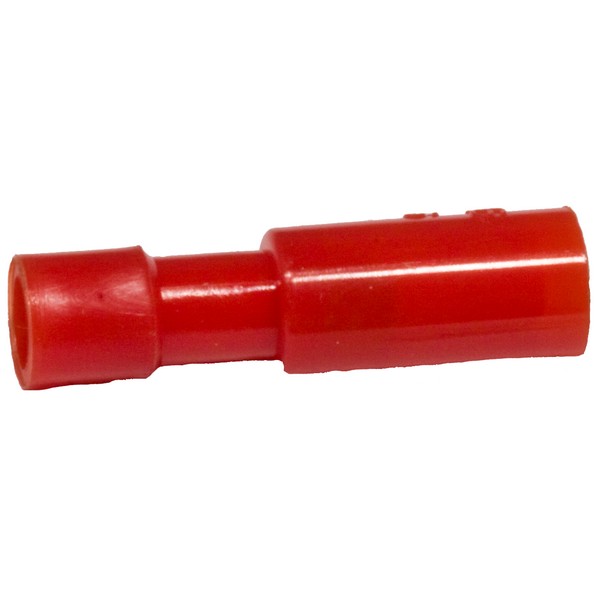

Morris 12092 Nylon Fully Insulated Double Crimp Receptacle Disconnects

Morris 12092 Nylon Fully Insulated Double Crimp Receptacle Disconnects are designed to make your wiring projects efficient and reliable. Available in two diameters-.154" and .193"-these disconnects feature color-coded insulation, allowing for quick identification during installation or repairs. Crafted from high-strength brass and electro-tin plated, they offer excellent corrosion resistance, ensuring longevity in various environments. The innovative easy entry expanded insulation helps prevent strand "hang up," which enhances crimping speeds and ensures mechanical strain relief. With a terminal barrel constructed with a butted seam and a serrated barrel design, these disconnects provide superior electrical contact and resist pull-out forces effectively. The double crimp extended crimp sleeve results in multiple crimps, further enhancing electrical contact and pull-out force resistance. Rated for a maximum of 600 volts and temperatures up to 221°F (105°C), these disconnects accommodate wire sizes from 22 AWG to 10 AWG, with varying current ratings from 3 to 24 amps. Additionally, they are cULus listed for added peace of mind. Morris 12092 is an essential component for any professional or knowledgeable DIY enthusiast looking to ensure safe and efficient electrical connections.

You'll love working with our Nylon Fully Insulated Double Crimp Receptacle Disconnects.

• Manufactured from High Strength Brass
• Maximum Electric Current: 22 AWG - 3 Amps, 20 AWG - 4 Amps, 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps, 12 AWG - 20 Amps, 10 AWG - 24 Amps
• Color Coded Insulation for easy identification
• Terminal Barrel has Butted Seam
• cULus Listed
• Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
• 221°F (105°C) 600 Volts Max
• Nylon Fully Insulated Double Crimp Bullet Receptacle Disconnects in both .154" and .193" diameters
• Double Crimp Extended Crimp Sleeve provides for multiple crimps resulting in improved electrical contact and pull-out force resistance
• Electro-Tin Plated for corrosion resistance
• Easy Entry Expanded Insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
