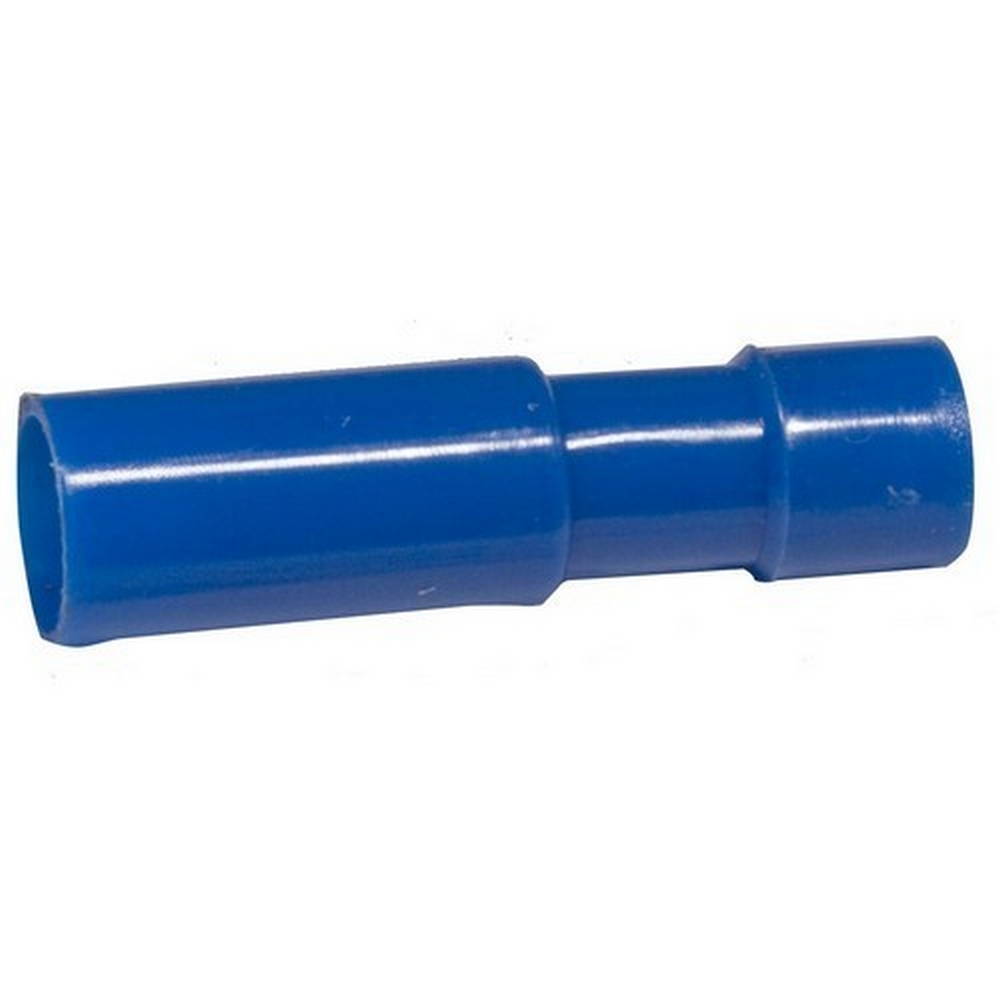

Morris 12094 Nylon Fully Insulated Double Crimp Receptacle Disconnects

Morris 12094 Nylon Fully Insulated Double Crimp Receptacle Disconnects offer a reliable and efficient solution for your electrical connection needs. These disconnects come in both .154" and .193" diameters, ensuring flexibility for various applications. The color-coded insulation simplifies identification, allowing for quick and accurate installation. Constructed from high-strength brass and electro-tin plated for corrosion resistance, these disconnects are built to last. The innovative Easy Entry Expanded Insulation design prevents strand "hang up," enhancing crimping rates and providing mechanical strain relief. With a terminal barrel featuring a butted seam and a serrated barrel, these disconnects ensure excellent electrical contact and strong resistance to pull-out forces. The Double Crimp Extended Crimp Sleeve allows for multiple crimps, further improving electrical contact and pull-out force resistance. Rated for a maximum of 600 volts and operating temperatures up to 221°F (105°C), these disconnects accommodate a range of wire sizes, from 16 AWG at 10 amps to 12 AWG at 20 amps. cULus Listed for safety and compliance, the Morris 12094 is a dependable choice for both professionals and knowledgeable homeowners. Upgrade your electrical projects with these durable and efficient receptacle disconnects today.

You'll love working with our Nylon Fully Insulated Double Crimp Receptacle Disconnects.

• Manufactured from High Strength Brass
• Maximum Electric Current: 22 AWG - 3 Amps, 20 AWG - 4 Amps, 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps, 12 AWG - 20 Amps, 10 AWG - 24 Amps
• Color Coded Insulation for easy identification
• Terminal Barrel has Butted Seam
• cULus Listed
• Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
• 221°F (105°C) 600 Volts Max
• Nylon Fully Insulated Double Crimp Bullet Receptacle Disconnects in both .154" and .193" diameters
• Double Crimp Extended Crimp Sleeve provides for multiple crimps resulting in improved electrical contact and pull-out force resistance
• Electro-Tin Plated for corrosion resistance
• Easy Entry Expanded Insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
