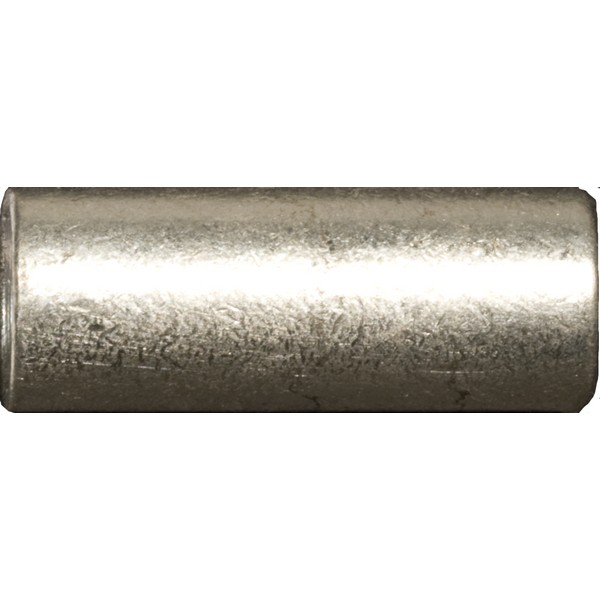

Morris 12115 Non-Insulated Butt Splice Connectors for Electrical Splicing

Morris 12115 Non-Insulated Butt Splice Connectors offer a reliable solution for electrical splicing, designed to meet the demands of both residential and commercial applications. Constructed from electrolytic tubular copper, these connectors ensure optimal conductivity and strength. The electro-tin plating provides superior corrosion resistance, enhancing the longevity of your electrical connections. This butt splice connector features a center wire stop barrier, which simplifies installation by ensuring accurate wire alignment and secure connections. With a maximum electric current rating that accommodates various wire sizes, these connectors support a range of applications: from 5.5 amps for 26 AWG wire to an impressive 125 amps for 4 AWG wire. This versatility makes the Morris 12115 an excellent choice for any project requiring dependable performance. Designed to withstand high temperatures, these connectors operate up to 302°F (150°C) and are rated for a maximum of 600 volts, making them suitable for demanding environments. Furthermore, they are cULus listed, ensuring compliance with safety standards. Morris 12115 Non-Insulated Butt Splice Connectors are an essential addition to your electrical toolkit, delivering quality and reliability for all your splicing needs.

Non-Insulated Butt Splice Connectors for electrical splicing.

• Non-Insulated Butt Splice Connector Material: Electrolytic Tubular Copper
• Maximum Electric Current: 26 AWG - 5.5 Amps, 24 AWG - 7 Amps, 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps, 8 AWG - 70 Amps, 6 AWG - 95 Amps, 4 AWG - 125 Amps
• 302°F(150°C) 600 Volts Max
• Butt Splice Wiring Connector is cULus Listed
• Electro-Tin Plated for corrosion resistance
• Splice Connector has Center Wire Stop Barrier
