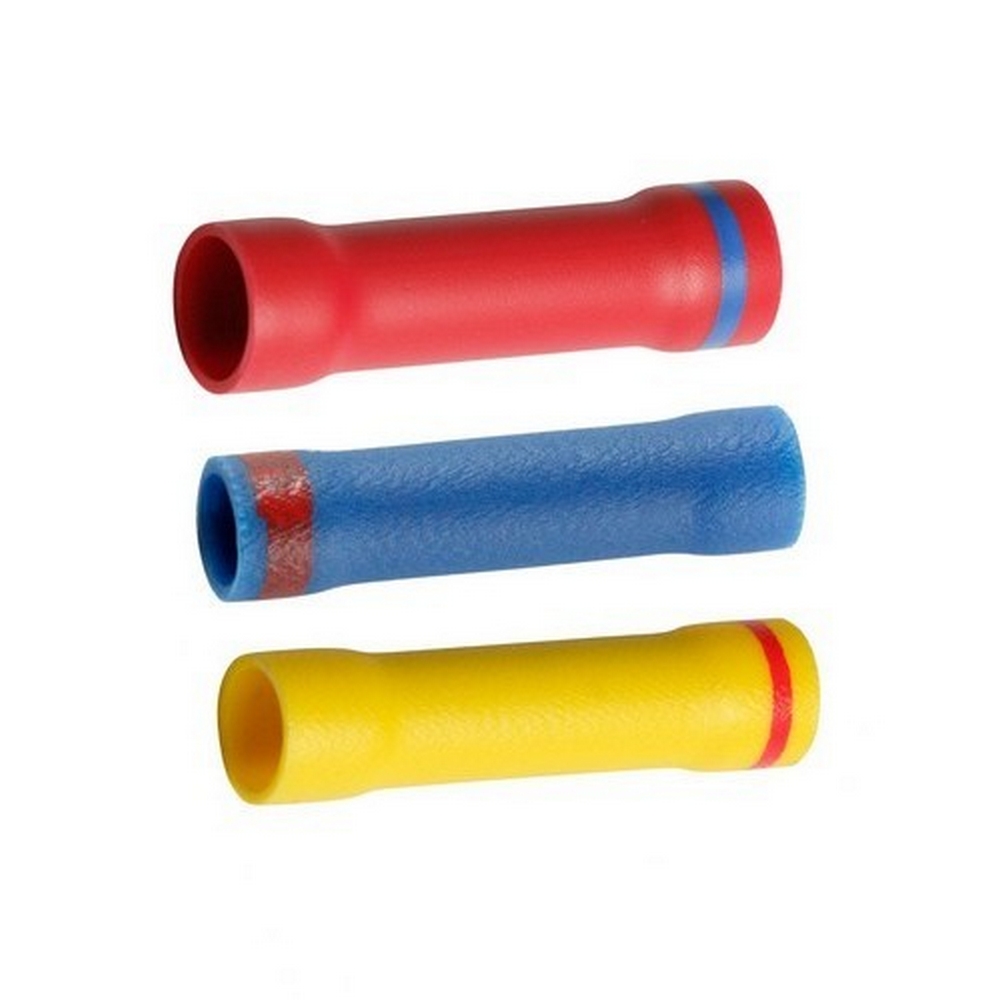

Morris 12135 Vinyl Insulated Reducing Butt Splice Connectors for Electrical Cable

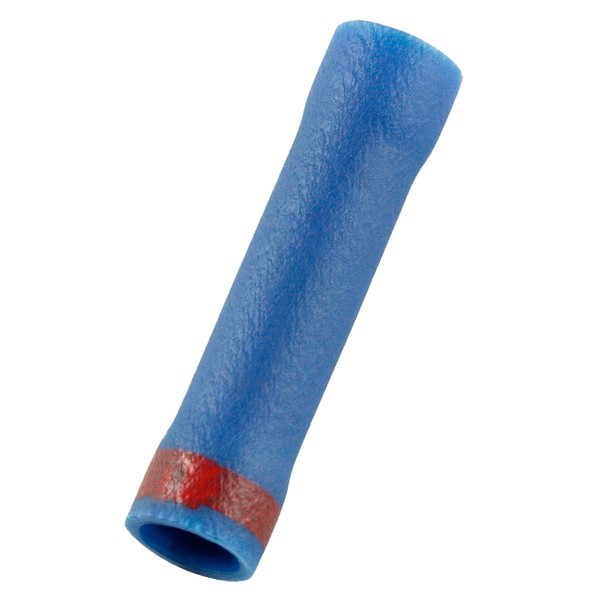

Morris 12135 Vinyl Insulated Reducing Butt Splice Connectors are expertly designed for efficient electrical cable splicing in a range of applications. These connectors feature a unique step-down barrel that facilitates a seamless transition from larger to smaller conductors, making in-line splicing straightforward and reliable. Constructed from electrolytic tubular copper, these connectors ensure optimal conductivity while being electro-tin plated to provide superior corrosion resistance. Each connector is equipped with a center wire stop barrier, which helps maintain proper alignment during installation, ensuring a secure connection every time. The Morris 12135 connectors can handle a maximum electric current ranging from 5.5 amps for 26 AWG conductors up to 125 amps for 4 AWG conductors, accommodating a wide variety of wiring needs. With a maximum temperature rating of 167°F (75°C) and a voltage capacity of 600 volts, these connectors are built to withstand demanding environments. cULus listed for safety and reliability, the connectors come in a distinctive blue color with a red ring for easy identification. Designed to work with wire ranges from 16-14 to 22-16, these butt splice connectors are an essential addition to any electrical toolkit, ensuring you have the right solution for reducing splices in your projects.

Vinyl Insulated Reducing Butt Splice Connectors for electrical cable reducing splices.

• Has Center Wire Stop Barrier
• Features a Step-Down Barrel that allows for Transition from Larger to Smaller Conductor with simple In-Line Splice
• 167°F(75°C) 600 Volts Max
• cULus Listed
• Electrolytic Tubular Copper
• Electro-Tin Plated for corrosion resistance
• Maximum Electric Curent: 26 AWG - 5.5 Amps, 24 AWG - 7 Amps, 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps, 8 AWG - 70 Amps, 6 AWG - 95 Amps, 4 AWG - 125 Amps

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
