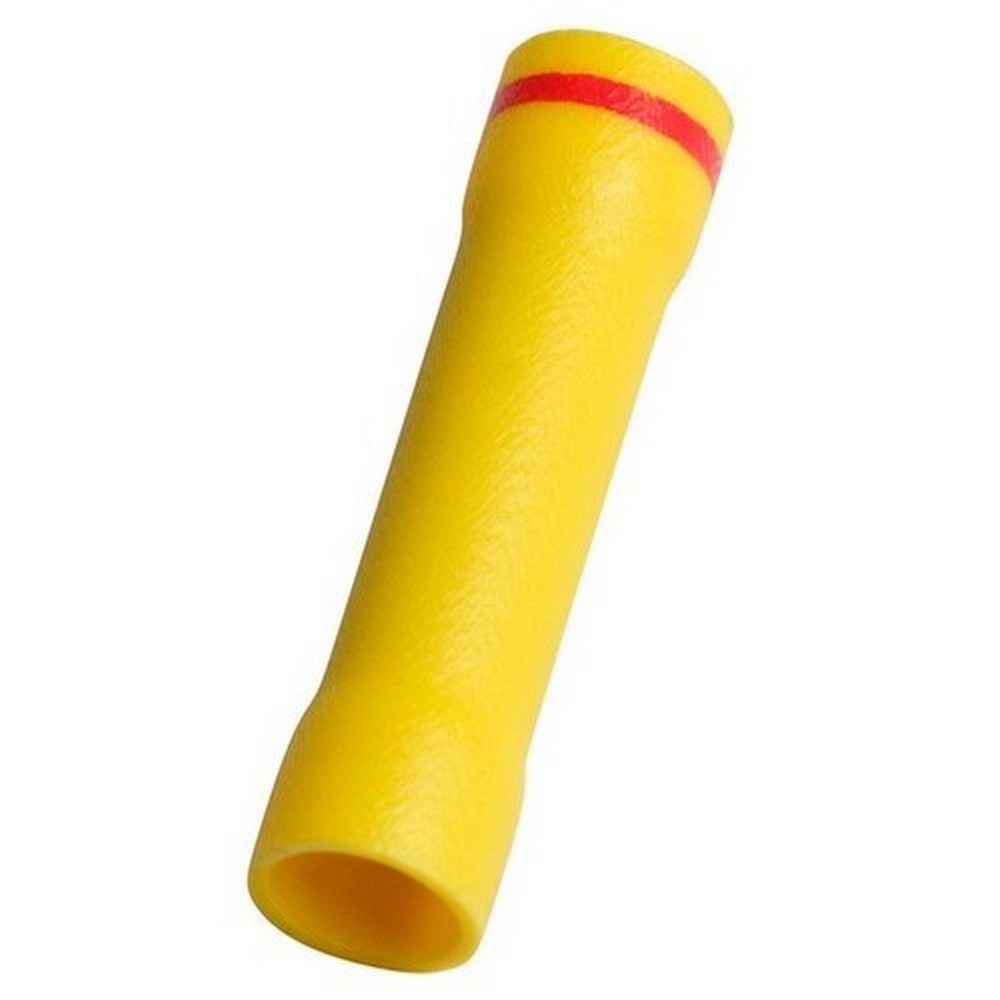

Morris 12136 Vinyl Insulated Reducing Butt Splice Connectors for Electrical Cables

Morris 12136 Vinyl Insulated Reducing Butt Splice Connectors are engineered for efficient electrical cable splicing, specifically designed to facilitate transitions from larger to smaller conductors with ease. The step-down barrel ensures a simple in-line splice, making your wiring tasks more straightforward. Constructed from electrolytic tubular copper and electro-tin plated, these connectors offer enhanced corrosion resistance, ensuring long-lasting performance in various environments. The connectors feature a center wire stop barrier, ensuring secure and reliable connections. With a maximum electric current rating that accommodates a wide range of wire gauges-from 12 AWG at 35 amps to 4 AWG at 125 amps-these connectors are versatile enough to handle your diverse electrical needs. They are rated for 600 volts max and can withstand temperatures up to 167°F (75°C), making them suitable for both residential and commercial applications. cULus listed for safety and reliability, the Morris 12136 connectors come in a vibrant yellow with a red ring for easy identification. Each connector is designed to work with wire ranges from 12-10 AWG to 22-16 AWG. Choose Morris Products for quality, durability, and peace of mind in your electrical projects.

Vinyl Insulated Reducing Butt Splice Connectors for electrical cable reducing splices.

• Has Center Wire Stop Barrier
• Features a Step-Down Barrel that allows for Transition from Larger to Smaller Conductor with simple In-Line Splice
• 167°F(75°C) 600 Volts Max
• cULus Listed
• Electrolytic Tubular Copper
• Electro-Tin Plated for corrosion resistance
• Maximum Electric Curent: 26 AWG - 5.5 Amps, 24 AWG - 7 Amps, 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps, 8 AWG - 70 Amps, 6 AWG - 95 Amps, 4 AWG - 125 Amps

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
