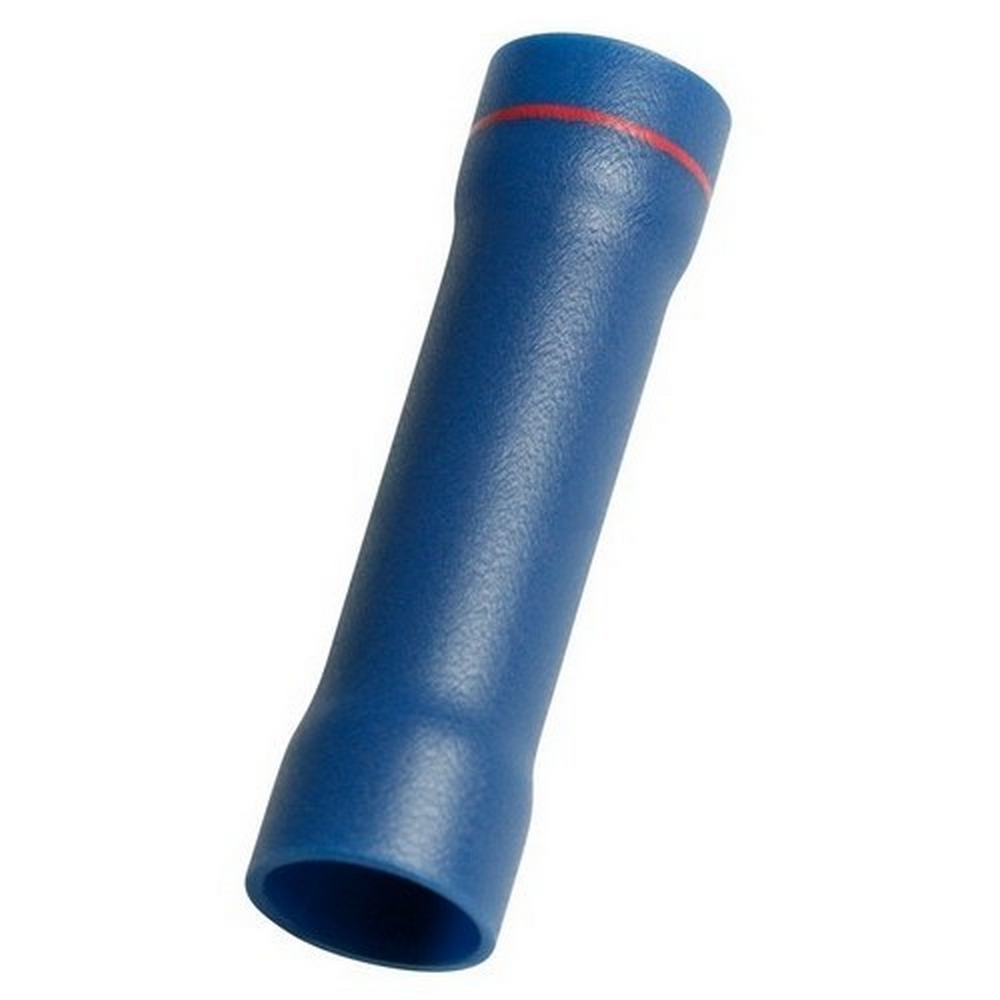

Morris 12140 Vinyl Insulated Reducing Butt Splice Connectors for Electrical Cables

Morris 12140 Vinyl Insulated Reducing Butt Splice Connectors provide a reliable solution for electrical cable reducing splices. Designed with a step-down barrel, these connectors facilitate a seamless transition from larger to smaller conductors, enabling simple in-line splicing that saves time and enhances efficiency. Crafted from electrolytic tubular copper, they ensure excellent conductivity and durability. The connectors feature an electro-tin plating that offers corrosion resistance, making them suitable for various environments. A center wire stop barrier is integrated to ensure secure connections, maintaining the integrity of your electrical systems. With a maximum current capacity ranging from 5.5 amps for 26 AWG to 125 amps for 4 AWG, these connectors accommodate a wide range of wire sizes, from #6 to #8. Rated for a maximum temperature of 167°F (75°C) and a voltage of 600 volts, Morris 12140 connectors are cULus listed, ensuring they meet industry safety standards. Available in a striking blue color with a red ring, they are easily identifiable on any job site. Ideal for both residential and commercial applications, these connectors combine convenience and performance, making them a must-have for any electrical professional's toolkit.

Vinyl Insulated Reducing Butt Splice Connectors for electrical cable reducing splices.

• Has Center Wire Stop Barrier
• Features a Step-Down Barrel that allows for Transition from Larger to Smaller Conductor with simple In-Line Splice
• 167°F(75°C) 600 Volts Max
• cULus Listed
• Electrolytic Tubular Copper
• Electro-Tin Plated for corrosion resistance
• Maximum Electric Curent: 26 AWG - 5.5 Amps, 24 AWG - 7 Amps, 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps, 8 AWG - 70 Amps, 6 AWG - 95 Amps, 4 AWG - 125 Amps
