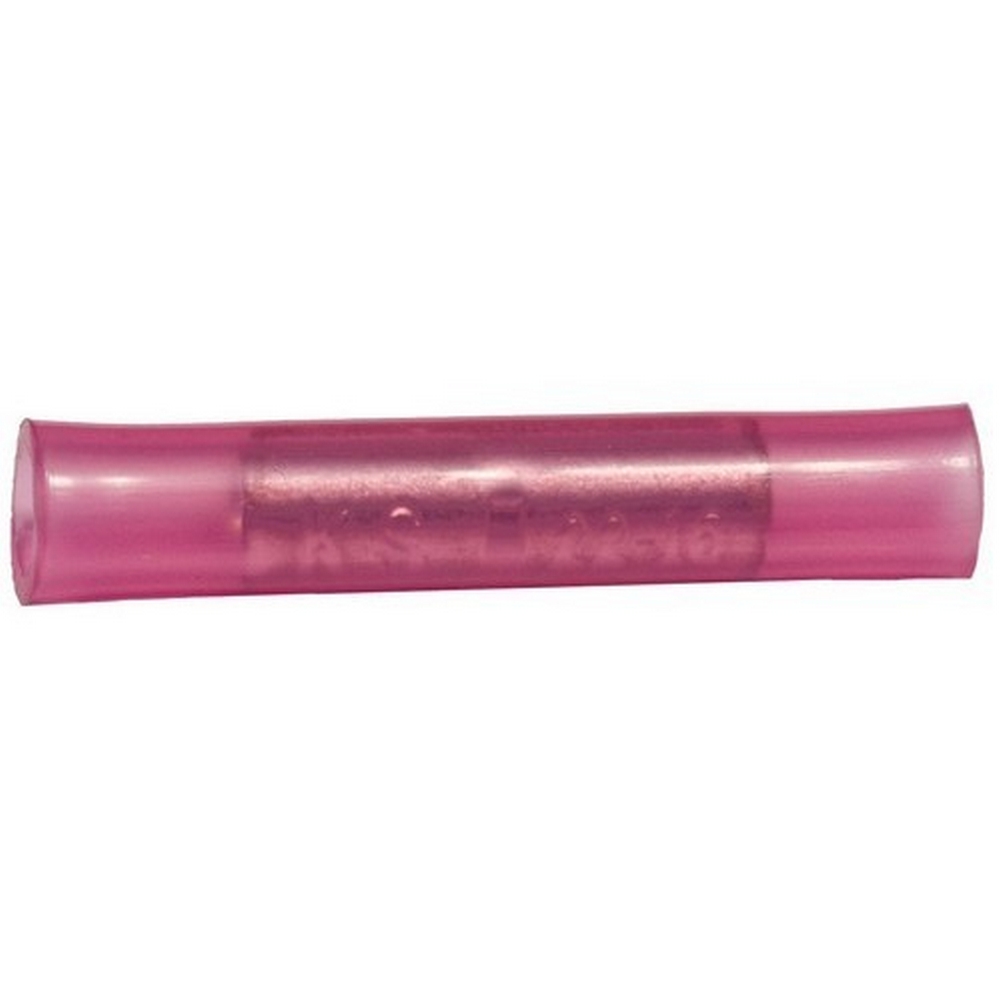

Morris 12144 Nylon Insulated Butt Splice Connectors for Electrical Wiring

Morris 12144 Nylon Insulated Butt Splice Connectors provide a reliable solution for electrical wire splicing, designed for both professional electricians and savvy DIYers. Crafted from high-strength electrolytic tubular copper, these connectors ensure excellent conductivity and durability. The electro-tin plating adds an extra layer of corrosion resistance, making them suitable for various environments. Featuring a center wire stop barrier, these connectors simplify the splicing process by guiding the wires into place, while the color-coded insulation allows for quick identification, saving you time on the job. The easy entry expanded insulation reduces strand "hang-up," which enhances crimping efficiency and provides essential mechanical strain relief. These connectors support a maximum electric current rated for various wire sizes, accommodating from 5.5 amps at 26 AWG to a robust 50 amps at 10 AWG, with a temperature rating of 221°F (105°C) and a maximum voltage of 600 volts. Additionally, they are cULus listed, ensuring compliance with safety standards. With the Morris 12144 connectors, you can expect a dependable performance that meets the demands of any residential, commercial, or industrial application. Perfect for any wiring project, these connectors are a must-have in your electrical toolkit.

Nylon Insulated Butt Splice Connectors for Electrical Wire Splicing.

• Has Center Wire Stop Barrier
• Color Coded Insulation for easy identification
• cULus Listed
• 221°F(105°C) 600 Volts Max
• High Strength Electrolytic Tubular Copper
• Maximum Electric Current: 26 AWG - 5.5 Amps, 24 AWG - 7 Amps, 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps
• Electro-Tin Plated for corrosion resistance
• Easy Entry Expanded Insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
