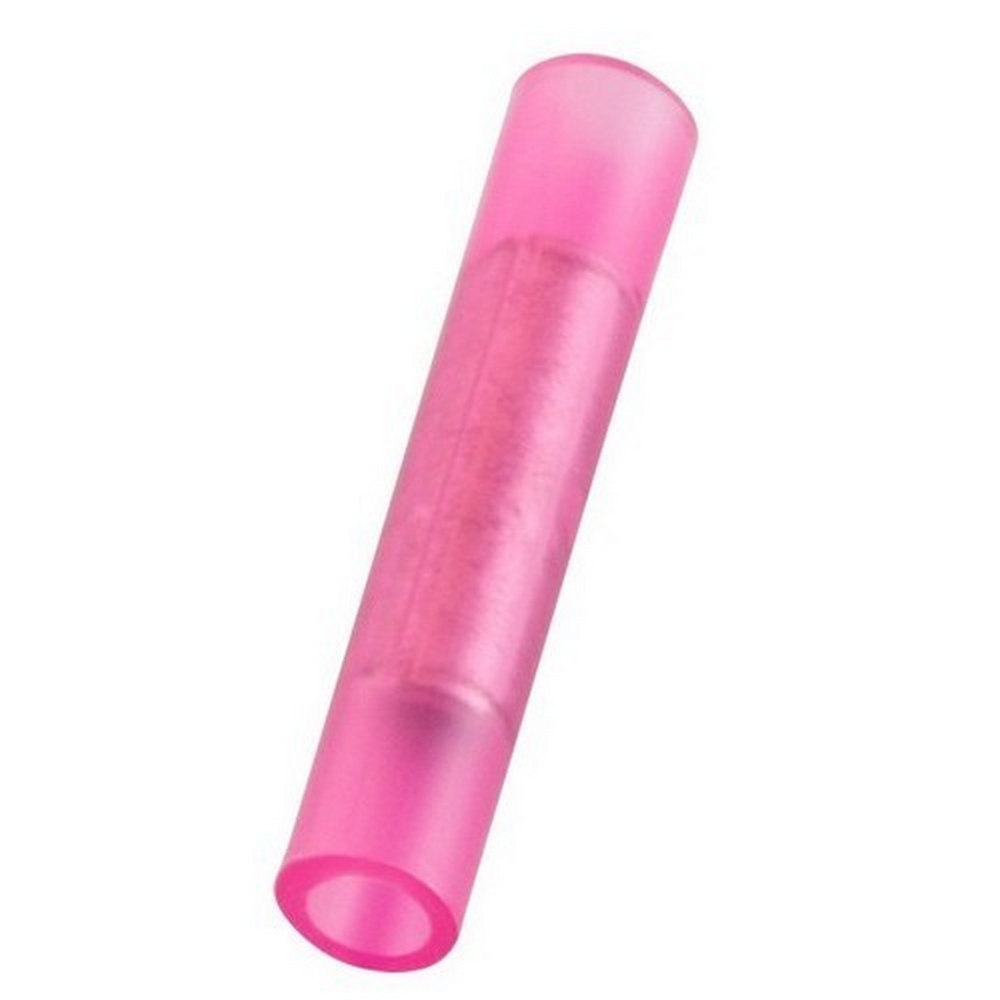

Morris 12149 Nylon Insulated Butt Splice Connectors for Electrical Wiring

Morris 12149 Nylon Insulated Butt Splice Connectors are the ideal solution for secure and efficient electrical wire splicing. Constructed from high-strength electrolytic tubular copper, these connectors ensure reliable conductivity and performance. The electro-tin plating offers excellent corrosion resistance, enhancing the longevity of your electrical connections even in challenging environments. Designed with a center wire stop barrier, the Morris 12149 connectors facilitate a precise and secure splice, preventing any unwanted movement of the wire. The color-coded insulation simplifies identification, making installation quick and hassle-free. An innovative easy entry expanded insulation feature reduces strand "hang up," boosting crimping rates while providing essential mechanical strain relief. These connectors support a wide range of wire sizes, with maximum electric currents ranging from 5.5 amps for 26 AWG to 50 amps for 10 AWG, and are rated to operate effectively at temperatures up to 221°F (105°C) with a maximum voltage of 600 volts. Certified by cULus, you can trust the safety and quality of these connectors for all your residential, commercial, and industrial applications. Choose Morris 12149 for dependable electrical connections that stand the test of time.

Nylon Insulated Butt Splice Connectors for Electrical Wire Splicing.

• Has Center Wire Stop Barrier
• Color Coded Insulation for easy identification
• cULus Listed
• 221°F(105°C) 600 Volts Max
• High Strength Electrolytic Tubular Copper
• Maximum Electric Current: 26 AWG - 5.5 Amps, 24 AWG - 7 Amps, 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps
• Electro-Tin Plated for corrosion resistance
• Easy Entry Expanded Insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
