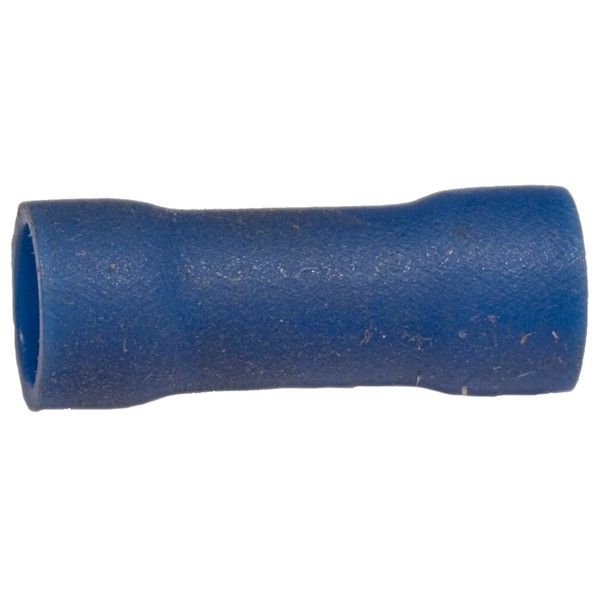

Morris 12164 Vinyl Insulated Parallel Electrical Connectors for Splices

Morris 12164 Vinyl Insulated Parallel Connectors are essential for reliable electrical splices in various applications. Crafted from high-strength electrolytic tubular copper, these connectors ensure excellent conductivity and durability. The electro-tin plating provides enhanced corrosion resistance, making them suitable for long-term use in demanding environments. Designed for ease of use, these connectors feature color-coded insulation for quick and easy identification, streamlining your installation process. The easy entry expanded insulation eliminates strand "hang up," which not only increases crimping rates but also provides mechanical strain relief, ensuring a secure connection. These connectors can handle a maximum electric current ranging from 9 Amps for 22 AWG wire to 50 Amps for 10 AWG wire, with a temperature rating of 167°F (75°C) and a maximum voltage of 600 volts. The Morris 12164 connectors are cULus listed, ensuring they meet rigorous safety and performance standards. Packaged for convenience, these connectors ship via UPS and are available in a vibrant blue color. Please note a warning regarding cancer and reproductive harm. With a wire size compatibility of 16-14 AWG, Morris 12164 Vinyl Insulated Parallel Connectors are a versatile and essential addition to your electrical supply toolkit, making your next project easier and safer.

Vinyl Insulated Parallel Connectors for electrical splices.

• 167°F(75°C) 600 Volts Max
• cULus Listed<
• High Strength Electrolytic Tubular Copper
• Color Coded insulation for easy identification
• Maximum Electric Current: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps
• Electro-Tin Plated for corrosion resistance
• Easy Entry Expanded Insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
