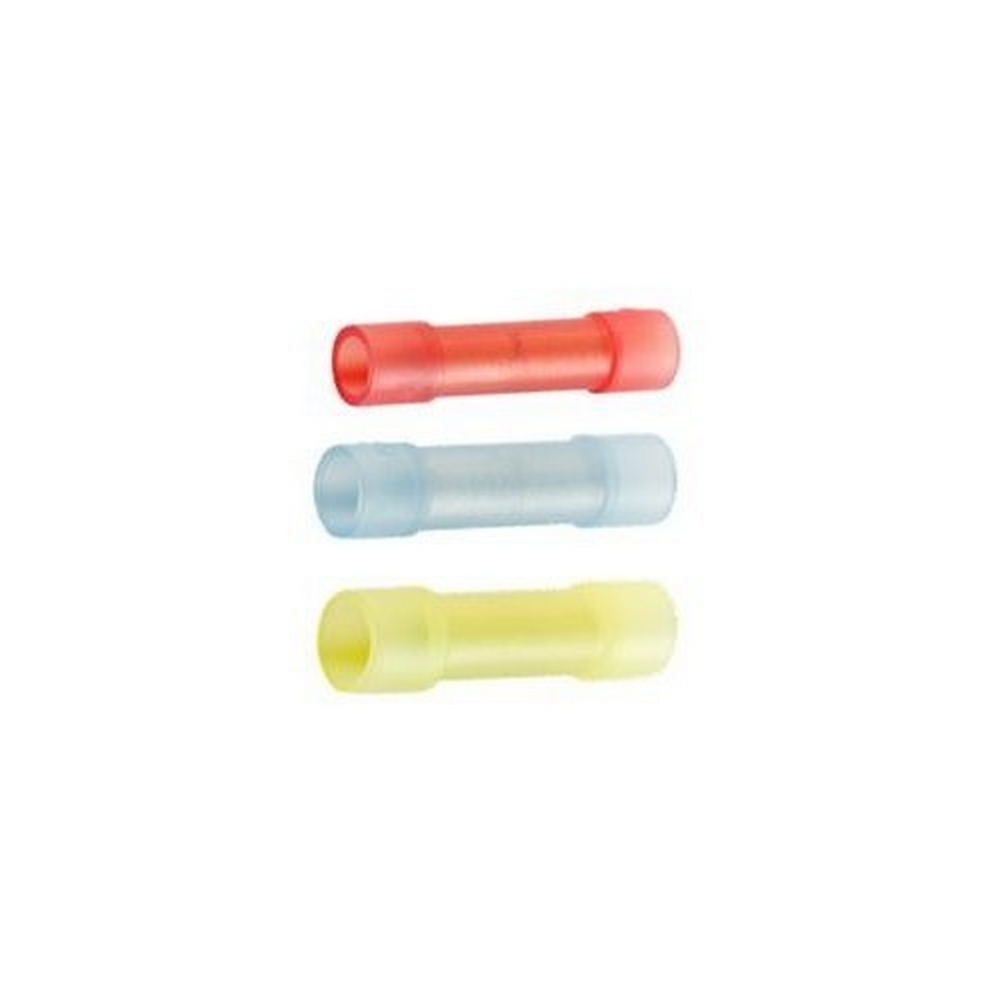

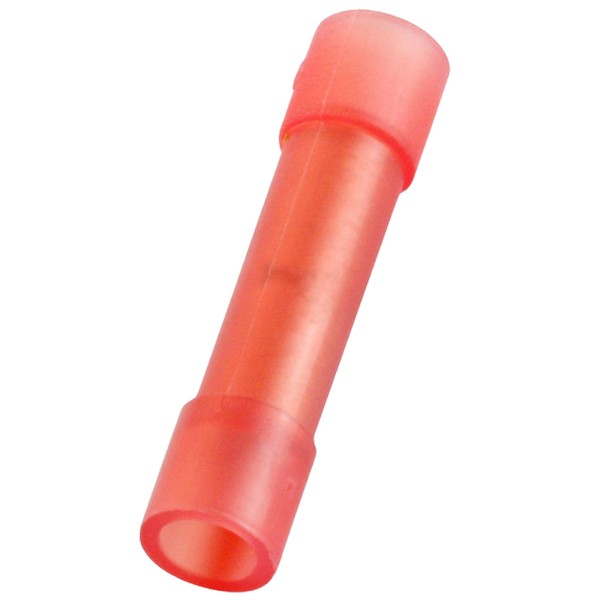

Morris 12192 Nylon Insulated Butt Splice Connectors with Flared Entry

Morris 12192 Nylon Insulated Butt Splice Connectors are expertly designed to ensure reliable electrical connections in a variety of applications. Crafted from high-strength electrolytic tubular copper and electro-tin plated for corrosion resistance, these connectors guarantee durability and longevity. The innovative flared entry allows for easy insertion of wire, while the center wire stop barrier enhances the connection's integrity. Color-coded insulation simplifies identification, making it easier for professionals to select the right connector for their needs. The expanded insulation design eliminates strand "hang up," which increases crimping rates and provides effective mechanical strain relief. With a maximum electric current rating that accommodates various wire gauges-up to 50 Amps for 10 AWG wire-these connectors meet the demands of both residential and commercial projects. Operating safely at temperatures up to 221°F (105°C) and boasting a maximum voltage of 600 Volts, the Morris 12192 connectors are cULus listed, ensuring compliance with industry standards. Suitable for wire sizes ranging from 22 AWG to 16 AWG, these connectors are a versatile choice for any electrical project. Choose Morris for quality you can trust and performance you can count on.

Nylon Insulated Butt Splice Connectors with Flared Entry for easy insertion of wire.

• Has Center Wire Stop Barrier
• Color Coded Insulation for easy identification
• cULus Listed
• 221°F(105°C) 600 Volts Max
• High Strength Electrolytic Tubular Copper
• Maximum Electric Current: 26 AWG - 5.5 Amps, 24 AWG - 7 Amps, 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps
• Electro-Tin Plated for corrosion resistance
• Easy Entry Expanded Insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
