Morris 12226 Heat Shrinkable Wiring Terminals Resupply

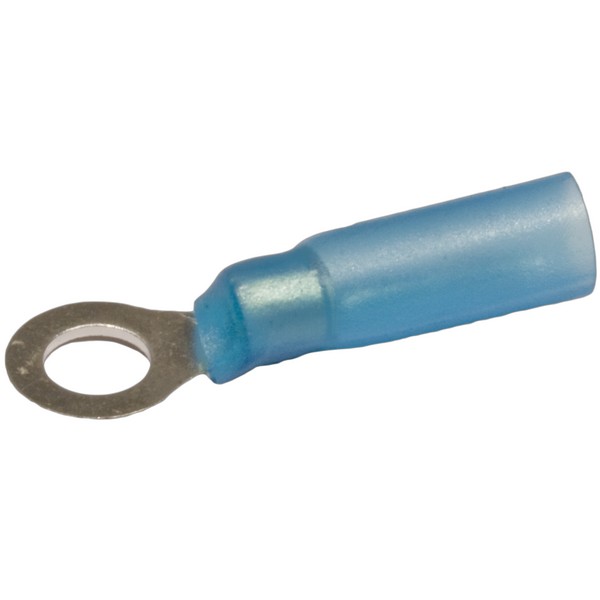

Morris 12226 Heat Shrinkable Wiring Terminals offer a reliable solution for all your electrical connection needs. Constructed from high-quality electrolytic copper, these terminals are electro-tin plated to enhance corrosion resistance, ensuring longevity and durability in various applications. The brazed seam design provides added strength, while the serrated barrel ensures excellent electrical contact and minimizes pull-out forces. These terminals feature high-density polyethylene insulation that shrinks at a temperature of 302°F (150°C), making them suitable for a wide range of environments. With a maximum rating of 600 volts and a temperature resistance range from 14°F to 221°F (-26°C to 105°C), they are versatile enough for both residential and commercial projects. The Morris 12226 can accommodate wire sizes from 16 to 14 AWG and supports significant current ratings-up to 50 amps for 10 AWG wire. cULus listed for safety and compliance, these blue ring terminals are designed for stud size #8 connections, making them a perfect choice for professional electricians and knowledgeable homeowners alike. Resupply your heat shrinkable wiring terminals with confidence, knowing that Morris Products delivers quality and performance in every connection.

Resupply your Heat Shrinkable Wiring Terminals here.

• Resistant Temp: 14°F ~ 221°F (-26°C ~ 105°C)
• Insulation Material: High Density PE Heat Shrink
• cULus Listed
• Heat Shrinkable Ring Terminal Material: Electrolytic Copper
• Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
• Maximum Rating: 600 Volts
• Brazed Seam
• Shrink Temp: 302°F (150°C)
• Maximum Electric Current: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps
• Electro-Tin Plated for corrosion resistance
