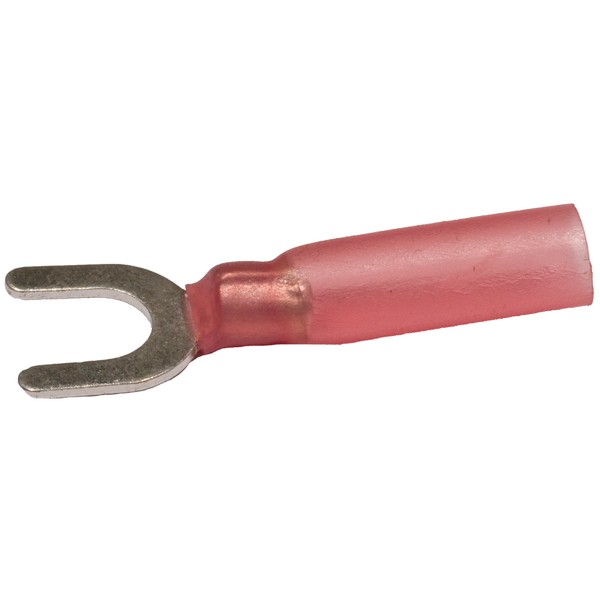

Morris 12254 Heat Shrink Fork/Spade Terminals for Electrical Work

Morris 12254 Heat Shrinkable Fork/Spade Terminals are designed for reliable and efficient electrical work. Constructed from high-quality electrolytic copper, these terminals ensure excellent conductivity and durability. The electro-tin plating offers enhanced corrosion resistance, making them suitable for various environments. With a brazed seam and serrated barrel, these terminals provide superior electrical contact, ensuring optimal performance in your wiring applications. These heat shrinkable terminals are rated for a maximum voltage of 600 volts and can withstand temperatures ranging from 14°F to 221°F (-26°C to 105°C). They require a shrink temperature of 302°F (150°C) for proper installation. The terminals accommodate a wire size range of 22-16 AWG, with current ratings that vary from 9 amps for 22 AWG to 50 amps for 10 AWG, making them versatile for different electrical setups. Morris 12254 terminals are cULus listed, ensuring compliance with safety standards for electrical components. Available in a striking red color and compatible with #8 stud sizes, these terminals are ideal for both professional builders and knowledgeable homeowners. Invest in the Morris 12254 Heat Shrinkable Fork/Spade Terminals for dependable connections that last.

Heat Shrinkable Fork/Spade Terminals for Electrical Work.

• Resistant Temp: 14°F ~ 221°F (-26°C ~ 105°C)
• Heat Shrinkable Fork/Spade Terminal Material: Electrolytic Copper
• Serrated Barrel provides excellent electrical contact
• cULus Listed
• Maximum Current: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps
• Maximum Rating: 600 Volts
• Brazed Seam
• Shrink Temp: 302°F (150°C)
• Electro-Tin Plated for corrosion resistance

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
