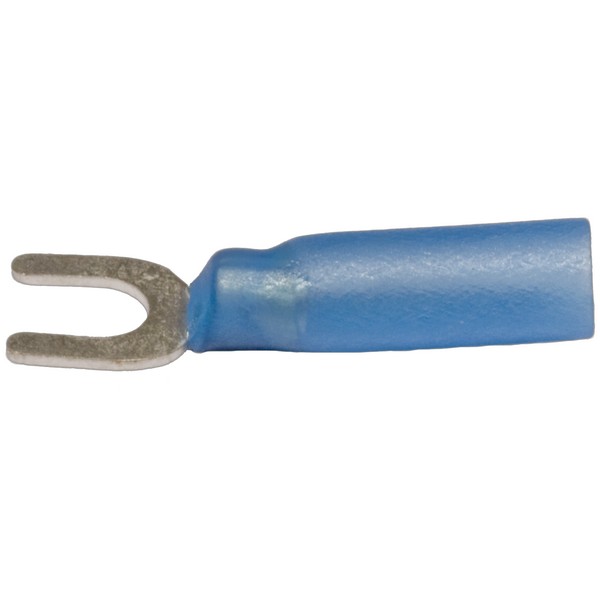

Morris 12262 Heat Shrink Fork/Spade Terminals for Electrical Work

Morris 12262 Heat Shrinkable Fork/Spade Terminals are essential components for reliable electrical connections in various applications. Crafted from electrolytic copper, these terminals feature electro-tin plating, ensuring superior corrosion resistance and longevity in challenging environments. The brazed seam construction enhances durability, while the serrated barrel design guarantees excellent electrical contact, minimizing resistance and maximizing performance. Rated for a maximum voltage of 600 volts, these terminals are designed to handle a wide range of wire sizes. They accommodate 16 to 14 AWG wires and support current ratings from 9 amps for 22 AWG up to an impressive 50 amps for 10 AWG. This versatility makes them suitable for diverse projects, from residential installations to industrial applications. With a shrink temperature of 302°F (150°C) and a resistant temperature range of 14°F to 221°F (-26°C to 105°C), these terminals are built to withstand various environmental conditions. The Morris 12262 terminals are cULus listed, ensuring compliance with safety standards. Available in a striking blue color and designed for a #10 stud size, these heat shrinkable terminals are a reliable choice for any electrical work. Enhance your connections with Morris Products, where quality meets performance.

Heat Shrinkable Fork/Spade Terminals for Electrical Work.

• Resistant Temp: 14°F ~ 221°F (-26°C ~ 105°C)
• Heat Shrinkable Fork/Spade Terminal Material: Electrolytic Copper
• Serrated Barrel provides excellent electrical contact
• cULus Listed
• Maximum Current: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps
• Maximum Rating: 600 Volts
• Brazed Seam
• Shrink Temp: 302°F (150°C)
• Electro-Tin Plated for corrosion resistance
