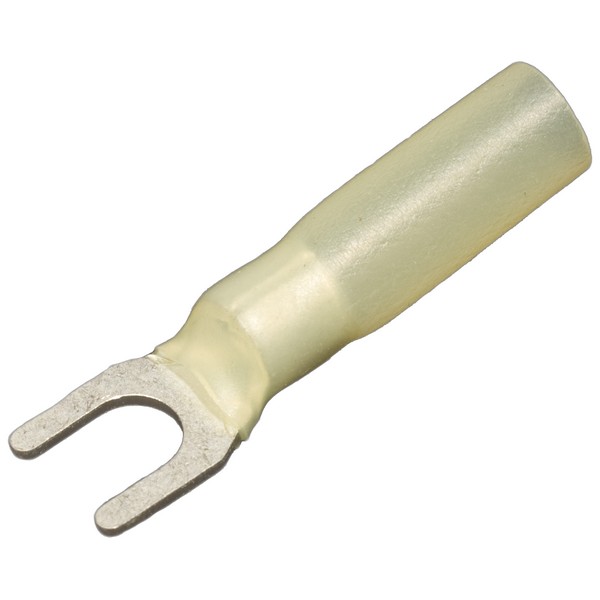

Morris 12266 Heat Shrink Fork/Spade Terminals for Electrical Work

Morris 12266 Heat Shrinkable Fork/Spade Terminals are designed to enhance the reliability and efficiency of your electrical connections. Constructed from high-quality electrolytic copper, these terminals are electro-tin plated to provide superior corrosion resistance, ensuring long-lasting performance even in challenging environments. The brazed seam design further strengthens the terminal, making it a durable choice for various applications. Featuring a serrated barrel, these terminals deliver excellent electrical contact, which is critical for maximizing current flow. With a maximum rating of 600 volts, they are suitable for a wide range of electrical projects. The terminals can withstand temperatures ranging from 14°F to 221°F (-26°C to 105°C), making them versatile for both indoor and outdoor use. The shrink temperature of 302°F (150°C) ensures a secure fit when heat is applied. These terminals accommodate wire sizes from 12 to 10 AWG and are rated for maximum current capacities ranging from 9 to 50 amps, depending on the wire gauge. Additionally, they are cULus listed, providing peace of mind regarding safety and compliance. The vibrant yellow color and a stud size of #10 make installation straightforward and efficient. Choose Morris 12266 terminals for your next electrical project and experience the difference in quality and reliability.

Heat Shrinkable Fork/Spade Terminals for Electrical Work.

• Resistant Temp: 14°F ~ 221°F (-26°C ~ 105°C)
• Heat Shrinkable Fork/Spade Terminal Material: Electrolytic Copper
• Serrated Barrel provides excellent electrical contact
• cULus Listed
• Maximum Current: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps
• Maximum Rating: 600 Volts
• Brazed Seam
• Shrink Temp: 302°F (150°C)
• Electro-Tin Plated for corrosion resistance
