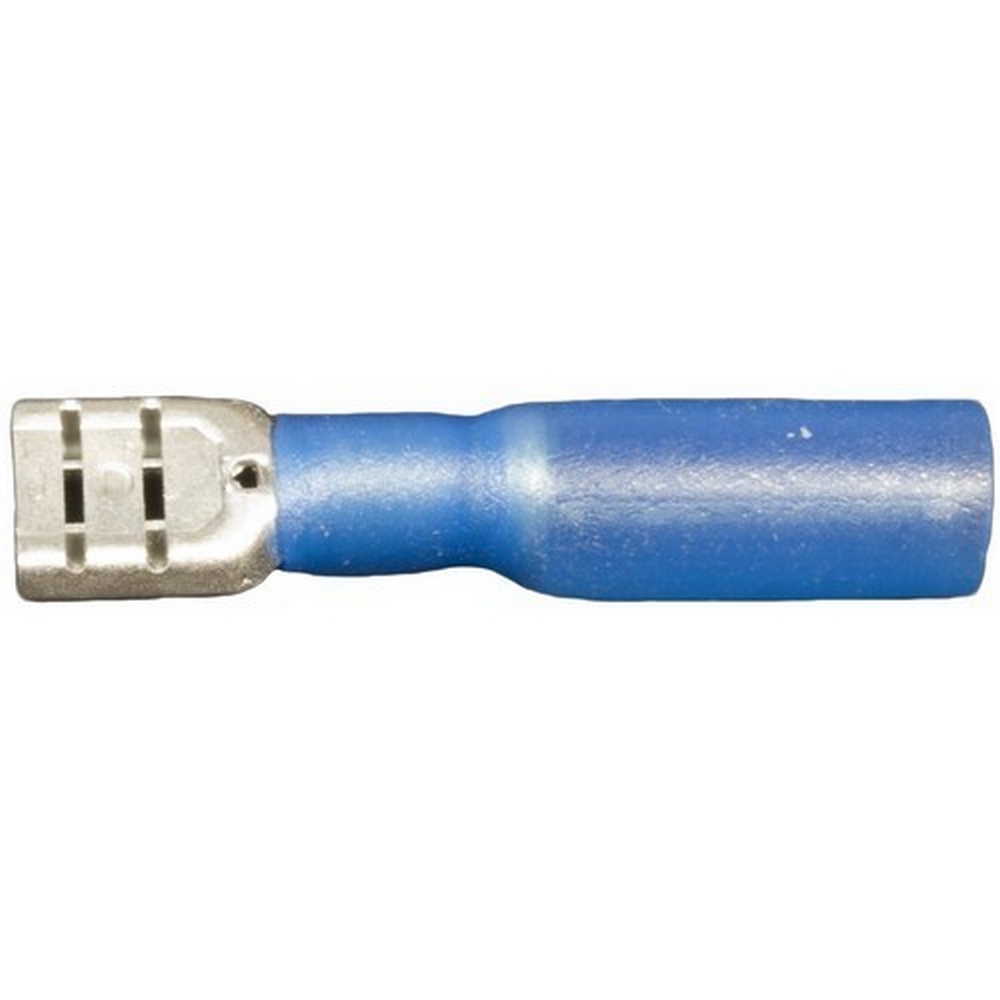

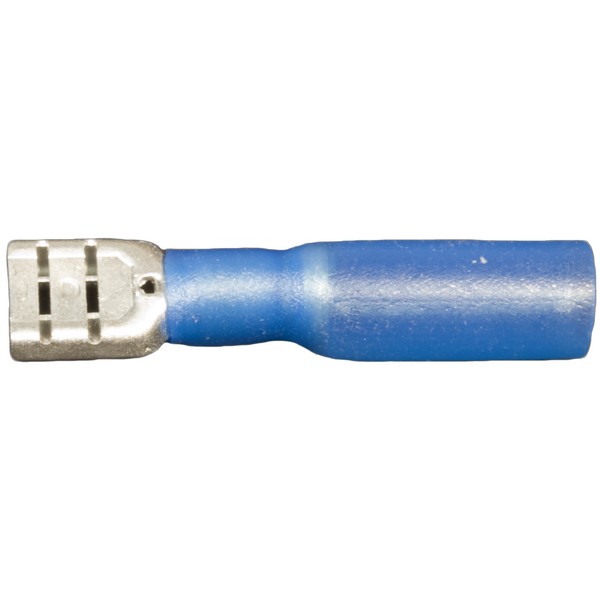

Morris 12274 Heat Shrinkable Female Disconnects - Quality Meets Economy

Morris 12274 Heat Shrinkable Female Disconnects combine quality and economy, making them an essential addition to any electrical toolkit. Constructed from high-strength brass and electro-tin plated, these disconnects offer excellent corrosion resistance, ensuring long-lasting performance in various applications. The butted seam design enhances structural integrity, while the serrated barrel provides superior electrical contact and resistance to pull-out forces. Designed for versatility, the double crimp extended crimp sleeve allows for multiple crimps, which significantly improves electrical contact and enhances pull-out force resistance. With a maximum current rating of up to 24 amps for 10 AWG wire, these disconnects can handle a range of wire sizes from 16 to 14 AWG. They are also rated for up to 300 volts, making them suitable for a variety of installations. The insulation material is high-density polyethylene heat shrink, which activates at a shrink temperature of 302°F (150°C). These disconnects can withstand temperatures from 14°F to 221°F (-26°C to 105°C), ensuring reliable performance in diverse environments. Additionally, the Morris 12274 is cULus listed, assuring compliance with safety standards. Choose Morris for dependable electrical connections that prioritize both quality and efficiency.

Our Heat Shrinkable Female Disconnects combine quality and economy.

• Resistant Temp: 14°F ~ 221°F (-26°C ~ 105°C)
• Heat Shrinkable Female Disconnect Material: High Strength Brass
• Insulation Material: High Density PE Heat Shrink
• Max Ratings: 300 Volts
• cULus Listed
• Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
• Butted Seam
• Double Crimp Extended Crimp Sleeve provides for multiple crimps resulting in improved electrical contact and pull-out force resistance
• Max Current: 22 AWG - 3 Amps, 20 AWG - 4 Amps, 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps, 12 AWG - 20 Amps, 10 AWG - 24 Amps
• Shrink Temp: 302°F (150°C)
• Electro-Tin Plated for corrosion resistance
