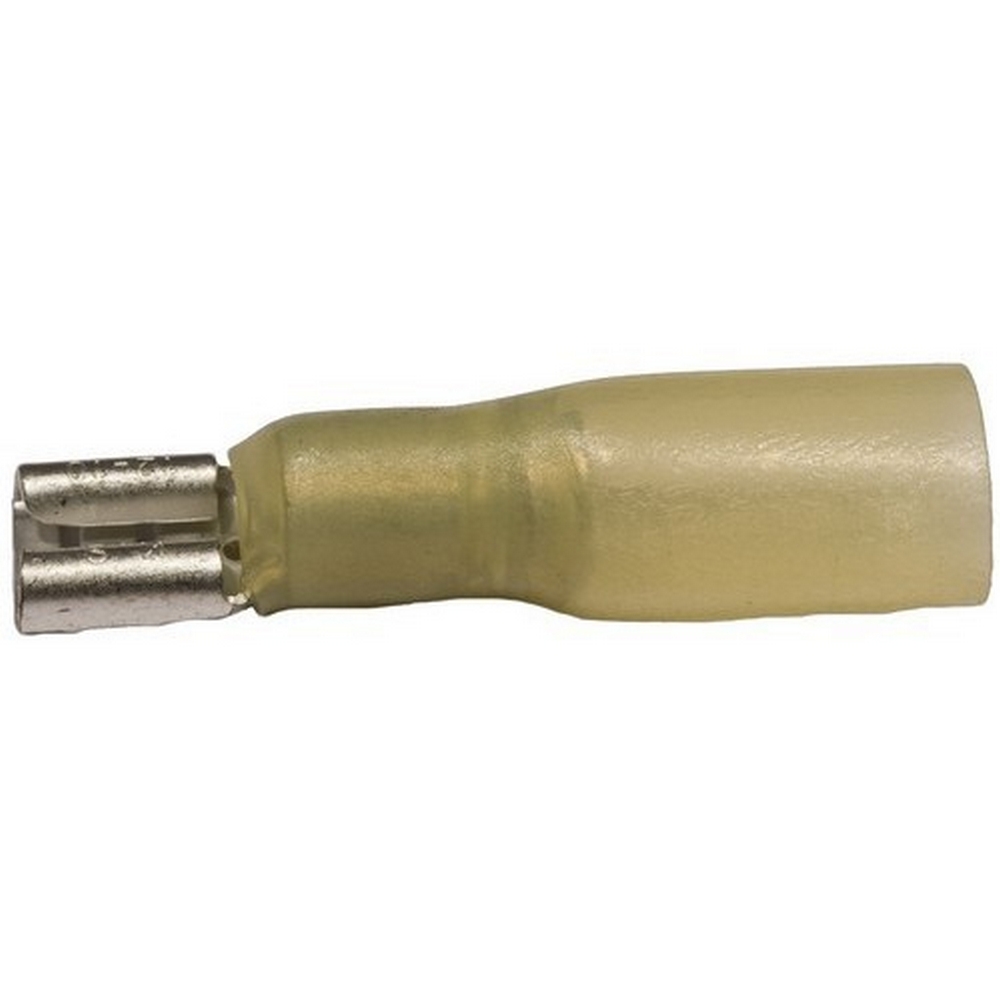

Morris 12276 Heat Shrinkable Female Disconnects - Quality Meets Economy

Morris 12276 Heat Shrinkable Female Disconnects combine quality and economy, making them an essential choice for various electrical applications. Constructed from high-strength brass and electro-tin plated for enhanced corrosion resistance, these disconnects ensure reliable performance in demanding environments. The butted seam design, paired with a serrated barrel, provides excellent electrical contact while resisting pull-out forces, ensuring longevity and safety in your connections. The high-density PE heat shrink insulation material offers additional protection, maintaining integrity even in challenging temperatures, ranging from 14°F to 221°F (-26°C to 105°C). With a double crimp extended crimp sleeve, these connectors allow for multiple crimps, resulting in improved electrical contact and enhanced pull-out resistance. They are rated for a maximum of 300 volts, accommodating various wire sizes from 12 AWG to 10 AWG, with corresponding current ratings from 20 amps to 24 amps. Morris 12276 disconnects are cULus listed, ensuring compliance with safety standards. Their yellow color and NEMA tab measuring .032" x .250" make them easily identifiable. Ideal for both residential and commercial use, these heat shrinkable female disconnects are a smart choice for building professionals and knowledgeable homeowners alike.

Our Heat Shrinkable Female Disconnects combine quality and economy.

• Resistant Temp: 14°F ~ 221°F (-26°C ~ 105°C)
• Heat Shrinkable Female Disconnect Material: High Strength Brass
• Insulation Material: High Density PE Heat Shrink
• Max Ratings: 300 Volts
• cULus Listed
• Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
• Butted Seam
• Double Crimp Extended Crimp Sleeve provides for multiple crimps resulting in improved electrical contact and pull-out force resistance
• Max Current: 22 AWG - 3 Amps, 20 AWG - 4 Amps, 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps, 12 AWG - 20 Amps, 10 AWG - 24 Amps
• Shrink Temp: 302°F (150°C)
• Electro-Tin Plated for corrosion resistance
