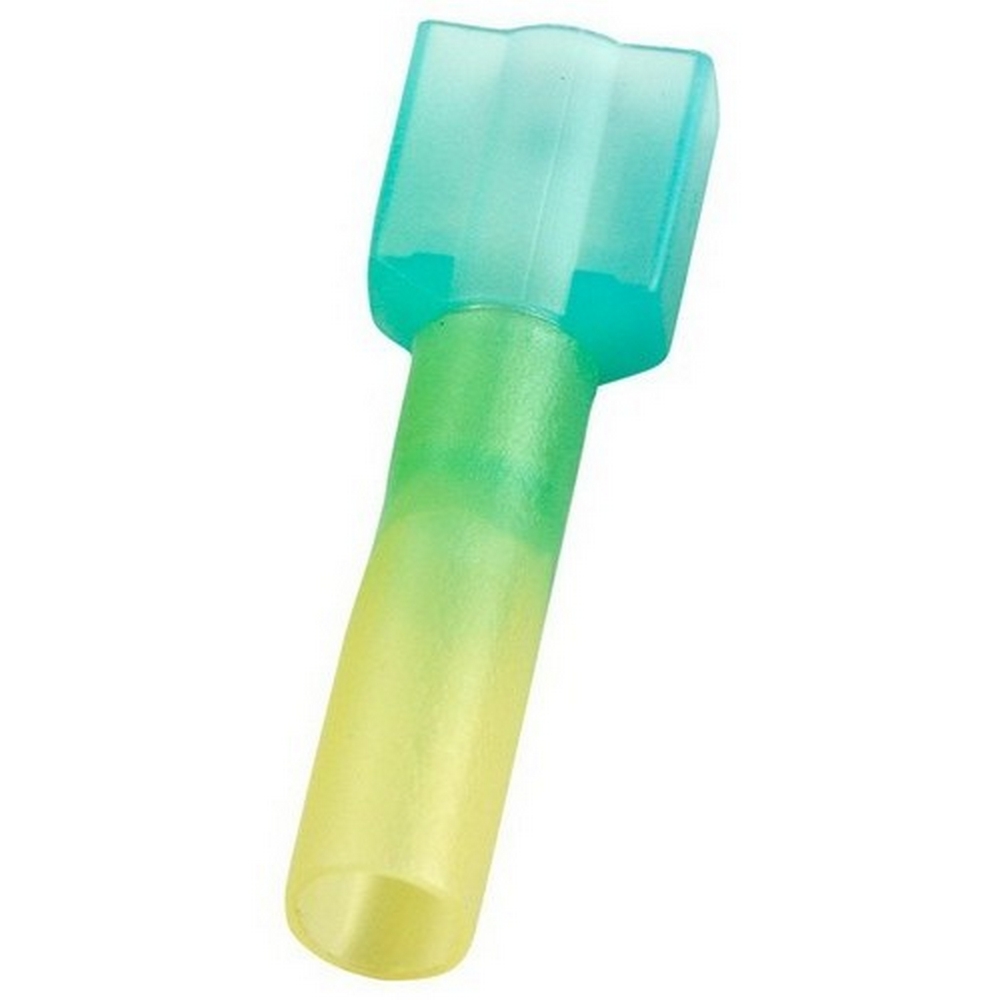

Morris 12278 Heat Shrinkable Nylon Insulated Male Disconnects - Waterproof TouchProof

Morris 12278 Heat Shrinkable Nylon Fully Insulated Male Disconnects are designed for optimal performance in various electrical applications. These disconnects are totally enclosed, waterproof, and touch-proof, ensuring a safe and reliable connection. Crafted from high-strength brass and electro-tin plated, they offer excellent corrosion resistance, making them suitable for both indoor and outdoor use. The insulation is composed of durable nylon and high-density polyethylene heat shrink, providing added protection against environmental factors. The serrated barrel design enhances electrical contact, while the double crimp extended crimp sleeve allows for multiple crimps, significantly improving electrical connection and resistance to pull-out forces. With a maximum current rating of up to 24 amps depending on wire gauge, these connectors cater to a range of applications from 22 AWG to 10 AWG. They are rated for up to 300 volts, ensuring they meet stringent electrical requirements. The heat shrink temperature reaches up to 302°F (150°C), and they can withstand temperatures ranging from 14°F to 221°F (-26°C to 105°C). cULus listed for safety and reliability, Morris 12278 disconnects are an essential component for any professional or knowledgeable homeowner looking to ensure secure electrical connections.

Heat Shrinkable Nylon Fully Insulated Male Disconnects are Totally Enclosed Waterproof and TouchProof.

• Resistant Temp: 14°F ~ 221°F (-26°C ~ 105°C)
• Max Ratings: 300 Volts
• Heat Shrinkable Nylon Fully Insulated Male Disconnect Material: High Strength Brass
• cULus Listed
• Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
• Double Crimp Extended Crimp Sleeve provides for multiple crimps resulting in improved electrical contact and pull-out force resistance
• Max Current: 22 AWG - 3 Amps, 20 AWG - 4 Amps, 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps, 12 AWG - 20 Amps, 10 AWG - 24 Amps
• Shrink Temp: 302°F (150°C)
• Electro-Tin Plated for corrosion resistance
• Insulation Material: Nylon & High Density PE Heat Shrink
