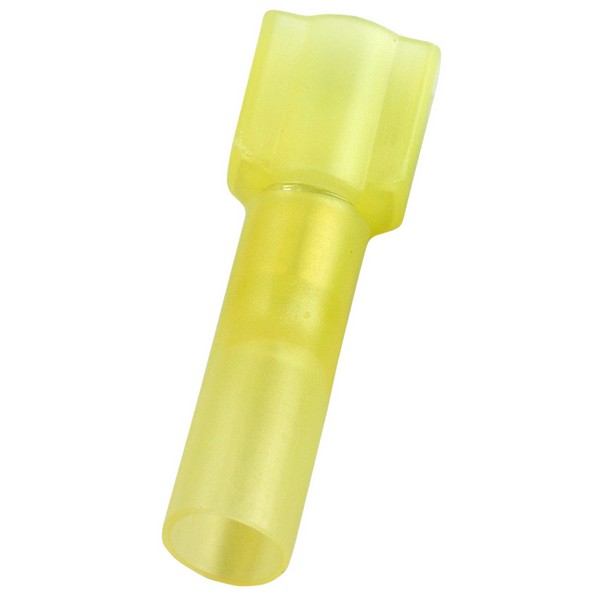

Morris 12279 Waterproof Heat Shrinkable Nylon Male Disconnects, Fully Insulated

Morris 12279 Heat Shrinkable Nylon Fully Insulated Male Disconnects are totally enclosed, waterproof, and touch-proof, making them an excellent choice for reliable electrical connections in various applications. Constructed from high-strength brass and electro-tin plated for enhanced corrosion resistance, these disconnects ensure durability in demanding environments. The insulation is crafted from nylon and high-density polyethylene heat shrink, providing an additional layer of protection. A serrated barrel design enhances electrical contact and resists pull-out forces, while the double crimp extended crimp sleeve allows for multiple crimps, further improving electrical connectivity and resistance to mechanical stress. These disconnects support a maximum current capacity ranging from 3 amps for 22 AWG wires to 24 amps for 10 AWG wires, with a maximum voltage rating of 300 volts. They are designed to perform effectively within a temperature range of 14°F to 221°F (-26°C to 105°C), and they shrink at a temperature of 302°F (150°C). Morris 12279 disconnects are cULus listed, ensuring they meet rigorous safety standards. Ideal for both professional and DIY projects, these yellow connectors are versatile and dependable, making them a must-have in any electrical toolkit.

Heat Shrinkable Nylon Fully Insulated Male Disconnects are Totally Enclosed Waterproof and TouchProof.

• Resistant Temp: 14°F ~ 221°F (-26°C ~ 105°C)
• Max Ratings: 300 Volts
• Heat Shrinkable Nylon Fully Insulated Male Disconnect Material: High Strength Brass
• cULus Listed
• Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
• Double Crimp Extended Crimp Sleeve provides for multiple crimps resulting in improved electrical contact and pull-out force resistance
• Max Current: 22 AWG - 3 Amps, 20 AWG - 4 Amps, 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps, 12 AWG - 20 Amps, 10 AWG - 24 Amps
• Shrink Temp: 302°F (150°C)
• Electro-Tin Plated for corrosion resistance
• Insulation Material: Nylon & High Density PE Heat Shrink
