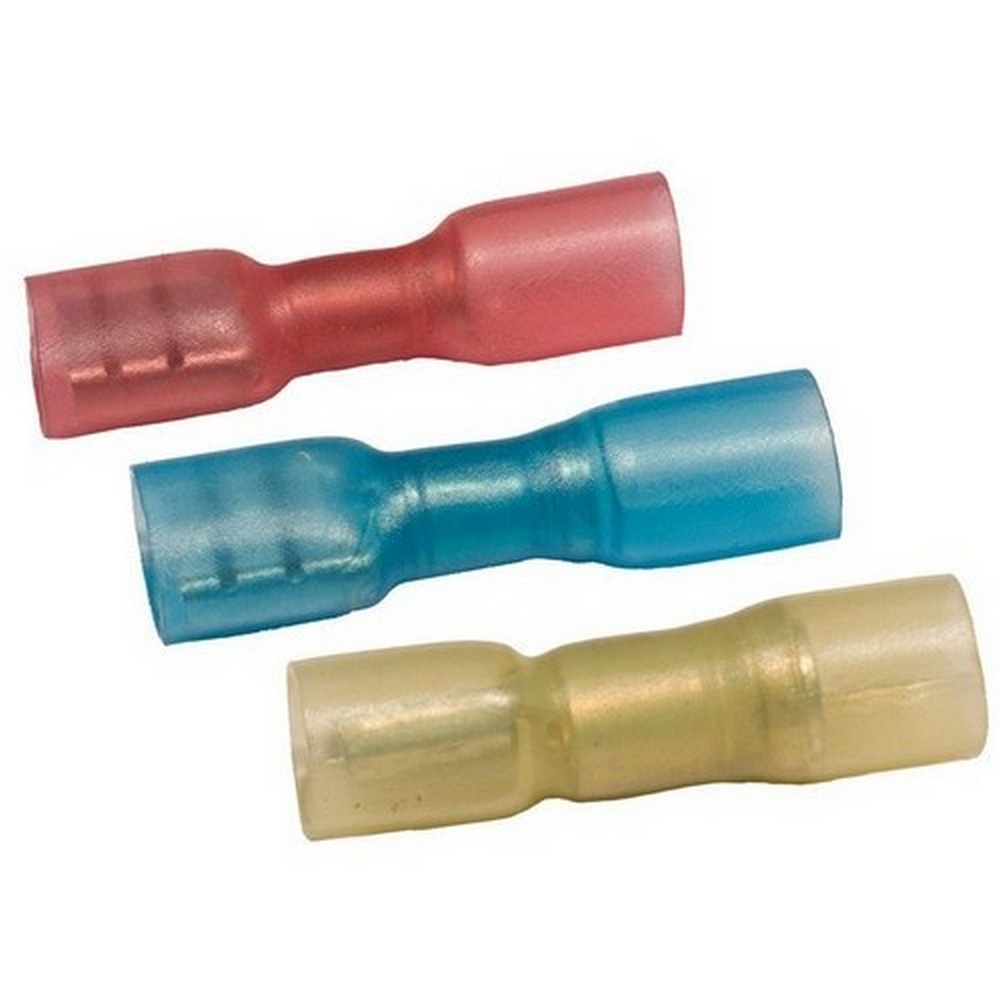

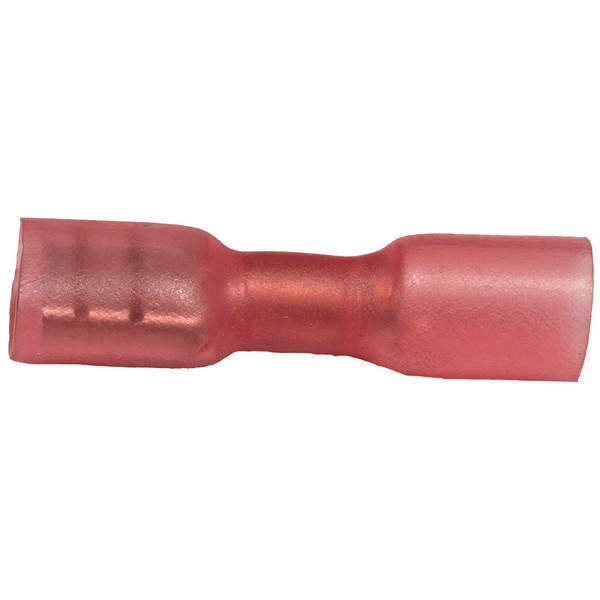

Morris 12282 Insulated Heat Shrink Female Disconnects

Morris 12282 Heat Shrink Female Disconnects are fully insulated for optimal safety and performance in various electrical applications. Constructed from high-strength brass and electro-tin plated, these disconnects provide excellent corrosion resistance, ensuring longevity and reliability in challenging environments. The butted seam design enhances structural integrity, while the serrated barrel guarantees superior electrical contact and resistance against pull-out forces. These disconnects feature a double crimp extended crimp sleeve that allows for multiple crimps, significantly improving electrical contact and resistance to pull-out force. With a maximum current rating of up to 24 amps depending on wire gauge, they accommodate a wide range of applications, from 22 AWG at 3 amps to 10 AWG at 24 amps. Rated for a maximum of 300 volts, these disconnects perform well in diverse conditions. The heat shrink tubing is made from high-density PE material, with a shrink temperature of 302°F (150°C) and a service temperature range of 14°F to 221°F (-26°C to 105°C). cULus listed for safety and compliance, the Morris 12282 Heat Shrink Female Disconnects are an essential addition to any professional's toolkit. Available in an eye-catching red color, they also adhere to NEMA TAB specifications of .032" x .250".

Our Heat Shrink Female Disconnects are Fully Insulated.

• Resistant Temp: 14°F ~ 221°F (-26°C ~ 105°C)
• Insulation Material: High Density PE Heat Shrink
• Max Ratings: 300 Volts
• cULus Listed
• Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
• Butted Seam
• Double Crimp Extended Crimp Sleeve provides for multiple crimps resulting in improved electrical contact and pull-out force resistance
• Max Current: 22 AWG - 3 Amps, 20 AWG - 4 Amps, 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps, 12 AWG - 20 Amps, 10 AWG - 24 Amps
• Shrink Temp: 302°F (150°C)
• Heat Shrinkable Fully Insulated Female Disconnect Material: High Strength Brass
• Electro-Tin Plated for corrosion resistance

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
