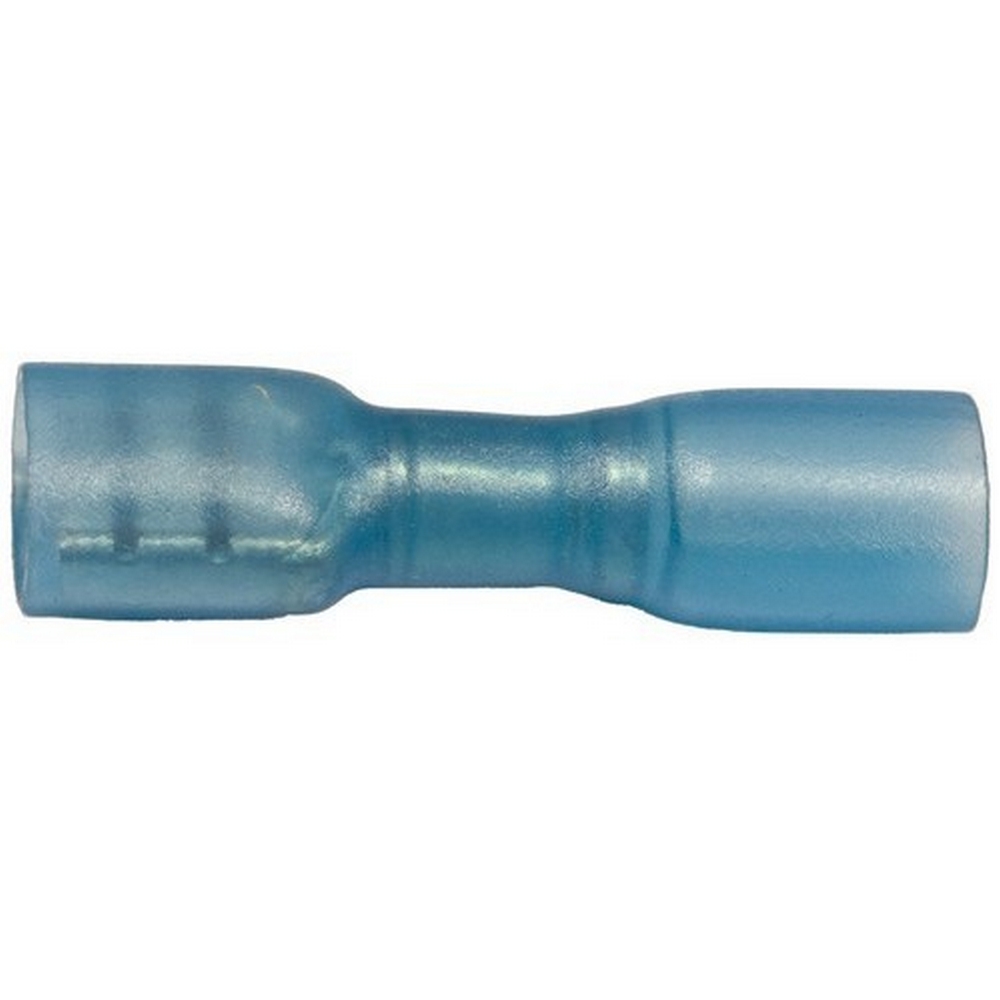

Morris 12284 Fully Insulated Heat Shrink Female Disconnects

Morris 12284 Heat Shrink Female Disconnects are fully insulated connectors designed for reliable electrical connections in various applications. Crafted from high-strength brass and electro-tin plated, these disconnects ensure excellent corrosion resistance, making them ideal for both indoor and outdoor use. The butted seam design and serrated barrel enhance electrical contact while providing superior resistance to pull-out forces, ensuring a secure connection even in demanding environments. The double crimp extended crimp sleeve allows for multiple crimps, further improving electrical contact and resistance to pull-out forces. These disconnects accommodate a wide range of wire sizes, rated for maximum currents from 3 amps for 22 AWG to 24 amps for 10 AWG, with a maximum voltage rating of 300 volts. They are designed to withstand temperatures from 14°F to 221°F (-26°C to 105°C) and shrink at a temperature of 302°F (150°C). Morris 12284 disconnects are cULus listed, affirming their compliance with rigorous safety standards. Available in blue, they come with a NEMA tab size of .032" x .250", making them compatible with a variety of wiring setups. Choose Morris for dependable, high-quality components that ensure your electrical projects are built to last.

Our Heat Shrink Female Disconnects are Fully Insulated.

• Resistant Temp: 14°F ~ 221°F (-26°C ~ 105°C)
• Insulation Material: High Density PE Heat Shrink
• Max Ratings: 300 Volts
• cULus Listed
• Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
• Butted Seam
• Double Crimp Extended Crimp Sleeve provides for multiple crimps resulting in improved electrical contact and pull-out force resistance
• Max Current: 22 AWG - 3 Amps, 20 AWG - 4 Amps, 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps, 12 AWG - 20 Amps, 10 AWG - 24 Amps
• Shrink Temp: 302°F (150°C)
• Heat Shrinkable Fully Insulated Female Disconnect Material: High Strength Brass
• Electro-Tin Plated for corrosion resistance
