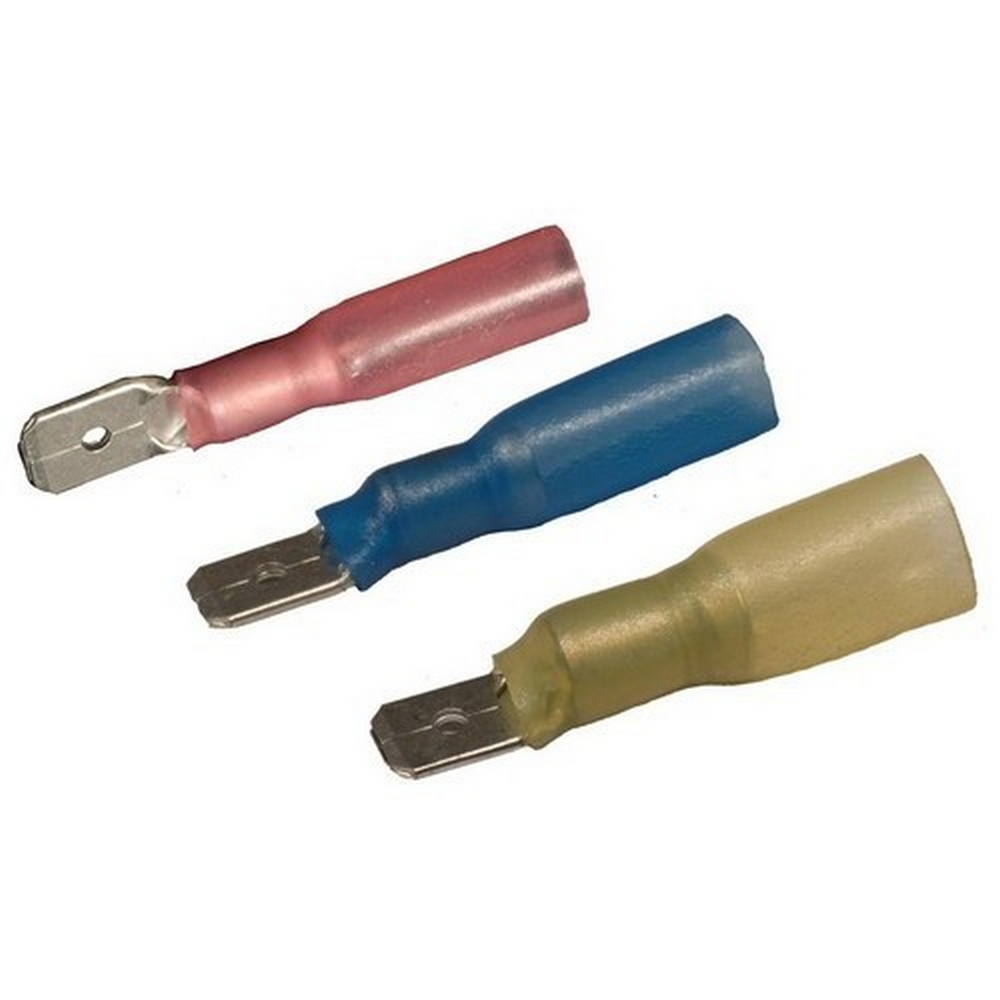

Morris 12292 Heat Shrinkable Male Disconnects

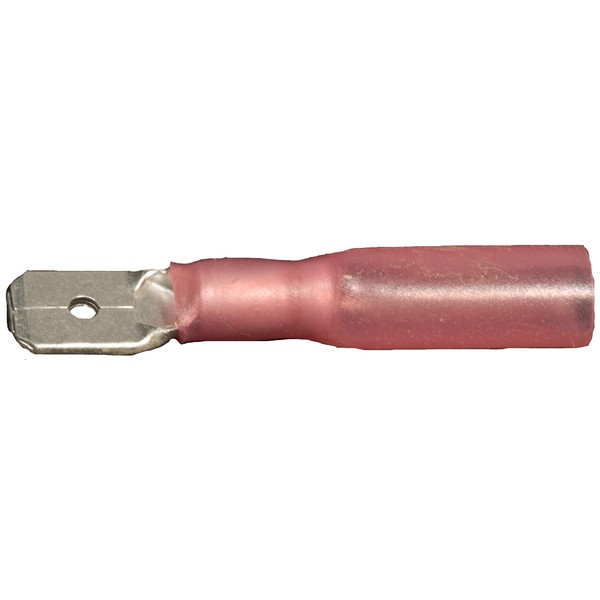

Morris 12292 Male Disconnects are designed for reliable performance in various electrical applications. Constructed from high-strength brass, these heat shrinkable disconnects ensure durability and longevity. The electro-tin plating provides excellent corrosion resistance, making them suitable for both indoor and outdoor use. With a butted seam and a serrated barrel, these male disconnects deliver exceptional electrical contact while resisting pull-out forces. The double crimp extended crimp sleeve enables multiple crimps, which significantly enhances electrical contact and pull-out force resistance, ensuring a secure and stable connection. These disconnects are rated for a maximum current of 3 to 24 amps depending on wire gauge, accommodating a range of applications from 22 AWG to 10 AWG wiring. They can handle up to 300 volts, with a shrink temperature of 302°F (150°C) and a resistant temperature range of 14°F to 221°F (-26°C to 105°C). Morris 12292 is cULus listed, ensuring compliance with safety standards. The vibrant red color allows for easy identification, while the .032" x .250" NEMA tab ensures compatibility with standard connectors. For dependable and efficient electrical connections, Morris 12292 Male Disconnects stand out as a top choice for professionals and knowledgeable homeowners alike.

Our Male Disconnects are Heat Shrinkable.

• Resistant Temp: 14°F ~ 221°F (-26°C ~ 105°C)
• Heat Shrinkable Male Disconnect Material: High Strength Brass
• Insulation Material: High Density PE Heat Shrink
• Max Ratings: 300 Volts
• cULus Listed
• Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
• Butted Seam
• Double Crimp Extended Crimp Sleeve provides for multiple crimps resulting in improved electrical contact and pull-out force resistance
• Shrink TempP: 302°F (150°C)
• Max Current: 22 AWG - 3 Amps, 20 AWG - 4 Amps, 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps, 12 AWG - 20 Amps, 10 AWG - 24 Amps
• Electro-Tin Plated for corrosion resistance
