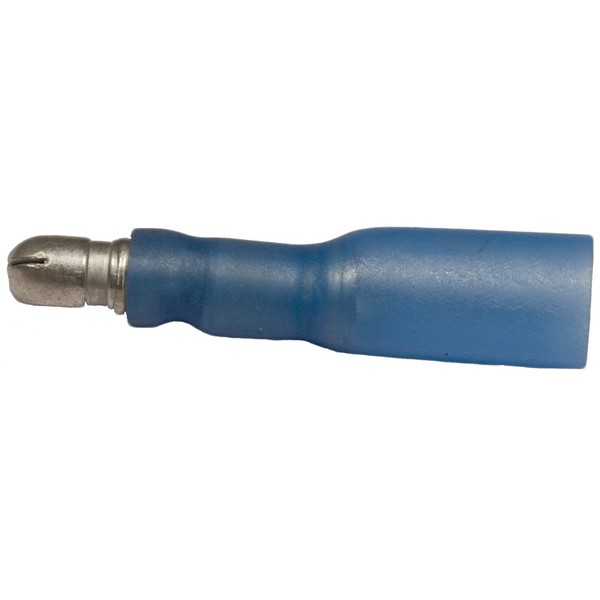

Morris 12314 Heat Shrink Bullet Disconnects for Electrical Splicing

Morris 12314 Heat Shrinkable Bullet Disconnects are designed for reliable electrical splicing, ensuring a secure connection in various applications. Crafted from high-strength brass and electro-tin plated, these disconnects offer exceptional corrosion resistance, making them ideal for both indoor and outdoor use. The butted seam construction enhances the integrity of the connection, providing peace of mind during installation. Featuring a serrated barrel, these connectors guarantee excellent electrical contact while resisting pull-out forces, making them a dependable choice for building professionals. The double crimp extended crimp sleeve allows for multiple crimps, resulting in improved electrical contact and enhanced pull-out force resistance. Morris 12314 Bullet Disconnects are compatible with wire sizes ranging from 12 AWG to 16 AWG, supporting a maximum current of up to 24 Amps and a voltage rating of 300 Volts. With a shrink temperature of 302°F (150°C) and a temperature resistance range from 14°F to 221°F (-26°C to 105°C), these disconnects are built to withstand varying environmental conditions. cULus listed for safety assurance, the blue connectors come in a bullet size of .157", making them a versatile and essential addition to your electrical toolkit. Ensure your electrical connections are both secure and efficient with Morris 12314 Heat Shrinkable Bullet Disconnects.

Heat Shrinkable Bullet Disconnects for electrical Splicing.

• Resistant Temp: 14°F ~ 221°F (-26°C ~ 105°C)
• Heat Shrinkable Bullet Disconnect Material: High Strength Brass
• Max Ratings: 300 Volts
• cULus Listed
• Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
• Butted Seam
• Double Crimp Extended Crimp Sleeve provides for multiple crimps resulting in improved electrical contact and pull-out force resistance
• Max Current: 22 AWG - 3 Amps, 20 AWG - 4 Amps, 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps, 12 AWG - 20 Amps, 10 AWG - 24 Amps
• Shrink Temp: 302°F (150°C)
• Insulation Material: High Density PE
• Electro-Tin Plated for corrosion resistance
