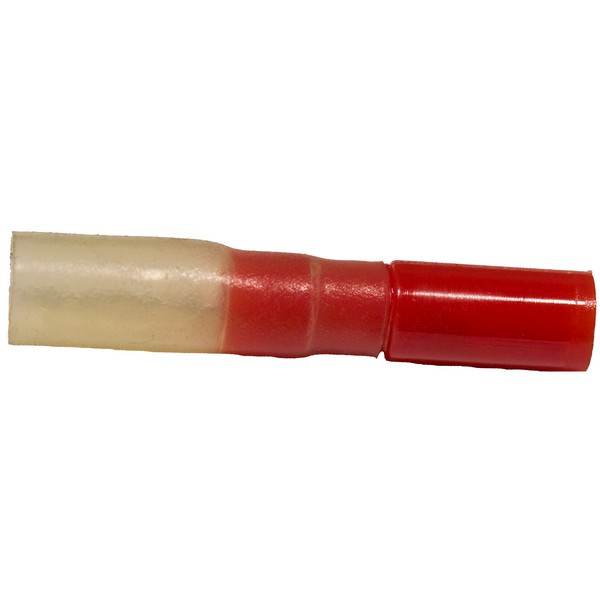

Morris 12322 Fully Insulated Heat Shrink Receptacle Disconnects

Morris 12322 Fully Insulated Heat Shrink Receptacle Disconnects offer a reliable solution for your electrical connection needs. Crafted from high-strength brass, these disconnects feature an electro-tin plating that enhances corrosion resistance, ensuring longevity and durability in various applications. The design incorporates a butted seam and a serrated barrel, which provide excellent electrical contact while resisting pull-out forces. With a double crimp extended crimp sleeve, these disconnects allow for multiple crimps, improving both electrical contact and resistance to pull-out, making them ideal for demanding environments. These disconnects are rated for maximum currents ranging from 3 Amps for 22 AWG wire to 24 Amps for 10 AWG wire, with a maximum voltage rating of 300 Volts. They perform well across a temperature range of 14°F to 221°F (-10°C to 105°C) and have a shrink temperature of 302°F (150°C). The insulation comprises nylon and high-density polyethylene, providing added reliability. cULus listed, the Morris 12322 disconnects are available in a striking red color, with a receptacle size of .154". Whether for residential or industrial applications, these heat shrink receptacle disconnects deliver the performance and safety you need.

You'll love working with our Fully Insulated Heat Shrink Receptacle Disconnects.

• Heat Shrinkable Fully Insulated Receptacle Disconnect Material: High Strength Brass
• Resistant Temp: 14°F ~ 221°F (-10°C ~ 105°C)
• Max Ratings: 300 Volts
• Insulation Material: Nylon & High Density PE
• cULus Listed
• Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
• Butted Seam
• Double Crimp Extended Crimp Sleeve provides for multiple crimps resulting in improved electrical contact and pull-out force resistance
• Max Current: 22 AWG - 3 Amps, 20 AWG - 4 Amps, 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps, 12 AWG - 20 Amps, 10 AWG - 24 Amps
• Shrink Temp: 302°F (150°C)
• Electro-Tin Plated for corrosion resistance
