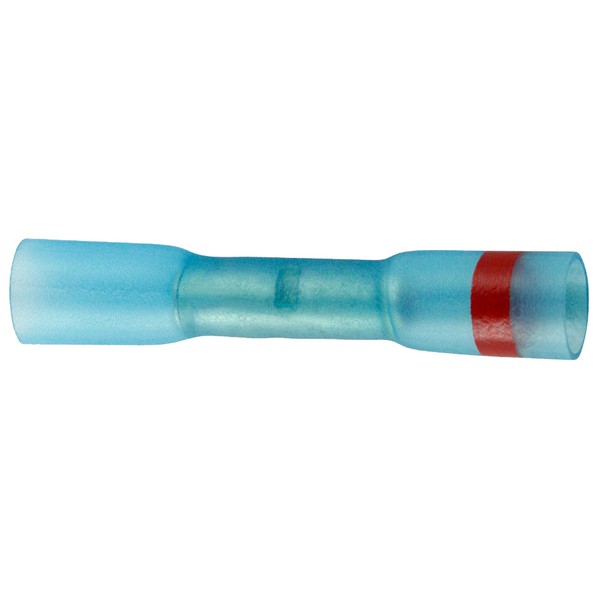

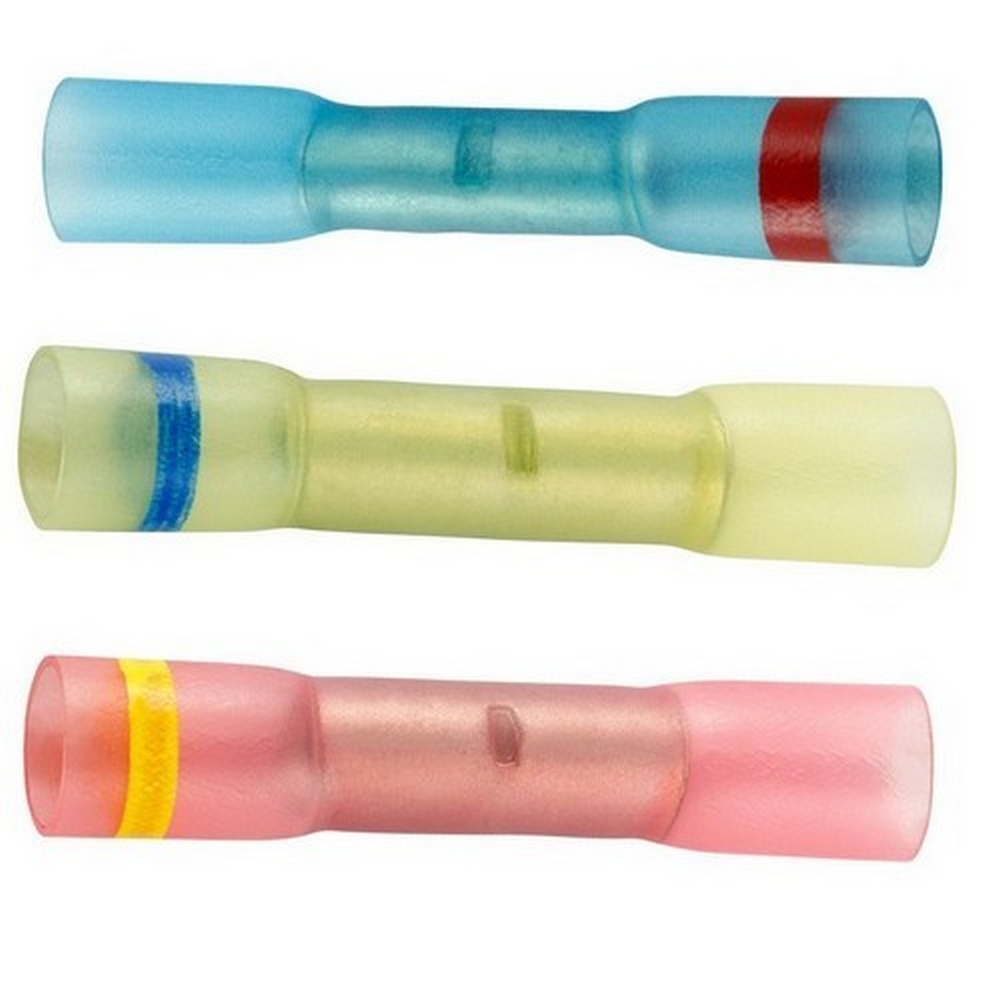

Morris 12340 Heat Shrink Nylon Reducing Butt Splice Connectors for Electrical Cables

Morris 12340 Heat Shrinkable Nylon Reducing Butt Splice Connectors offer a reliable solution for electrical cable connections, designed specifically for step-down splices. Featuring a unique step-down barrel design, these connectors facilitate a seamless transition from larger to smaller conductors with a straightforward in-line splice, making installation efficient and hassle-free. Constructed from high-strength brass and electro-tin plated, these connectors provide exceptional corrosion resistance, ensuring durable performance in various environments. The nylon insulation, combined with PE heat shrink, enhances the connector's longevity and reliability. Each connector is equipped with a center wire stop barrier, which aids in maintaining proper alignment and stability during use. The Morris 12340 connectors can handle a wide range of wire gauges, supporting maximum current ratings from 5.5 amps at 26 AWG to 125 amps at 4 AWG. With a maximum operating temperature of 302°F (150°C) and 600 volts, these connectors are built to meet demanding electrical specifications. Additionally, they are cULus listed, guaranteeing compliance with stringent safety standards. Available in a blue color scheme with a red ring for easy identification, these connectors are ready to ship via UPS, making them a practical choice for any electrical project.

Heat Shrinkable Nylon Reducing Butt Splice Connectors for electrical cable Step Down splices.

• Heat Shrinkable Nylon Reducing Butt Splice Connectors Material: High Strength Brass
• cULus Listed
• Heat Shrinkable Nylon Reducing Butt Splice Connectors features Step-Down Barrel that allows for transition from larger to smaller conductor with simple In-Line Splice
• Max Current: 26 AWG - 5.5 Amps, 24 AWG - 7 Amps, 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps, 8 AWG - 70 Amps, 6 AWG - 95 Amps, 4 AWG - 125 Amps
• 302°F(150°C) 600 Volts Max
• Insulation: Nylon with PE Heat Shrink
• Electro-Tin Plated for corrosion resistance
• Heat Shrinkable Nylon Reducing Butt Splice Connectors has Center Wire Stop Barrier
