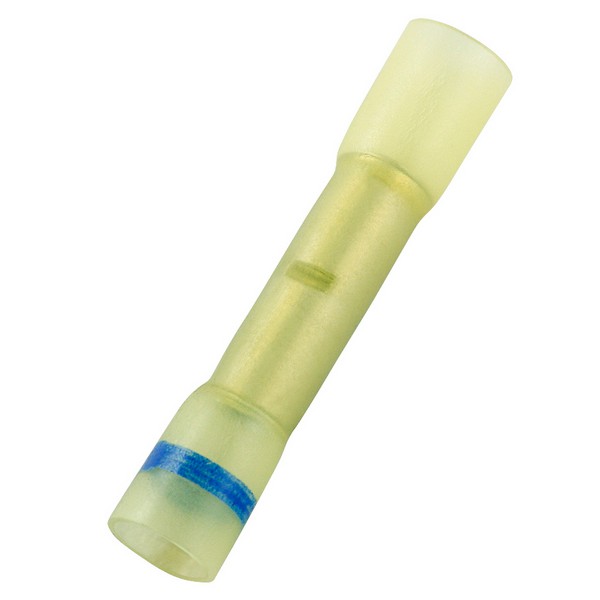

Morris 12341 Heat Shrink Nylon Reducing Butt Splice Connectors for Electrical Cables

Morris 12341 Heat Shrinkable Nylon Reducing Butt Splice Connectors are expertly designed for reliable electrical connections, facilitating seamless step-down splices between larger and smaller conductors. This innovative connector features a step-down barrel that simplifies in-line splicing, making it an essential tool for any builder or electrician. Constructed from high-strength brass and electro-tin plated, these connectors offer superior corrosion resistance, ensuring durability even in challenging environments. The heat-shrinkable nylon insulation with PE heat shrink provides an additional layer of protection, while the center wire stop barrier enhances safety and reliability during installation. With a maximum current capacity ranging from 5.5 amps for 26 AWG wires to an impressive 125 amps for 4 AWG wires, these connectors are versatile enough to accommodate a wide range of applications. They are rated for up to 302°F (150°C) and can handle voltages up to 600 volts, making them suitable for various residential, commercial, and industrial uses. cULus listed for safety and compliance, the connectors are color-coded in yellow with a blue ring for easy identification. Ensure your electrical projects are executed with precision and confidence with Morris 12341 connectors, a trusted choice for professionals.

Heat Shrinkable Nylon Reducing Butt Splice Connectors for electrical cable Step Down splices.

• Heat Shrinkable Nylon Reducing Butt Splice Connectors Material: High Strength Brass
• cULus Listed
• Heat Shrinkable Nylon Reducing Butt Splice Connectors features Step-Down Barrel that allows for transition from larger to smaller conductor with simple In-Line Splice
• Max Current: 26 AWG - 5.5 Amps, 24 AWG - 7 Amps, 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps, 8 AWG - 70 Amps, 6 AWG - 95 Amps, 4 AWG - 125 Amps
• 302°F(150°C) 600 Volts Max
• Insulation: Nylon with PE Heat Shrink
• Electro-Tin Plated for corrosion resistance
• Heat Shrinkable Nylon Reducing Butt Splice Connectors has Center Wire Stop Barrier
