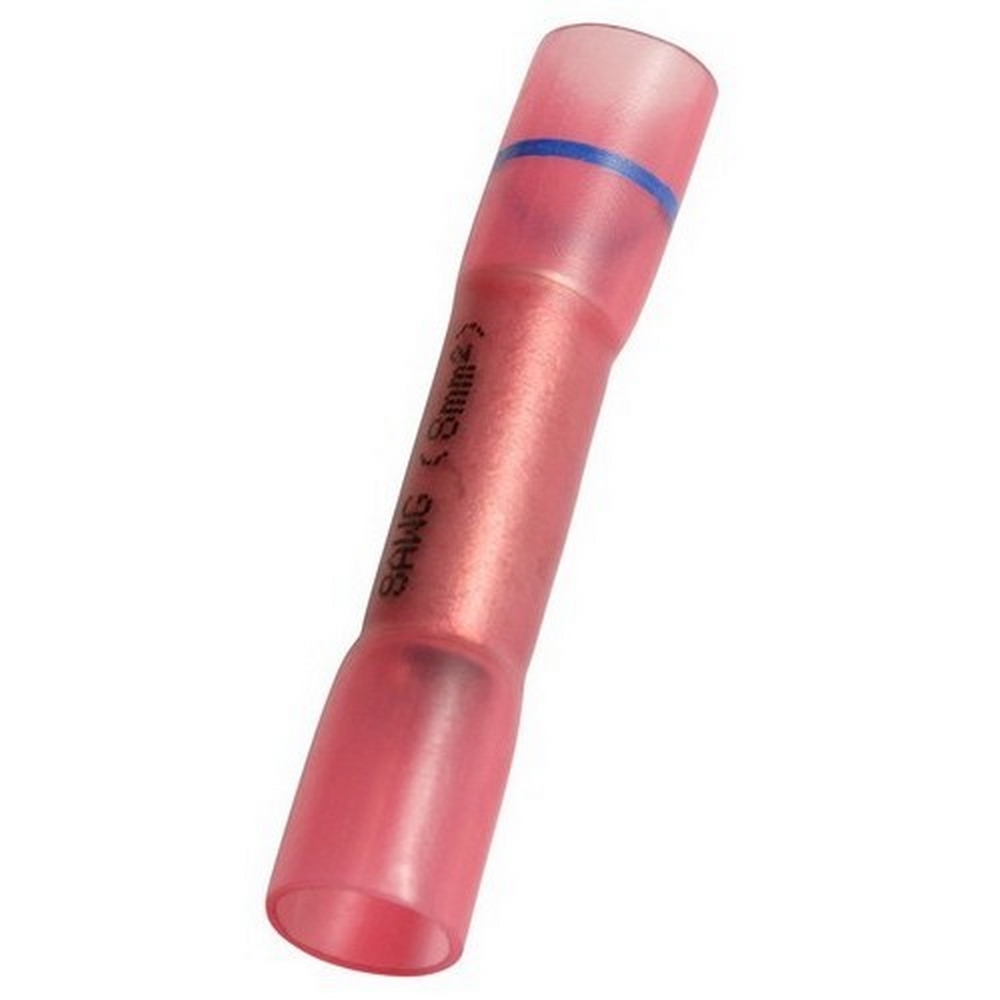

Morris 12342 Heat Shrink Nylon Reducing Butt Splice Connectors for Electrical Cables

Morris 12342 Heat Shrinkable Nylon Reducing Butt Splice Connectors offer a reliable solution for electrical cable step-down splices. Designed with a step-down barrel, these connectors facilitate a seamless transition from larger to smaller conductors, ensuring a straightforward in-line splice that enhances connectivity efficiency. Constructed from high-strength brass and electro-tin plated, these connectors provide exceptional corrosion resistance, making them suitable for various environments. The nylon insulation, paired with PE heat shrink, ensures durability and protection against wear and tear. Additionally, the center wire stop barrier aids in maintaining proper alignment during installation, enhancing performance and reliability. Morris 12342 connectors support a wide range of wire gauges, accommodating from #8 to 16 AWG with a maximum current capacity of up to 125 amps for 4 AWG wires. With a maximum voltage of 600 volts and a temperature rating of 302°F (150°C), these connectors are built to withstand demanding applications. Furthermore, they are cULus listed, guaranteeing compliance with safety standards. Available in a striking red color with a blue ring for easy identification, these connectors can be shipped via UPS, making them a convenient choice for professionals on the go. Ensure your electrical projects are secured with the quality and reliability of Morris 12342 connectors.

Heat Shrinkable Nylon Reducing Butt Splice Connectors for electrical cable Step Down splices.

• Heat Shrinkable Nylon Reducing Butt Splice Connectors Material: High Strength Brass
• cULus Listed
• Heat Shrinkable Nylon Reducing Butt Splice Connectors features Step-Down Barrel that allows for transition from larger to smaller conductor with simple In-Line Splice
• Max Current: 26 AWG - 5.5 Amps, 24 AWG - 7 Amps, 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps, 8 AWG - 70 Amps, 6 AWG - 95 Amps, 4 AWG - 125 Amps
• 302°F(150°C) 600 Volts Max
• Insulation: Nylon with PE Heat Shrink
• Electro-Tin Plated for corrosion resistance
• Heat Shrinkable Nylon Reducing Butt Splice Connectors has Center Wire Stop Barrier

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
