Morris 12343 Heat Shrinkable Nylon Butt Splice Connectors for Electrical Cables

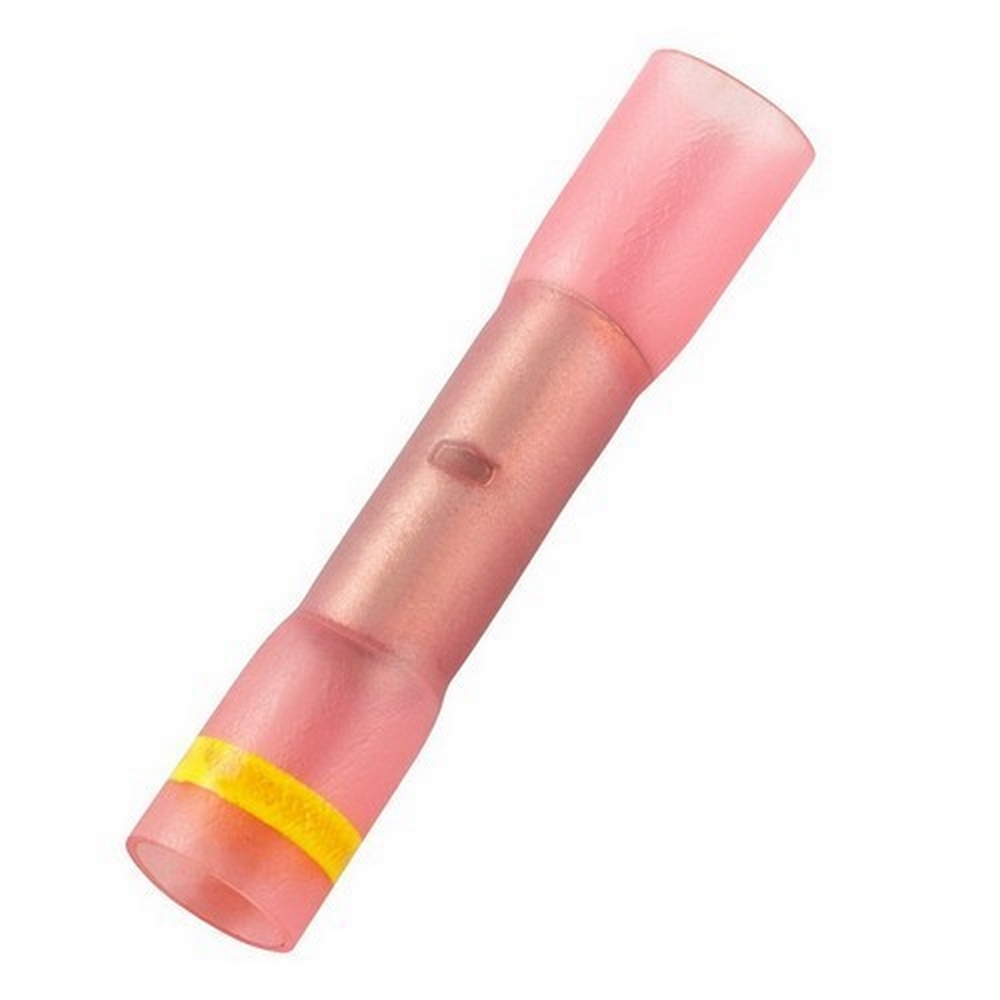

Morris 12343 Heat Shrinkable Nylon Reducing Butt Splice Connectors are designed for efficient step-down splicing in electrical cable applications. Featuring a unique step-down barrel, these connectors facilitate a seamless transition from larger to smaller conductors, ensuring a reliable in-line splice that simplifies your wiring tasks. Constructed from high-strength brass and electro-tin plated, they offer exceptional corrosion resistance, enhancing durability in various environments. The center wire stop barrier ensures proper alignment and positioning of wires, while the nylon insulation with PE heat shrink provides added protection against environmental factors. These connectors support a wide range of current ratings: from 5.5 amps for 26 AWG to an impressive 125 amps for 4 AWG, making them versatile for multiple applications. With a maximum temperature rating of 302°F (150°C) and 600 volts, they are reliable even under demanding conditions. Morris 12343 connectors are cULus listed, assuring compliance with rigorous safety and performance standards. Available in a striking red with a yellow ring, they are easy to identify in any toolbox or job site. Ideal for both professional electricians and knowledgeable DIYers, these connectors make your electrical projects faster and more efficient.

Heat Shrinkable Nylon Reducing Butt Splice Connectors for electrical cable Step Down splices.

• Heat Shrinkable Nylon Reducing Butt Splice Connectors Material: High Strength Brass
• cULus Listed
• Heat Shrinkable Nylon Reducing Butt Splice Connectors features Step-Down Barrel that allows for transition from larger to smaller conductor with simple In-Line Splice
• Max Current: 26 AWG - 5.5 Amps, 24 AWG - 7 Amps, 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps, 8 AWG - 70 Amps, 6 AWG - 95 Amps, 4 AWG - 125 Amps
• 302°F(150°C) 600 Volts Max
• Insulation: Nylon with PE Heat Shrink
• Electro-Tin Plated for corrosion resistance
• Heat Shrinkable Nylon Reducing Butt Splice Connectors has Center Wire Stop Barrier
