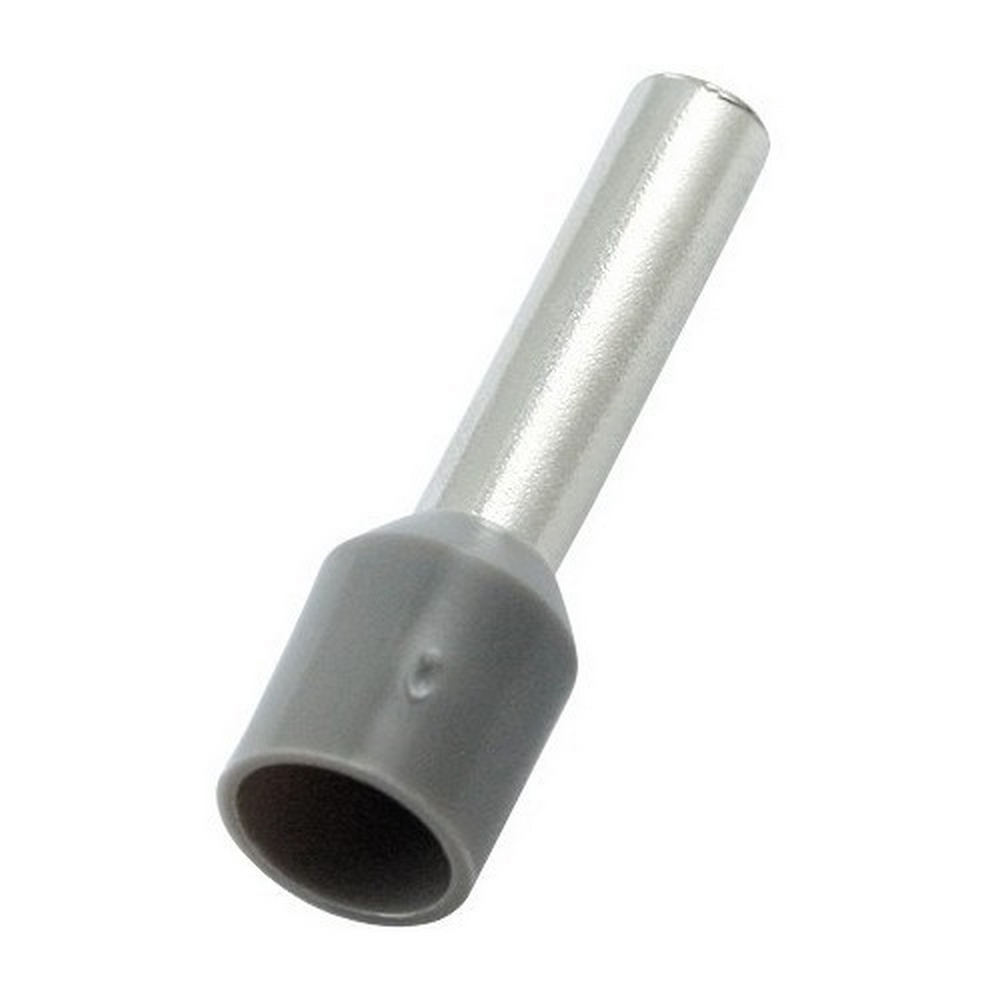

Morris 12720 Nylon Insulated Ferrules for Din Rail Terminal Block Applications

Morris 12720 Nylon Insulated Ferrules are an ideal choice for Din Rail Terminal Block applications and various terminations. Designed to ensure gas-tight connections, these ferrules are compatible with IEC style Din Rail mounted terminal blocks, providing peace of mind in any electrical setup. Manufactured from high-strength electrolytic seamless tubular copper, the Morris 12720 also features an electro-tin plating that enhances corrosion resistance, ensuring long-lasting performance. The flared barrel design simplifies wire insertion, making installation efficient and straightforward. Available in multiple pin lengths, this product accommodates a wide range of terminal block styles, catering to diverse project needs. With a temperature rating of 221°F (105°C) and a maximum voltage of 600 volts, these ferrules are built to withstand demanding conditions. In terms of current handling, the Morris 12720 supports various wire gauges: 22 AWG at 9 amps, 20 AWG at 12 amps, 18 AWG at 17 amps, 16 AWG at 18 amps, 14 AWG at 30 amps, 12 AWG at 35 amps, and 10 AWG at 50 amps. UL recognized for safety and performance, these ferrules are a reliable choice for both building professionals and knowledgeable homeowners.

Our Nylon Insulated Ferrules are perfect for Din Rail Terminal Block Applications and other terminations.

• Flared Barrel for Ease of Wire Insertion
• 221°F (105°C)
• Ensures Gas Tight Termination in IEC Style Din Rail Mounted Terminal Blocks and other Terminations
• Max Current: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps
• Available in Multiple Pin Lengths to accomodate a variety of Terminal Blocks Styles
• 600 Volts Max
• Manufactured from High Strength Electrolytic Seamless Tubular Copper
• UL Recognized
• Electro-Tin Plated for corrosion resistance

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
