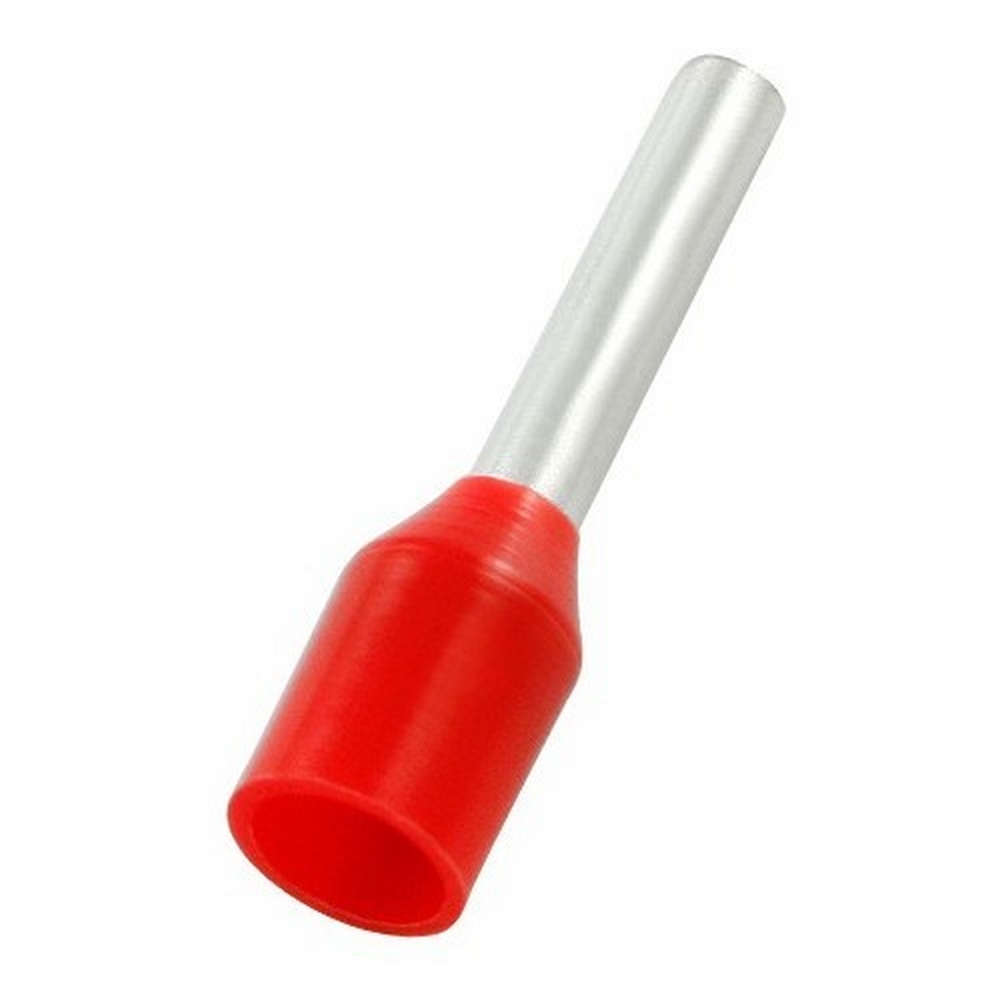

Morris 12758 Nylon Insulated Ferrules for Din Rail Terminal Block Applications

Morris 12758 Nylon Insulated Ferrules are specifically designed for Din Rail Terminal Block applications and various other terminations, ensuring a reliable and gas-tight connection. Crafted from high-strength electrolytic seamless tubular copper, these ferrules provide exceptional durability and performance. The electro-tin plating offers enhanced corrosion resistance, making them suitable for challenging environments. Featuring a flared barrel design, these ferrules facilitate easy wire insertion, streamlining your installation process. Available in multiple pin lengths, they accommodate a wide range of terminal block styles, providing versatility for different projects. With a maximum operating temperature of 221°F (105°C) and a voltage rating of 600 volts, the Morris 12758 Ferrules are engineered to meet the demands of both residential and industrial applications. The current ratings for these ferrules are impressive, allowing for a maximum of 9 amps for 22 AWG, up to 50 amps for 10 AWG, ensuring compatibility with various wire sizes. UL recognized for safety and reliability, these ferrules are an essential component for any electrical setup. With a striking red color and a compact length of 0.886 inches, the Morris 12758 Ferrules deliver both functionality and a professional appearance.

Our Nylon Insulated Ferrules are perfect for Din Rail Terminal Block Applications and other terminations.

• Flared Barrel for Ease of Wire Insertion
• 221°F (105°C)
• Ensures Gas Tight Termination in IEC Style Din Rail Mounted Terminal Blocks and other Terminations
• Max Current: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps
• Available in Multiple Pin Lengths to accomodate a variety of Terminal Blocks Styles
• 600 Volts Max
• Manufactured from High Strength Electrolytic Seamless Tubular Copper
• UL Recognized
• Electro-Tin Plated for corrosion resistance
