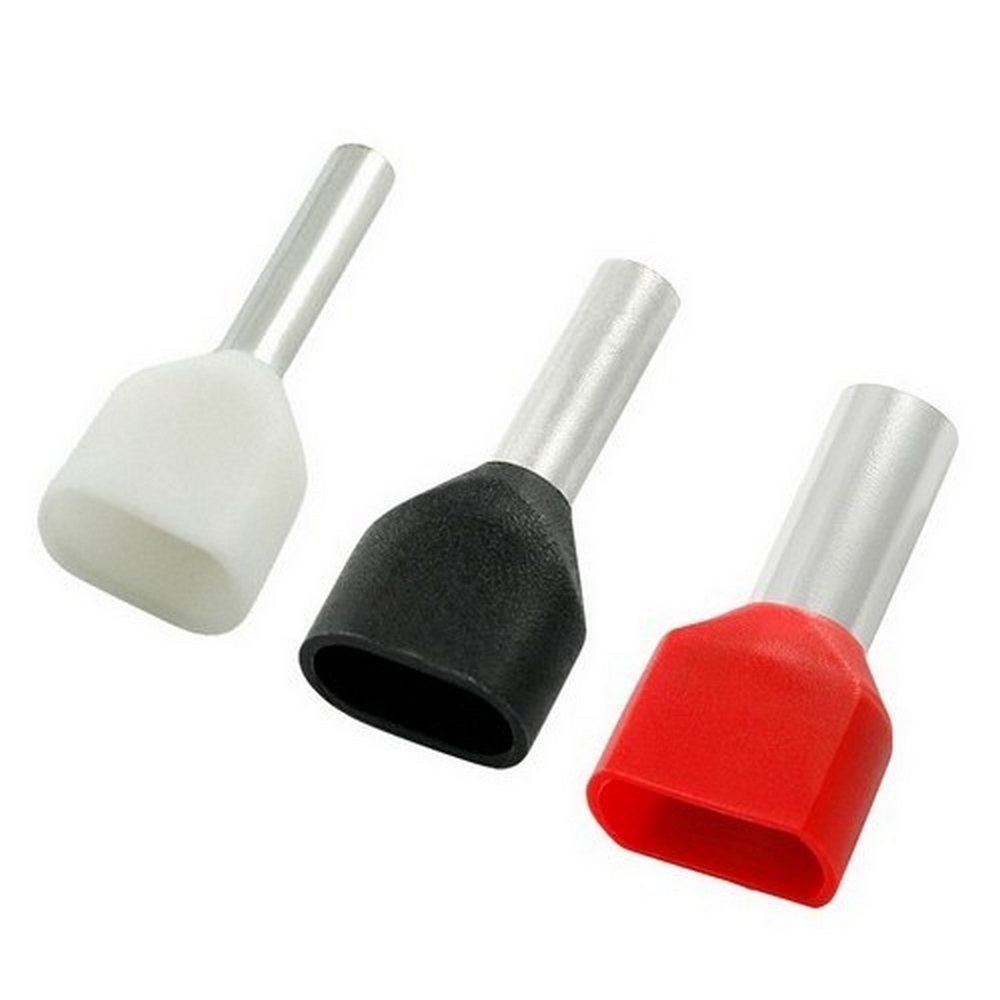

Morris 12780 Nylon Twin Insulated Ferrules for Din Rail Terminal Block Applications

Morris 12780 Nylon Twin Insulated Ferrules are designed to enhance the efficiency of Din Rail Terminal Block applications while accommodating multiple conductors. These ferrules ensure gas-tight termination in IEC style Din Rail mounted terminal blocks, providing a reliable connection that meets industry standards. Manufactured from high-strength electrolytic seamless tubular copper, these ferrules feature electro-tin plating for exceptional corrosion resistance, making them ideal for various environments. The funneled entry design facilitates easy wire insertion, while the dual wire entry allows for the termination of two conductors to a single point, streamlining your installation process. With a maximum voltage rating of 600 volts and operational temperatures up to 221°F (105°C), the Morris 12780 is engineered to handle a range of applications. Its specifications accommodate various wire sizes, with maximum current ratings of 9 amps for 22 AWG, up to 50 amps for 10 AWG. The product is UL Recognized, ensuring compliance with safety standards. Available in multiple pin lengths, the Morris 12780 Nylon Twin Insulated Ferrules provide versatility and reliability, making them an essential component for professionals looking to achieve optimal performance in their electrical installations.

Our Nylon Twin Insulated Ferrules 2 Wire are perfect for Din Rail Terminal Block Applications and accomodate multiple conductors.

• 221°F (105°C)
• Max Current: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps
• Ensures Gas Tight Termination in IEC Style Din Rail Mounted Terminal Blocks
• Available in Multiple Pin Lengths to accomodate a variety of Terminal Blocks Styles
• 600 Volts Max
• Manufactured from High Strength Electrolytic Seamless Tubular Copper
• Funneled Entry for Ease of Wire Insertion
• Dual Wire Entry Design facilitates termination of 2 Conductors to a single point according to DIN Standards
• UL Recognized
• Electro-Tin Plated for corrosion resistance
