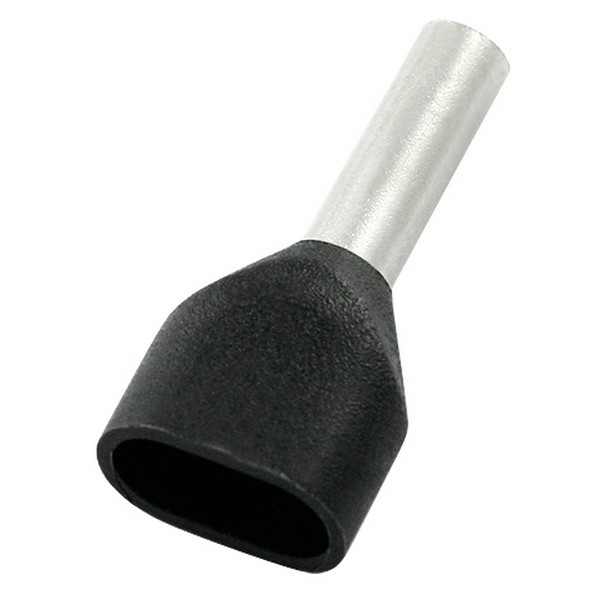

Morris 12785 Nylon Twin Insulated Ferrules for Din Rail Terminal Blocks

Morris 12785 Nylon Twin Insulated Ferrules are designed to meet the demands of Din Rail Terminal Block applications, accommodating multiple conductors efficiently. These ferrules ensure gas-tight terminations in IEC-style Din Rail mounted terminal blocks, providing both reliability and safety in electrical installations. Manufactured from high-strength electrolytic seamless tubular copper, the Morris 12785 ferrules are electro-tin plated for enhanced corrosion resistance, ensuring long-lasting performance. The funneled entry allows for ease of wire insertion, while the dual wire entry design facilitates the termination of two conductors to a single point, adhering to DIN standards. These versatile ferrules are available in multiple pin lengths, making them compatible with various terminal block styles. Rated for a maximum temperature of 221°F (105°C) and 600 volts, they can handle different wire gauges with ease: 22 AWG at 9 amps, 20 AWG at 12 amps, 18 AWG at 17 amps, 16 AWG at 18 amps, 14 AWG at 30 amps, 12 AWG at 35 amps, and 10 AWG at 50 amps. Recognized by UL, the Morris 12785 Nylon Twin Insulated Ferrules are a reliable choice for professionals seeking quality components for their electrical projects.

Our Nylon Twin Insulated Ferrules 2 Wire are perfect for Din Rail Terminal Block Applications and accomodate multiple conductors.

• 221°F (105°C)
• Max Current: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps
• Ensures Gas Tight Termination in IEC Style Din Rail Mounted Terminal Blocks
• Available in Multiple Pin Lengths to accomodate a variety of Terminal Blocks Styles
• 600 Volts Max
• Manufactured from High Strength Electrolytic Seamless Tubular Copper
• Funneled Entry for Ease of Wire Insertion
• Dual Wire Entry Design facilitates termination of 2 Conductors to a single point according to DIN Standards
• UL Recognized
• Electro-Tin Plated for corrosion resistance
