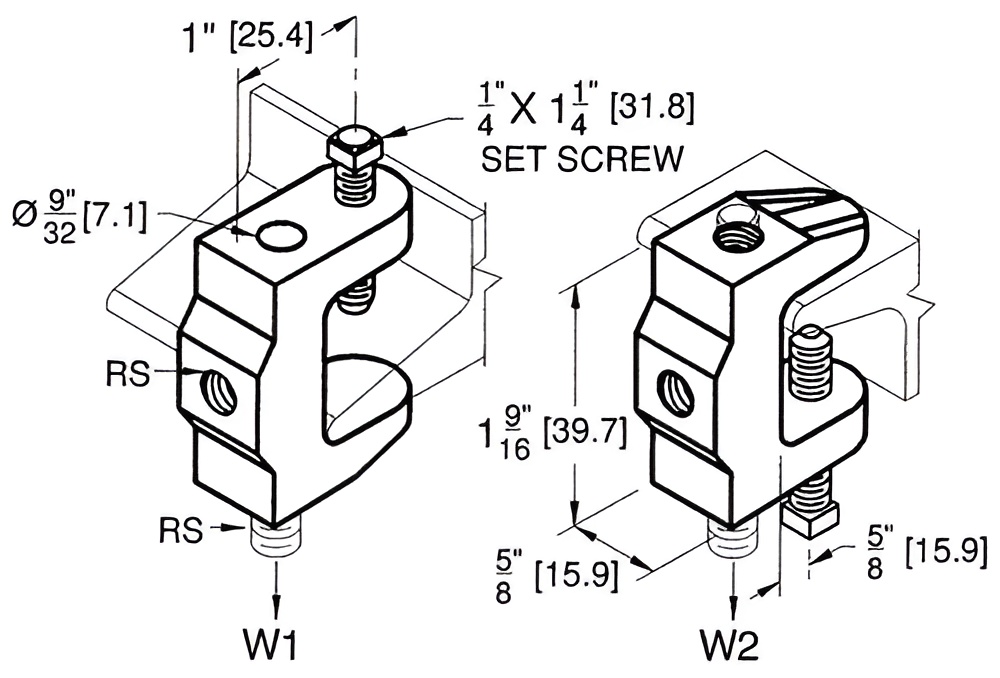

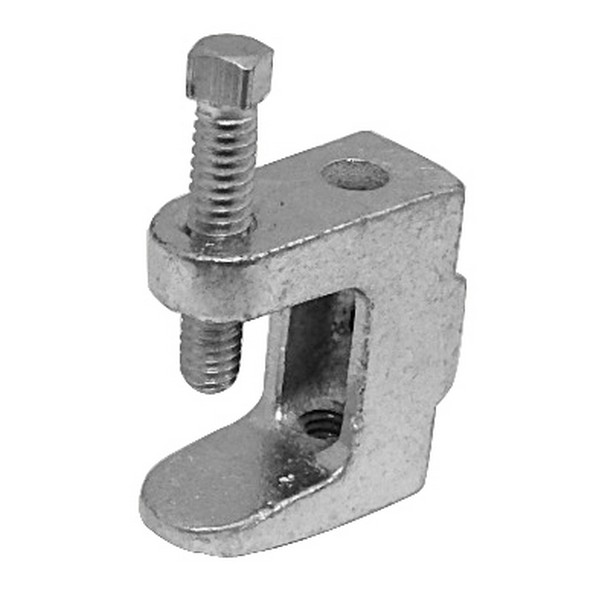

Morris 17486 Zinc Plated Universal Beam Clamp with threaded hole offers versatility and reliability for a variety of applications. Designed to accommodate a maximum flange thickness of 5/8", this universal beam clamp is ideal for securing cables and other components in both residential and commercial settings. The clamp features a zinc electro-plate finish, ensuring enhanced corrosion resistance and durability, making it suitable for long-term use in various environments. The clamp’s design includes a threaded hole on the back side, providing additional mounting options, though it is important to note that this hole is not load rated. For optimal performance, the clamp supports a maximum load of 250 lbs when mounted with a bolt on the bottom orientation and up to 100 lbs when mounted on the top. The rod size is specified at 1/4"-20, making it compatible with standard hardware. Morris Products is known for its commitment to quality, and the 17486 beam clamp is no exception. It ships easily via UPS, making it a convenient choice for contractors and builders alike. Ensure your projects are secure and compliant with the reliability of Morris beam clamps. Please be aware of the warning regarding cancer and reproductive harm associated with this product.
Zinc Plated Universal Beam Clamp with threaded hole.
Bolt On Bottom Orientation Max Load: 250 lbs.
Bolt On Top Orientation Max Load: 100 lbs.
Country of Origin: Usa
Description: Malleable Iron Universal Beam Clamp 1/4"-20
Material: Malleable Iron
Rod Size ( RS): 1/4"-20
Strut Accessory Type: Beam Clamp Universal - Malleable Iron
Type: Mallable Iron Universal Beam Clamp
Upc: 601986174862
Warning: Cancer and Reproductive Harm
