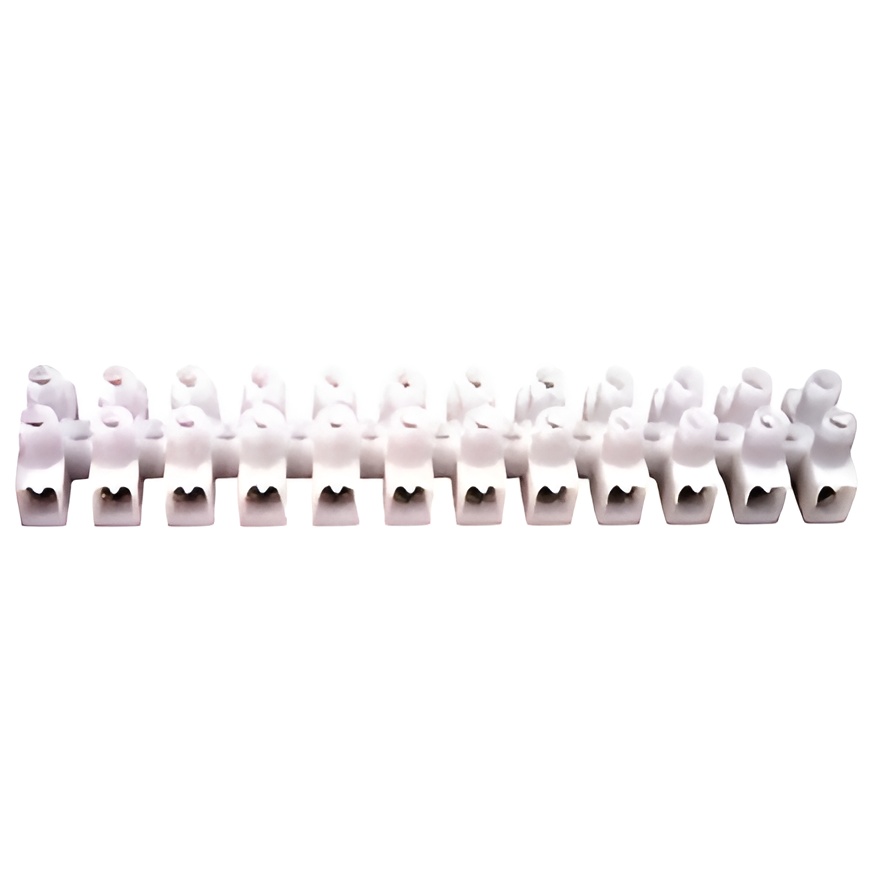

Morris 22156 Electrical Terminal Blocks for Reducing Short Circuits

Morris 22156 Electrical Terminal Blocks are designed to enhance safety and reliability in electrical installations, effectively reducing the risk of short circuits. These terminal blocks feature touchproof recessed screws and tubular contacts, which not only provide added safety but also facilitate a secure connection for stripped, un-terminated solid or stranded wires. Constructed with integrated stainless steel spring wire protectors, they prevent twisting and breakage during termination, ensuring a long-lasting and reliable performance. The modular 12-circuit design allows for easy customization, enabling users to cut the blocks into smaller sections or stack them end-to-end as needed. The dead front design further safeguards against shorts, enhancing overall system integrity. Crafted from rugged Nylon 66 housing with a UL 94V2 rating, these terminal blocks can withstand operating temperatures up to 230°F (110°C). The brass metal alloy, nickel-plated terminal insert, and zinc-plated, yellow chromated screws contribute to their durability. Suitable for both AC and DC applications, the Morris 22156 is cURus/CSA listed, ensuring compliance with industry standards. With a wire range of 22-10 AWG and a current rating of 35 amps at 300 volts, these terminal blocks are packaged in a convenient header card 2-pack, ready to meet your electrical needs.

These Electrical Terminal Blocks cut down on short circuits.

• Touchproof recessed screws and tubular contacts on these electrical terminal blocks provide added safety and helps prevent short circuits
• Dead front design to prevent shorts
• Brass Metal Alloy, Nickel Plated Terminal Insert
• Tubular contacts connect stripped, un-terminated solid or stranded wire directly to each contact
• Zinc Plated, yellow Chromated screws
• Modular 12-circuit design can be cut into smaller sections or stacked end-to-end
• Operating temperature rated at 230°F(110°C)
• Can be used for AC & DC applications
• cURus/CSA Listed
• Rugged Nylon 66 housing, UL 94V2
• Integrated Stainless Steel spring wire protectors prevent twisting and breakage of stranded wire during termination
