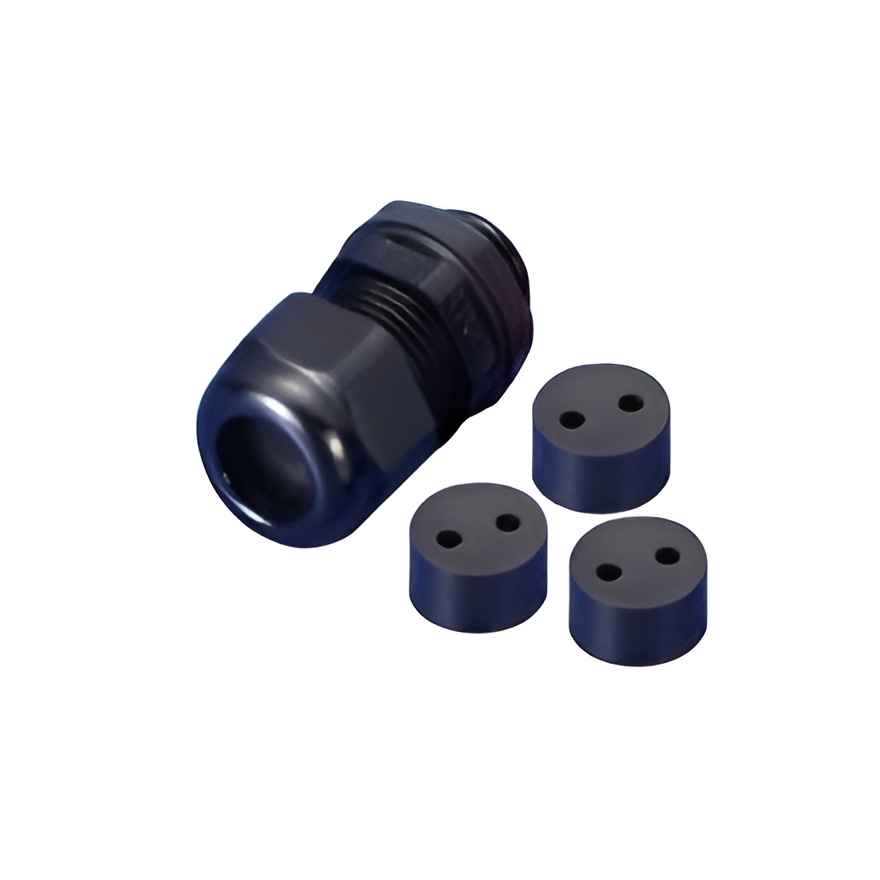

Morris 22231 Multi-Conductor Watertight NPT Thread Cable Glands

Morris 22231 Multi-Conductor NPT Thread Cable Glands are engineered for durability and watertight performance, accommodating multiple conductors with ease. Featuring a multi-hole design, these cable glands effectively organize several cables within a single gland, ensuring a neat and secure installation. The innovative seal and clamp system allows for a circular tightening sequence around the sealing ring, providing exceptional strain relief without the risk of twisting or damaging the cables. Installation is straightforward-simply push the cable through the liquid-tight nylon strain relief and tighten the locknut to finish the job quickly. Designed to thread into your panel for added clearance, these glands are built for efficiency. With an internal ratchet and self-locking feature, the Morris 22231 protects against vibrations, making them suitable for various applications. The collet design accommodates a range of cable sizes, enhancing versatility. Made from UL-approved Nylon 66, 94V-2, these glands are not only resistant to common chemicals and solvents but also boast an IP68 rating for submersible and dustproof capabilities. Rated for temperatures from -22°F to 140°F, the Morris 22231 Multi-Conductor NPT Thread Cable Glands are an ideal choice for building professionals seeking reliability and performance in their electrical installations.

Multi-Conductor NPT Thread Cable Glands are watertight, durable and accomodate multiple conductors.

• No disassembly required
• Internal Ratchet with Self-Locking feature protects against vibrations
• Simply push the cable through the liquid tight Nylon strain relief & tighten locknut for quick installation
• Threads into your panel for clearance
• Made of UL approved NYLON 66, 94V-2 (Black)
• Wide Clamping Range
• ‘Collet' design of body accommodates various size cords, cables, tubing, etc.
• For best results, use the minimum size that fits into your cable
• Easy to Assemble
• Screw cable glands into NPT Thread (National Pipe Thread)
• Multi-Hole Design organizes multiple cables with in a gland
• IP68 Rated Submersible & Dustproof
• 94V-2 Flame Rating
• Temperature Rating: -22°F to 140°F
• Watertight
• UL Recognized
• Nylon NPT thread cable glands body material is resistant to most common chemicals & solvents
• Seal & clamp system allows the cord connector to tighten in a circular sequence on the sealing ring to give outstanding strain relief without twisting or damaging the cable
