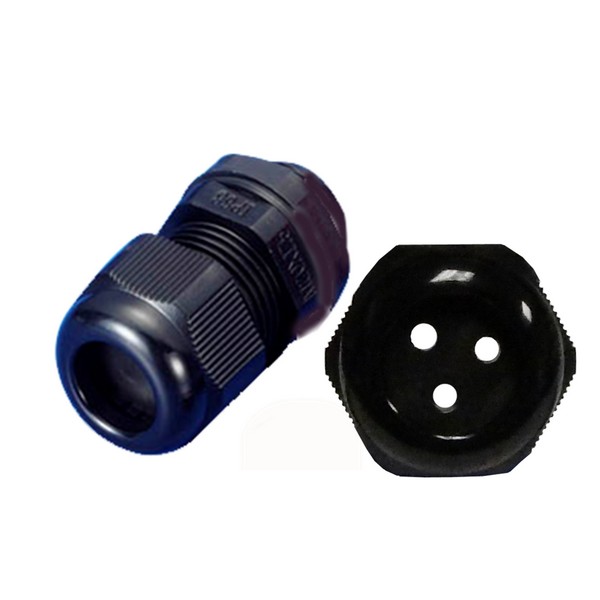

Morris 22254 Multi-Conductor NPT Thread Cable Glands - Watertight Durable

Morris 22254 Multi-Conductor NPT Thread Cable Glands are designed to provide a watertight seal while accommodating multiple conductors, making them ideal for various applications. Featuring a multi-hole design, these cable glands help organize multiple cables within a single unit, ensuring a tidy and efficient setup. The innovative seal and clamp system allows the cord connector to tighten in a circular sequence on the sealing ring, delivering outstanding strain relief without twisting or damaging the cables. Installation is quick and straightforward-simply push the cable through the liquid-tight nylon strain relief and tighten the locknut. The internal ratchet with a self-locking feature protects against vibrations, enhancing reliability. These cable glands thread easily into NPT (National Pipe Thread) for optimal clearance and are constructed from UL approved Nylon 66, 94V-2, which is resistant to most common chemicals and solvents. With an IP68 rating, they are both submersible and dustproof, ensuring robust performance in challenging environments. The wide clamping range accommodates cords, cables, and tubing with diameters ranging from .102" to .142". For best results, choose the minimum size that fits your cable, and enjoy the ease of assembly with no disassembly required. With a temperature rating of -22°F to 140°F, the Morris 22254 is built to endure.

Multi-Conductor NPT Thread Cable Glands are watertight, durable and accomodate multiple conductors.

• No disassembly required
• Internal Ratchet with Self-Locking feature protects against vibrations
• Simply push the cable through the liquid tight Nylon strain relief & tighten locknut for quick installation
• Threads into your panel for clearance
• Made of UL approved NYLON 66, 94V-2 (Black)
• Wide Clamping Range
• ‘Collet' design of body accommodates various size cords, cables, tubing, etc.
• For best results, use the minimum size that fits into your cable
• Easy to Assemble
• Screw cable glands into NPT Thread (National Pipe Thread)
• Multi-Hole Design organizes multiple cables with in a gland
• IP68 Rated Submersible & Dustproof
• 94V-2 Flame Rating
• Temperature Rating: -22°F to 140°F
• Watertight
• UL Recognized
• Nylon NPT thread cable glands body material is resistant to most common chemicals & solvents
• Seal & clamp system allows the cord connector to tighten in a circular sequence on the sealing ring to give outstanding strain relief without twisting or damaging the cable

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
