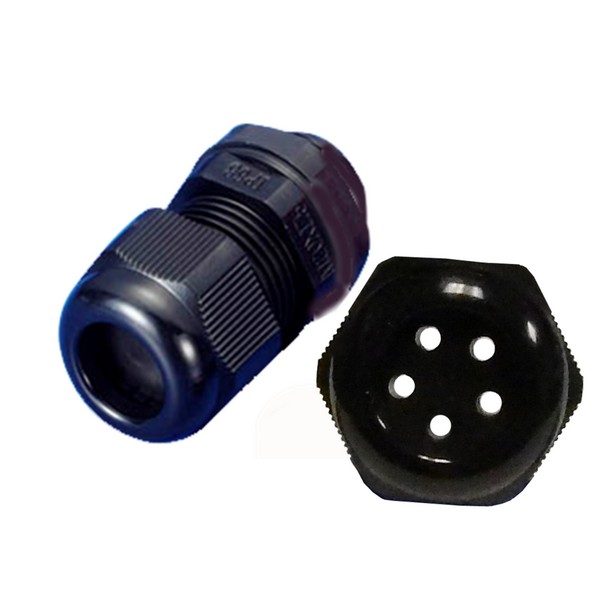

Morris 22283 Multi-Conductor Watertight NPT Thread Cable Glands

Morris 22283 Multi-Conductor NPT Thread Cable Glands are designed to provide a watertight and durable solution for organizing multiple conductors. Featuring a multi-hole design, these cable glands effectively manage various cables within a single gland, ensuring neat and efficient installations. The innovative seal and clamp system allows for a circular tightening sequence on the sealing ring, delivering exceptional strain relief without twisting or damaging the cable. Installation is straightforward-simply push the cable through the liquid-tight nylon strain relief and tighten the locknut. With NPT (National Pipe Thread) compatibility, the gland threads seamlessly into your panel for added clearance. Constructed from UL-approved Nylon 66, 94V-2, these cable glands are resistant to most common chemicals and solvents, making them ideal for a variety of environments. The internal ratchet with a self-locking feature protects against vibrations, while the wide clamping range accommodates cables with diameters ranging from .118" to .161". Rated IP68, these glands are both submersible and dustproof, ensuring reliability in challenging conditions. With a temperature rating of -22°F to 140°F, Morris 22283 Multi-Conductor NPT Thread Cable Glands are a robust choice for any professional looking for quality and performance in cable management solutions.

Multi-Conductor NPT Thread Cable Glands are watertight, durable and accomodate multiple conductors.

• No disassembly required
• Internal Ratchet with Self-Locking feature protects against vibrations
• Simply push the cable through the liquid tight Nylon strain relief & tighten locknut for quick installation
• Threads into your panel for clearance
• Made of UL approved NYLON 66, 94V-2 (Black)
• Wide Clamping Range
• ‘Collet' design of body accommodates various size cords, cables, tubing, etc.
• For best results, use the minimum size that fits into your cable
• Easy to Assemble
• Screw cable glands into NPT Thread (National Pipe Thread)
• Multi-Hole Design organizes multiple cables with in a gland
• IP68 Rated Submersible & Dustproof
• 94V-2 Flame Rating
• Temperature Rating: -22°F to 140°F
• Watertight
• UL Recognized
• Nylon NPT thread cable glands body material is resistant to most common chemicals & solvents
• Seal & clamp system allows the cord connector to tighten in a circular sequence on the sealing ring to give outstanding strain relief without twisting or damaging the cable
