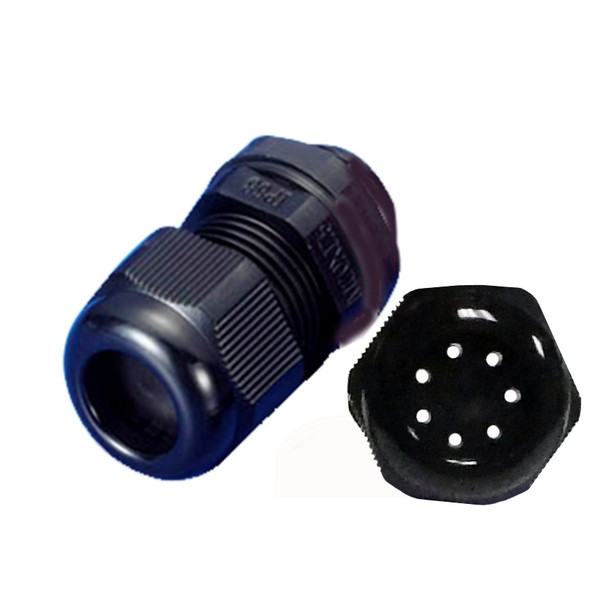

Morris 22310 Multi-Conductor Watertight NPT Thread Cable Glands

Morris 22310 Multi-Conductor NPT Thread Cable Glands provide a reliable and watertight solution for managing multiple conductors in various applications. Designed with a multi-hole configuration, these cable glands effectively organize several cables within a single unit, enhancing efficiency and reducing clutter. The innovative seal and clamp system tightens in a circular sequence on the sealing ring, delivering exceptional strain relief while preventing cable twisting and damage. Installation is a breeze-simply push the cable through the liquid-tight nylon strain relief and secure it with the locknut. The internal ratchet with a self-locking feature ensures that the glands remain secure, even in vibrating environments. Crafted from UL approved Nylon 66, 94V-2, and rated IP68, these cable glands are not only submersible and dustproof but also resistant to common chemicals and solvents. With a temperature rating of -22°F to 140°F, they are versatile enough for various conditions. The wide clamping range accommodates different cable sizes, making them perfect for a range of electrical and lighting applications. Designed for ease of assembly, the Morris 22310 cable glands require no disassembly and feature a 1" NPT thread for straightforward integration into your electrical panel.

Multi-Conductor NPT Thread Cable Glands are watertight, durable and accomodate multiple conductors.

• No disassembly required
• Internal Ratchet with Self-Locking feature protects against vibrations
• Simply push the cable through the liquid tight Nylon strain relief & tighten locknut for quick installation
• Threads into your panel for clearance
• Made of UL approved NYLON 66, 94V-2 (Black)
• Wide Clamping Range
• ‘Collet' design of body accommodates various size cords, cables, tubing, etc.
• For best results, use the minimum size that fits into your cable
• Easy to Assemble
• Screw cable glands into NPT Thread (National Pipe Thread)
• Multi-Hole Design organizes multiple cables with in a gland
• IP68 Rated Submersible & Dustproof
• 94V-2 Flame Rating
• Temperature Rating: -22°F to 140°F
• Watertight
• UL Recognized
• Nylon NPT thread cable glands body material is resistant to most common chemicals & solvents
• Seal & clamp system allows the cord connector to tighten in a circular sequence on the sealing ring to give outstanding strain relief without twisting or damaging the cable
