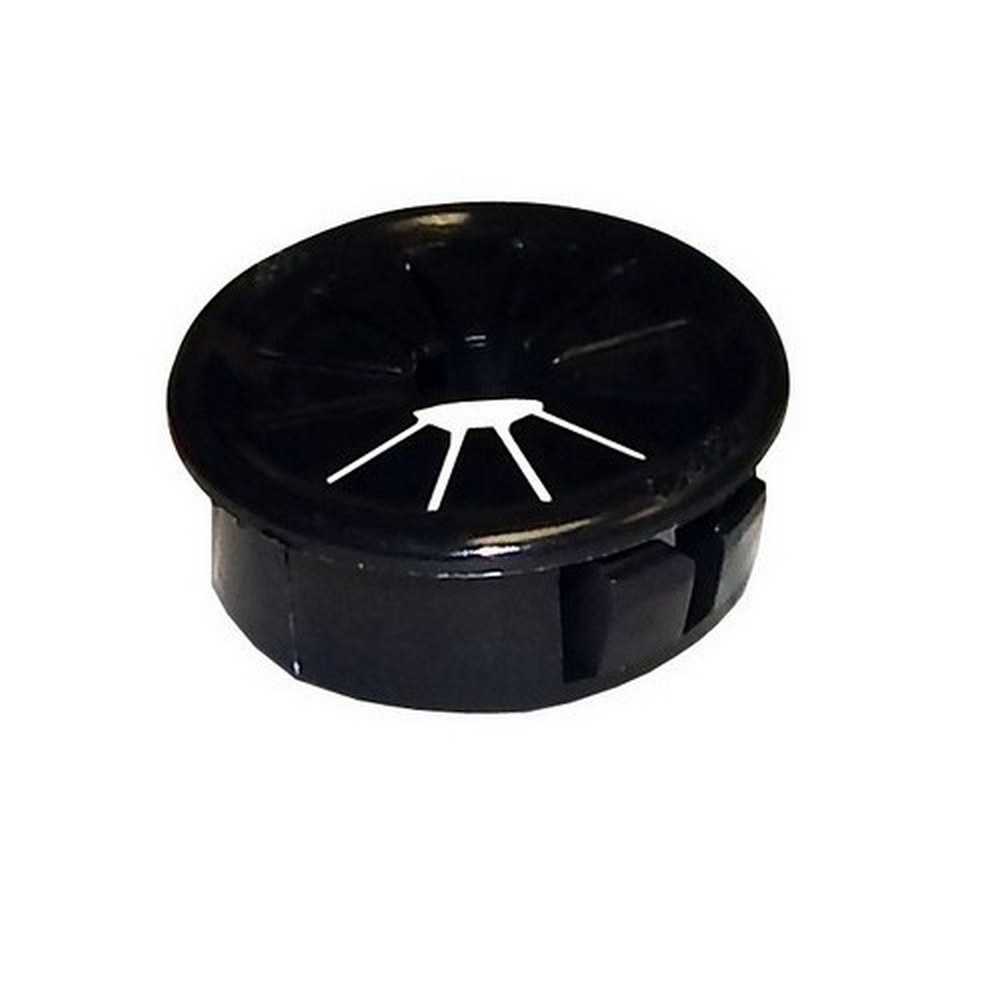

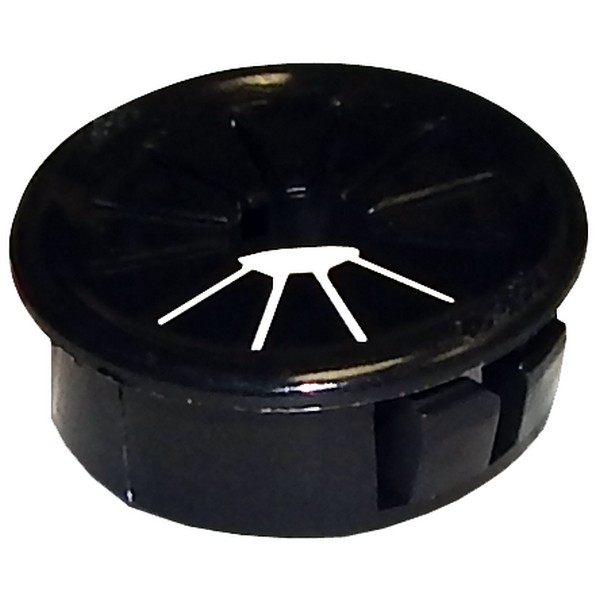

Morris 22350 Snap Bushings with Shutters - Easy Installation

Morris 22350 Snap Bushings with Shutters offer a straightforward installation solution for various cable and hose applications. Designed with flexible shutters, these bushings accommodate cable sizes ranging from a minimum of 1/8" to a maximum as specified in the accompanying table, ensuring versatility for your projects. The built-in snap feature locks the bushing into a mounting hole with just fingertip pressure, greatly simplifying the installation process. Constructed from UL approved Nylon 6/6, 94V-2, these snap bushings are engineered to absorb vibrations, providing essential cushioning for cables, tubes, and other components. The universal design enables them to hold a wide range of cable diameters, with a maximum internal diameter of 0.80". The mounting hole diameter measures 1.00", and the overall height of the bushing is 0.44", making it an efficient choice for various applications. With a maximum steel thickness of 1/8", the Morris 22350 Snap Bushings are both durable and functional, making them ideal for residential, commercial, and industrial settings. Please note that there is a warning regarding cancer and reproductive harm associated with this product. For ease of shipping, these bushings can be conveniently sent via UPS. Upgrade your installation process with Morris 22350 Snap Bushings today!

Our Snap Bushings with Shutters are simple to install.

• Fingertip pressure snap-locks the bushing into the mounting hole
• 1/8" maximum Steel thickness
• Snap bushings with shutters absorb vibration & cushion cables, tubes, etc.
• Universal design to hold various cable ranges
• Flexible shutters to accommodate a variety of cable & hose sizes from a minimum of 1/8" to a maximum as shown in the table
• Snap bushings are made from UL approved Nylon 6/6, 94V-2

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
