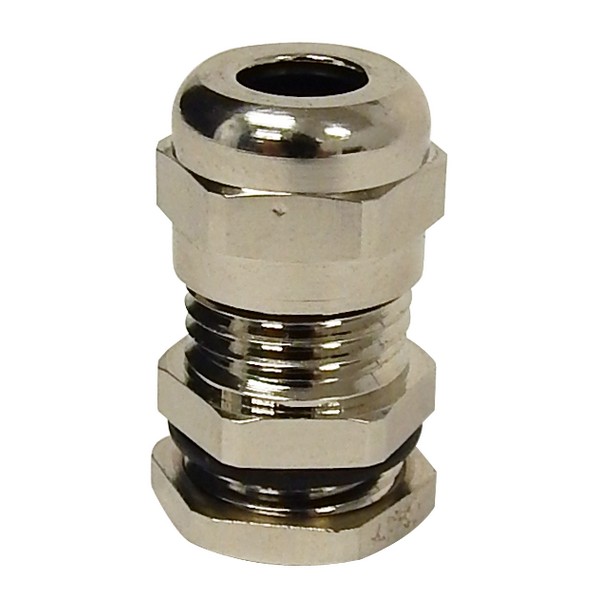

Morris 22593 Metal Cable Glands for Introducing Cables into Metal Housings

Morris 22593 Metal Cable Glands are expertly designed to facilitate the introduction of cables or leads into metal housings, ensuring secure and efficient connections. These cable glands feature metric threads, now standard in the industry, making them ideal replacements for PG cable glands. They are specifically engineered for use in areas classified as zone 1 (2G) and zone 21 (1D), where there is no risk of explosion, accommodating both reinforced and non-reinforced cables. Constructed from brass with a nickel plating, these glands are built to withstand harsh environments, boasting a working temperature range of -40°F to 212°F. The integrated neoprene grommet provides additional protection against dust and moisture, while the IP 68 (NEMA 6P) rating ensures they are submersible and dustproof, making them suitable for a variety of industrial applications. With a cable range of 0.24" to 0.48" and a metric size of M20, the Morris 22593 Metal Cable Glands are versatile and reliable. Whether you’re working on residential, commercial, or industrial projects, trust in Morris Products to deliver quality components that meet your needs. Please be aware of the warning regarding cancer and reproductive harm associated with this product.

Our Metal Cable Glands are Used to introduce cables or leads into metal housings.

• Brass Nickel Plated
• Designed for use in areas of zone 1(2G) and 21(1D) with no risk of explosion and for cables with and without reinforcement
• Working Temp: -40°F to 212°F
• Neoprene Grommet
• Cable Glands with Metric Threads are Now Standard and Replacements for the PG Cable Glands
• Metric Thread
• IP 68 (NEMA 6P) rated - Submersible & Dustproof
• Used to introduce cables or leads into metal housings, or to introduce reinforced cables

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
