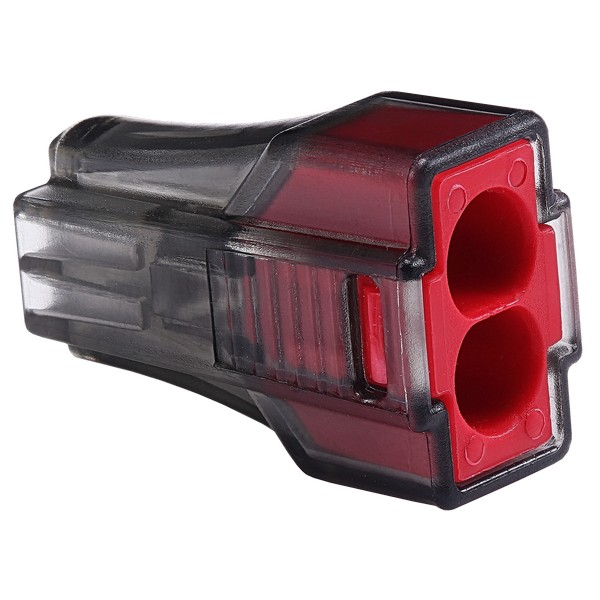

Morris 23009 Easy Push Wire Connectors Fast Alternative to Wire Nuts

Morris 23009 Easy Push Wire Connectors offer a fast and effective alternative to traditional wire nuts, streamlining your wiring projects with ease. Designed for simplicity, these connectors allow for quick installation-just push the wires into the contact port without the need for twisting or taping, saving you both time and money. Compatible with both stranded and solid wire, the Morris 23009 connectors feature a low wire insertion force, ensuring fast and effortless connections. Their no-twist design helps reduce repetitive motion fatigue, making them ideal for extensive wiring jobs. The see-thru housing allows for visual inspection of connections, while the integrated test port facilitates continuity testing. Constructed with an electrolytic tin-plated internal copper bus, these connectors provide high conductivity for reliable performance. The polycarbonate housing is flame retardant (UL 94V-2), ensuring safety even in demanding environments. Suitable for voltages up to 600V and operating temperatures of 221°F (105°C), these connectors are UL listed for copper conductors only. Each connector features two ports and supports a wire range of 18-2 for solid wires and 18-12 for stranded wires. Choose Morris 23009 for a dependable and efficient wiring solution.

These Easy Push Wire Connectors are Fast and Effective Alternative to Wire Nuts.

• Easy Push-In Wire Connectors are simple to install - instead of Twisting or Taping, simply Push Wires Into Contact Port to save you time and money
• Test Port for Continuity Testing
• UL Listed for Copper Conductors only
• No-Twist Connection reduces repetitive motion fatigue
• Housing Material: Polycarbonate, UL 94V-2 flame retardant
• Working Temperature: 221°F (105°C)
• Accepts Either Stranded or Solid Wire
• Voltage: 600V
• Low Wire Insertion Force allows fast, easy connections
• See-thru for visual connection inspection
• Electrolytic Tin-Plated Internal Copper Bus for high conductivity
