Morris 23072 Color-Coded Screw-On Wire Connectors for Quick Connections

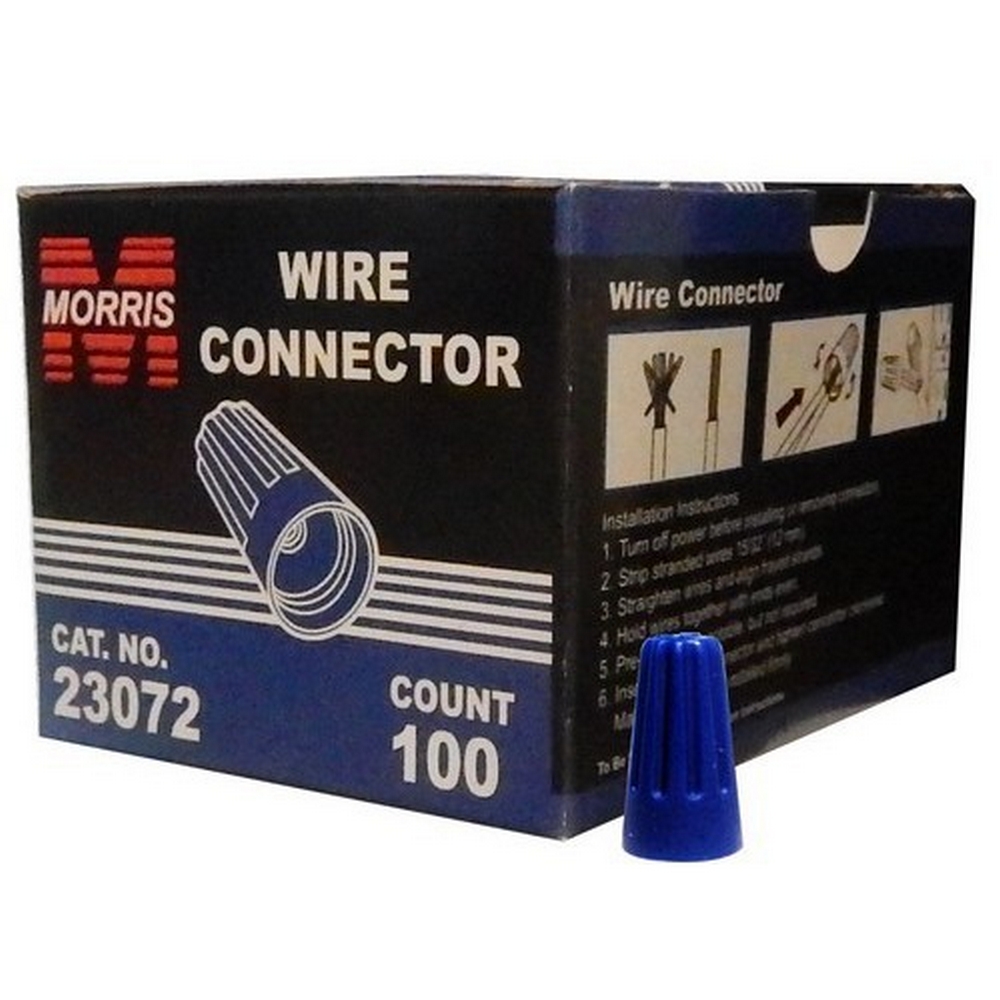

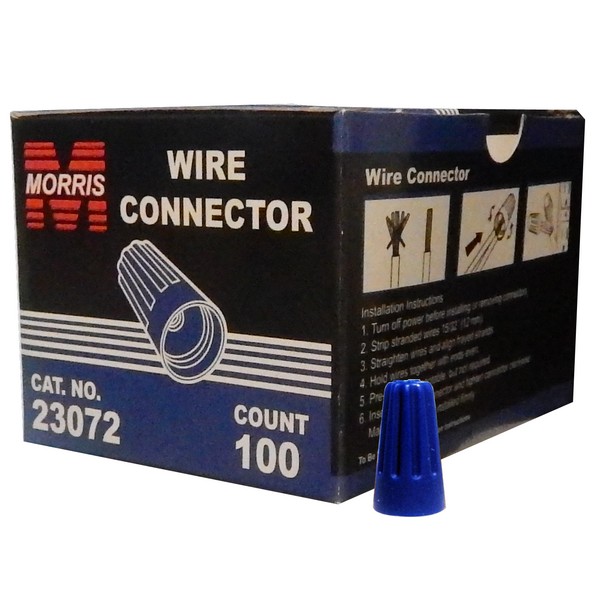

Morris 23072 Screw-On Wire Connectors offer a reliable solution for quick and efficient electrical connections. Designed with a fixed precise conical wire spring, these connectors eliminate the need for pre-twisting conductors, allowing the spring to create its own thread for secure attachment. This feature not only streamlines installation but also makes for fast and easy circuit changes and additions, providing versatility in various applications. Constructed with a tough, UL 94V-2 flame-retardant shell, these connectors are built to withstand extreme pressure without cracking or breaking. The ribbed cap enhances grip, ensuring easy handling even in slippery conditions. The deep skirt wire entry protects against flash-overs and shorts, while the threaded funnel entry guides wires into the connector cleanly, preventing strand splaying. Morris 23072 connectors are temperature rated at a maximum of 221°F (105°C) and are cULus listed, ensuring compliance with safety standards. With a maximum voltage of 300V, they accommodate wire combinations with a maximum of 3 #16 and a minimum of 2 #22. Packaged in a convenient box of 100, these color-coded blue connectors provide a practical choice for both building professionals and knowledgeable homeowners.

Screw-On Wire Connectors - Color-Coded Screw On Wire Connectors for quick connections anytime.

• Threaded Funnel Entry Guides Wire Into Connector Cleanly without Strand Splaying
• Deep Skirt Wire Entry Provides Protection from Flash-Over and Shorts
• cULus Listed
• Fixed Precise Conical Wire Spring
• Ribbed-Cap Provides a more Secure Grip and faster fingertip starts even when hands become slippery
• No Pre-Twisting of Conductors is Required – Spring Creates its Own Thread
• Reusable Screw on Wire Connector Threads On or Off splice for fast and easy circuit changes and additions
• Tough, UL 94V-2 Flame Retardant Shell will not crack or break, even when applied to maximum wire combinations under extreme pressure
• Temperature Rated at 221°F (105°C) maximum
