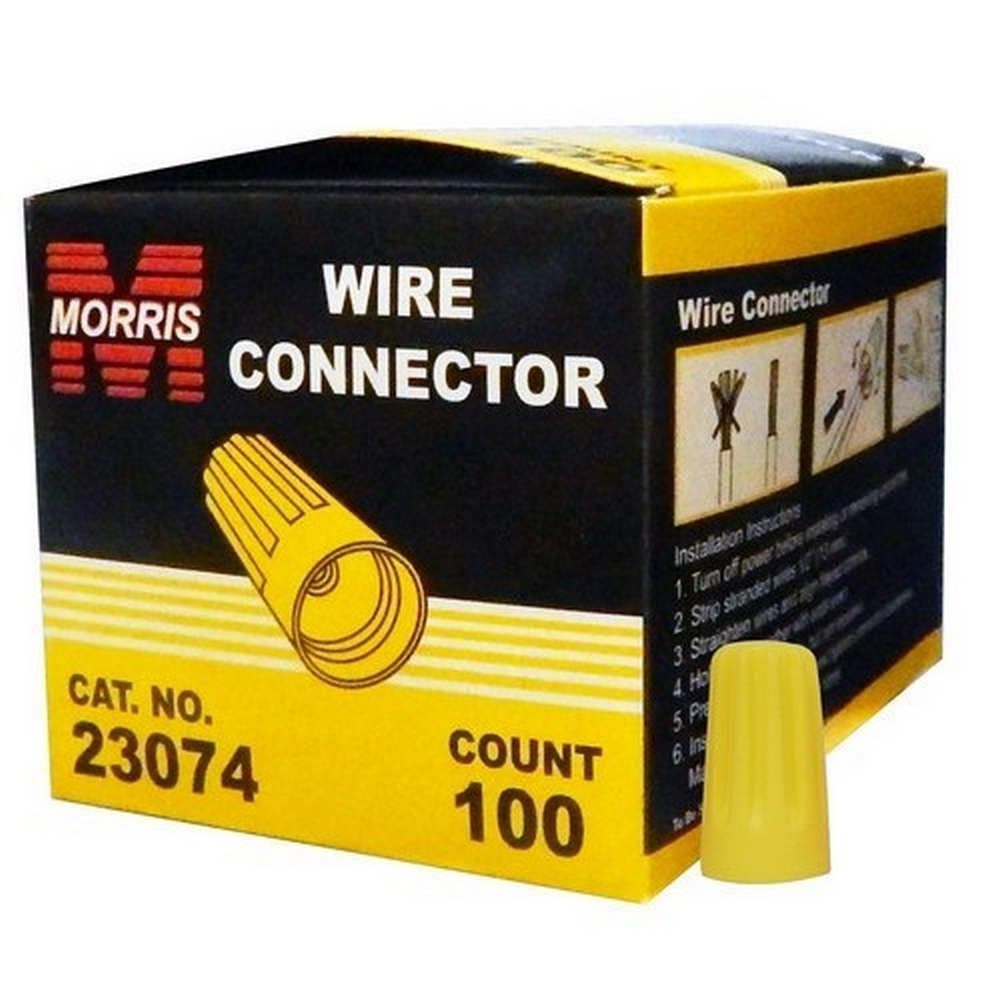

Morris 23074 Color-Coded Screw-On Wire Connectors for Quick Connections

Morris 23074 Screw-On Wire Connectors offer a simple and efficient solution for making reliable electrical connections. Designed with a precision conical wire spring, these connectors eliminate the need for pre-twisting conductors, allowing the spring to create its own threads. This feature not only speeds up the installation process but also makes circuit changes and additions a breeze, as the connectors can be easily threaded on or off. Constructed from a tough, UL 94V-2 flame-retardant shell, the Morris 23074 connectors are built to withstand extreme conditions without cracking or breaking, even when handling maximum wire combinations under pressure. The ribbed cap ensures a secure grip, facilitating quicker fingertip starts-even in slick conditions. With a deep skirt wire entry, the connectors protect against flash-overs and shorts, while the threaded funnel entry guides the wire cleanly into the connector, preventing strand splaying. These connectors are temperature rated up to 221°F (105°C) and cULus listed, making them suitable for various applications. Packaged in a convenient box of 100, they accommodate a range of wire combinations, with a maximum capacity of 1 #10 with 2 #14 & 1 #16 or a minimum of 3 #20. Upgrade your wiring projects with Morris 23074 Screw-On Wire Connectors for fast, safe, and efficient connections.

Screw-On Wire Connectors - Color-Coded Screw On Wire Connectors for quick connections anytime.

• Threaded Funnel Entry Guides Wire Into Connector Cleanly without Strand Splaying
• Deep Skirt Wire Entry Provides Protection from Flash-Over and Shorts
• cULus Listed
• Fixed Precise Conical Wire Spring
• Ribbed-Cap Provides a more Secure Grip and faster fingertip starts even when hands become slippery
• No Pre-Twisting of Conductors is Required – Spring Creates its Own Thread
• Reusable Screw on Wire Connector Threads On or Off splice for fast and easy circuit changes and additions
• Tough, UL 94V-2 Flame Retardant Shell will not crack or break, even when applied to maximum wire combinations under extreme pressure
• Temperature Rated at 221°F (105°C) maximum
