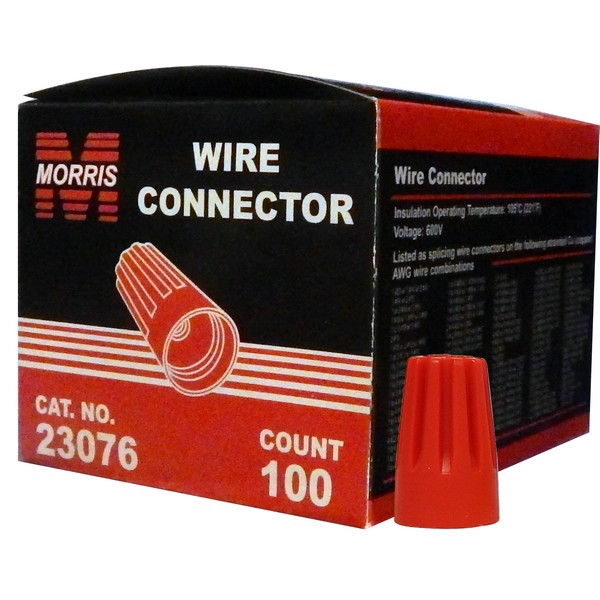

Morris 23076 Color-Coded Screw-On Wire Connectors for Quick Connections

Morris 23076 Screw-On Wire Connectors offer a reliable solution for quick and secure electrical connections. Designed with a fixed precise conical wire spring, these connectors eliminate the need for pre-twisting conductors, as the spring creates its own thread for effortless installation. Ideal for both professionals and knowledgeable homeowners, the connectors are reusable, allowing easy adjustments or additions to your circuits without hassle. Constructed with a tough, UL 94V-2 flame retardant shell, these connectors withstand maximum wire combinations under extreme pressure without cracking or breaking. The ribbed cap ensures a secure grip, facilitating fast fingertip starts-especially useful when working in challenging conditions. With a deep skirt wire entry, they provide added protection against flash-overs and shorts, while the threaded funnel entry guides the wire cleanly into the connector, preventing strand splaying. The Morris 23076 connectors are temperature rated up to 221°F (105°C) and are cULus listed for safety and compliance. Each box contains 100 red connectors, designed to handle a maximum of 600V, and are suitable for 1000V fixtures and signs. These connectors accommodate a range of wire combinations, from a minimum of three #18 wires to a maximum of three #10 wires, making them a versatile choice for various electrical projects.

Screw-On Wire Connectors - Color-Coded Screw On Wire Connectors for quick connections anytime.

• Threaded Funnel Entry Guides Wire Into Connector Cleanly without Strand Splaying
• Deep Skirt Wire Entry Provides Protection from Flash-Over and Shorts
• cULus Listed
• Fixed Precise Conical Wire Spring
• Ribbed-Cap Provides a more Secure Grip and faster fingertip starts even when hands become slippery
• No Pre-Twisting of Conductors is Required – Spring Creates its Own Thread
• Reusable Screw on Wire Connector Threads On or Off splice for fast and easy circuit changes and additions
• Tough, UL 94V-2 Flame Retardant Shell will not crack or break, even when applied to maximum wire combinations under extreme pressure
• Temperature Rated at 221°F (105°C) maximum
