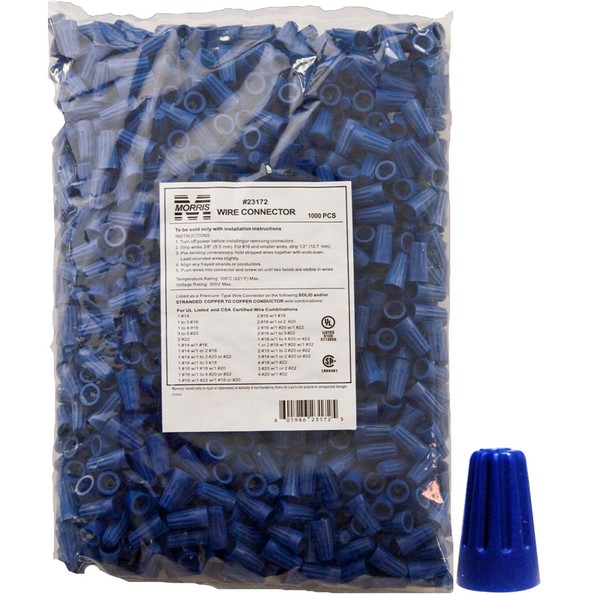

Morris 23172 Color-Coded Screw-On Wire Connectors for Quick Connections

Morris 23172 Screw-On Wire Connectors provide a reliable solution for quick and efficient electrical connections. Designed with a fixed precise conical wire spring, these connectors eliminate the need for pre-twisting conductors, as the spring creates its own thread for a secure grip. This reusable design allows for effortless threading on or off, facilitating fast circuit changes and additions without compromising safety. Crafted from tough, UL 94V-2 flame retardant material, the shell withstands extreme pressure without cracking or breaking, ensuring durability in demanding environments. The ribbed cap enhances grip, allowing users to start connections quickly, even with slippery hands. Additionally, the deep skirt wire entry offers protection against flash-overs and shorts, while the threaded funnel entry guides the wire into the connector cleanly, preventing strand splaying. Rated for a maximum temperature of 221°F (105°C) and capable of handling up to 300V, these connectors are compatible with wire combinations ranging from a minimum of 2 #22 to a maximum of 3 #16. Each connector is cULus listed, providing peace of mind for professional and residential applications alike. Packaged in bulk bags for convenience, the Morris 23172 Screw-On Wire Connectors are a must-have for anyone looking to ensure safe, efficient electrical connections.

Screw-On Wire Connectors - Color-Coded Screw On Wire Connectors for quick connections anytime.

• Threaded Funnel Entry Guides Wire Into Connector Cleanly without Strand Splaying
• Deep Skirt Wire Entry Provides Protection from Flash-Over and Shorts
• cULus Listed
• Fixed Precise Conical Wire Spring
• Ribbed-Cap Provides a more Secure Grip and faster fingertip starts even when hands become slippery
• No Pre-Twisting of Conductors is Required – Spring Creates its Own Thread
• Reusable Screw on Wire Connector Threads On or Off splice for fast and easy circuit changes and additions
• Tough, UL 94V-2 Flame Retardant Shell will not crack or break, even when applied to maximum wire combinations under extreme pressure
• Temperature Rated at 221°F (105°C) maximum

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
