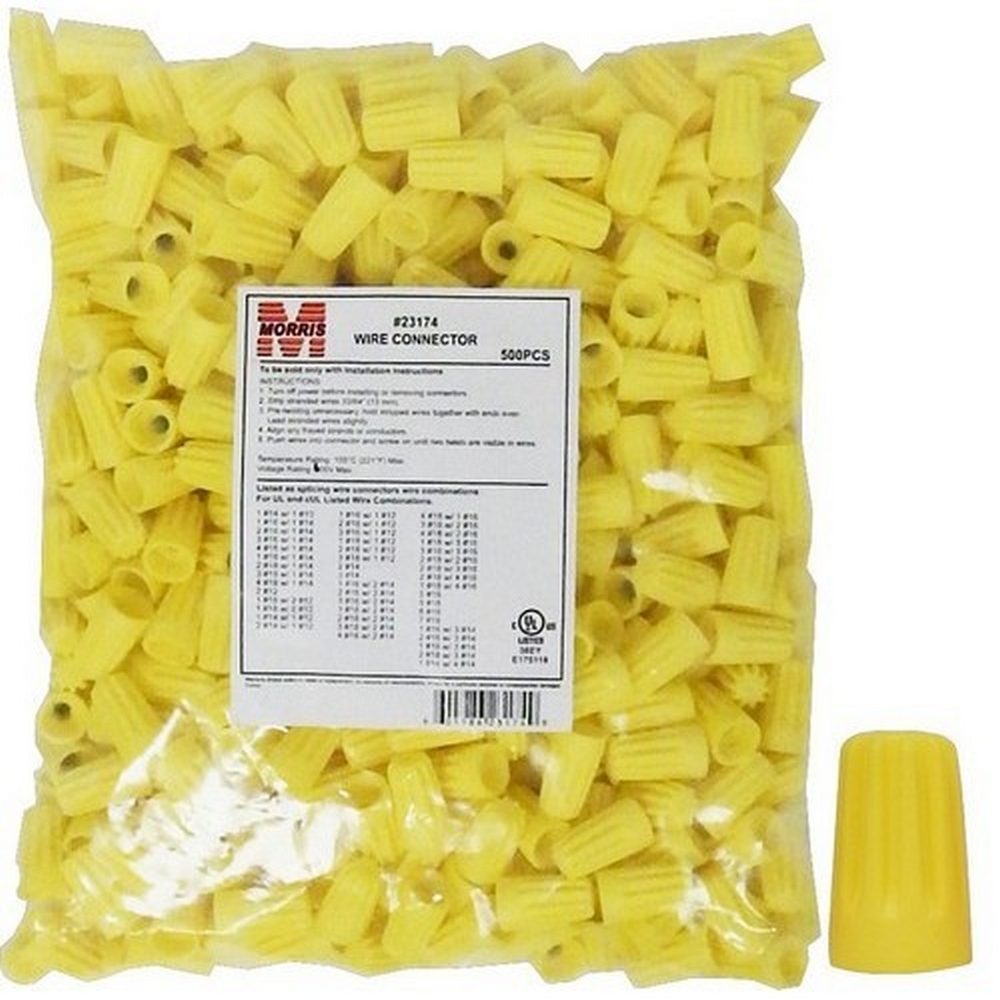

Morris 23174 Color-Coded Screw-On Wire Connectors for Quick Connections

Morris 23174 Screw-On Wire Connectors provide a reliable solution for quick and efficient connections in various electrical applications. Designed with a fixed precise conical wire spring, these connectors eliminate the need for pre-twisting conductors, allowing the spring to create its own thread for secure attachments. This feature not only streamlines installation but also enables easy circuit changes and additions, thanks to the reusable design that threads on and off effortlessly. Crafted with a tough UL 94V-2 flame-retardant shell, these connectors are built to withstand extreme pressure without cracking or breaking, ensuring durability and safety. The ribbed cap enhances grip, allowing for faster fingertip starts, even in slippery conditions. Additionally, the deep skirt wire entry protects against flash-overs and shorts, while the threaded funnel entry guides wires into the connector cleanly without strand splaying. With a maximum temperature rating of 221°F (105°C) and compatibility for wire combinations including one #10 with two #14 and one #16, these connectors are versatile for various setups. Rated for up to 600V and cULus listed, the Morris 23174 Screw-On Wire Connectors are a dependable choice for electrical professionals and knowledgeable homeowners alike.

Screw-On Wire Connectors - Color-Coded Screw On Wire Connectors for quick connections anytime.

• Threaded Funnel Entry Guides Wire Into Connector Cleanly without Strand Splaying
• Deep Skirt Wire Entry Provides Protection from Flash-Over and Shorts
• cULus Listed
• Fixed Precise Conical Wire Spring
• Ribbed-Cap Provides a more Secure Grip and faster fingertip starts even when hands become slippery
• No Pre-Twisting of Conductors is Required – Spring Creates its Own Thread
• Reusable Screw on Wire Connector Threads On or Off splice for fast and easy circuit changes and additions
• Tough, UL 94V-2 Flame Retardant Shell will not crack or break, even when applied to maximum wire combinations under extreme pressure
• Temperature Rated at 221°F (105°C) maximum

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
