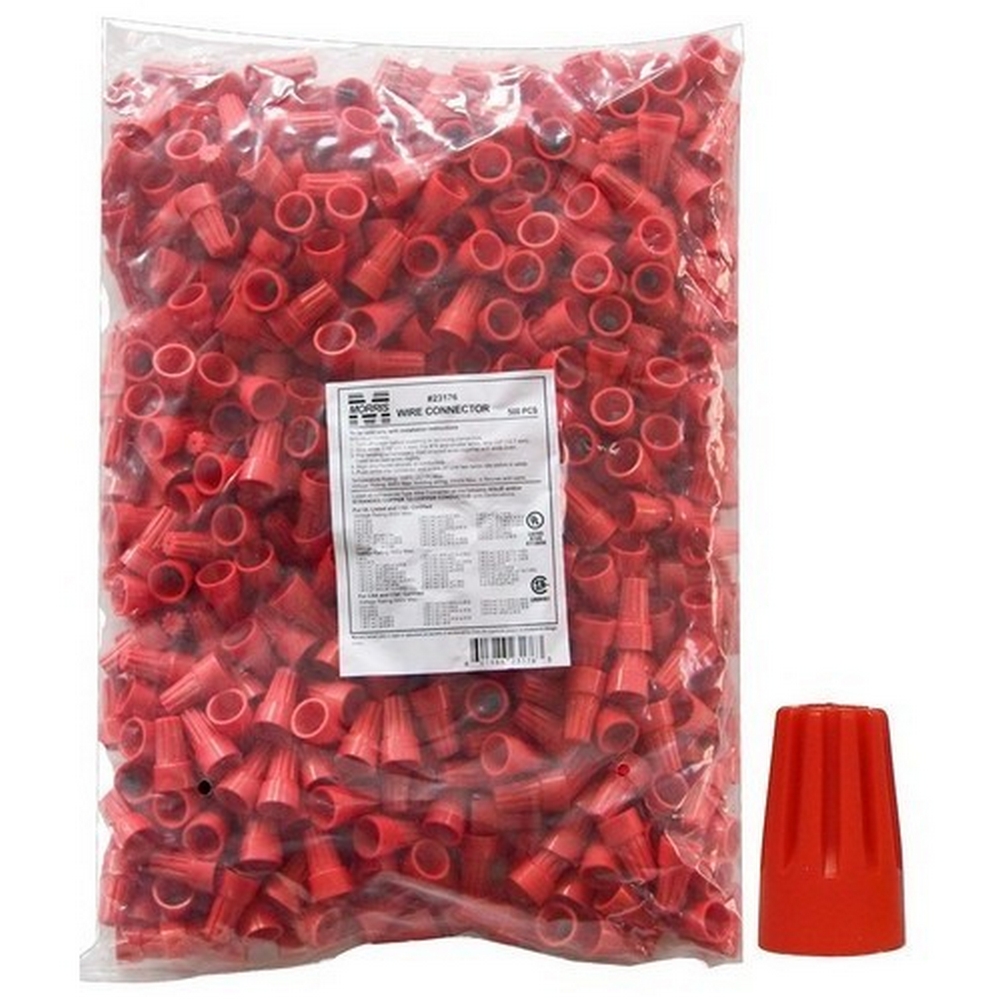

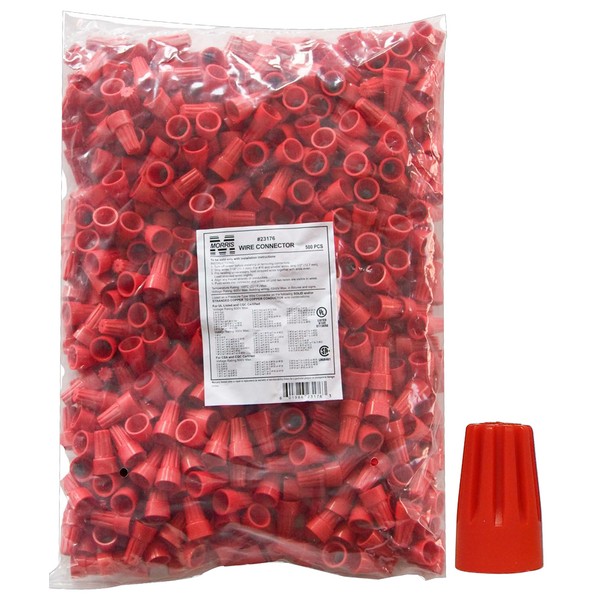

Morris 23176 Color-Coded Screw-On Wire Connectors for Quick Connections

Morris 23176 Screw-On Wire Connectors offer a reliable solution for quick and efficient electrical connections. Designed with a fixed precise conical wire spring, these connectors eliminate the need for pre-twisting conductors, allowing the spring to create its own thread for seamless installation. The reusable design enables effortless threading on or off the splice, facilitating fast circuit changes and additions as needed. Constructed with a tough, UL 94V-2 flame retardant shell, these connectors withstand extreme pressure without cracking or breaking, ensuring durability in any application. The ribbed cap enhances grip, allowing for secure handling even when working with slippery hands. Additionally, the deep skirt wire entry provides crucial protection against flash-overs and shorts, while the threaded funnel entry guides wires into the connector cleanly, preventing strand splaying. Morris 23176 connectors are temperature rated at a maximum of 221°F (105°C) and are cULus listed, ensuring safety and reliability. They support wire combinations ranging from a maximum of three #10 to a minimum of three #18. With a voltage rating of up to 600V, these connectors are ideal for various fixtures and signs. Packaged in a bagged bulk pack, they are ready for your next project.

Screw-On Wire Connectors - Color-Coded Screw On Wire Connectors for quick connections anytime.

• Threaded Funnel Entry Guides Wire Into Connector Cleanly without Strand Splaying
• Deep Skirt Wire Entry Provides Protection from Flash-Over and Shorts
• cULus Listed
• Fixed Precise Conical Wire Spring
• Ribbed-Cap Provides a more Secure Grip and faster fingertip starts even when hands become slippery
• No Pre-Twisting of Conductors is Required – Spring Creates its Own Thread
• Reusable Screw on Wire Connector Threads On or Off splice for fast and easy circuit changes and additions
• Tough, UL 94V-2 Flame Retardant Shell will not crack or break, even when applied to maximum wire combinations under extreme pressure
• Temperature Rated at 221°F (105°C) maximum
